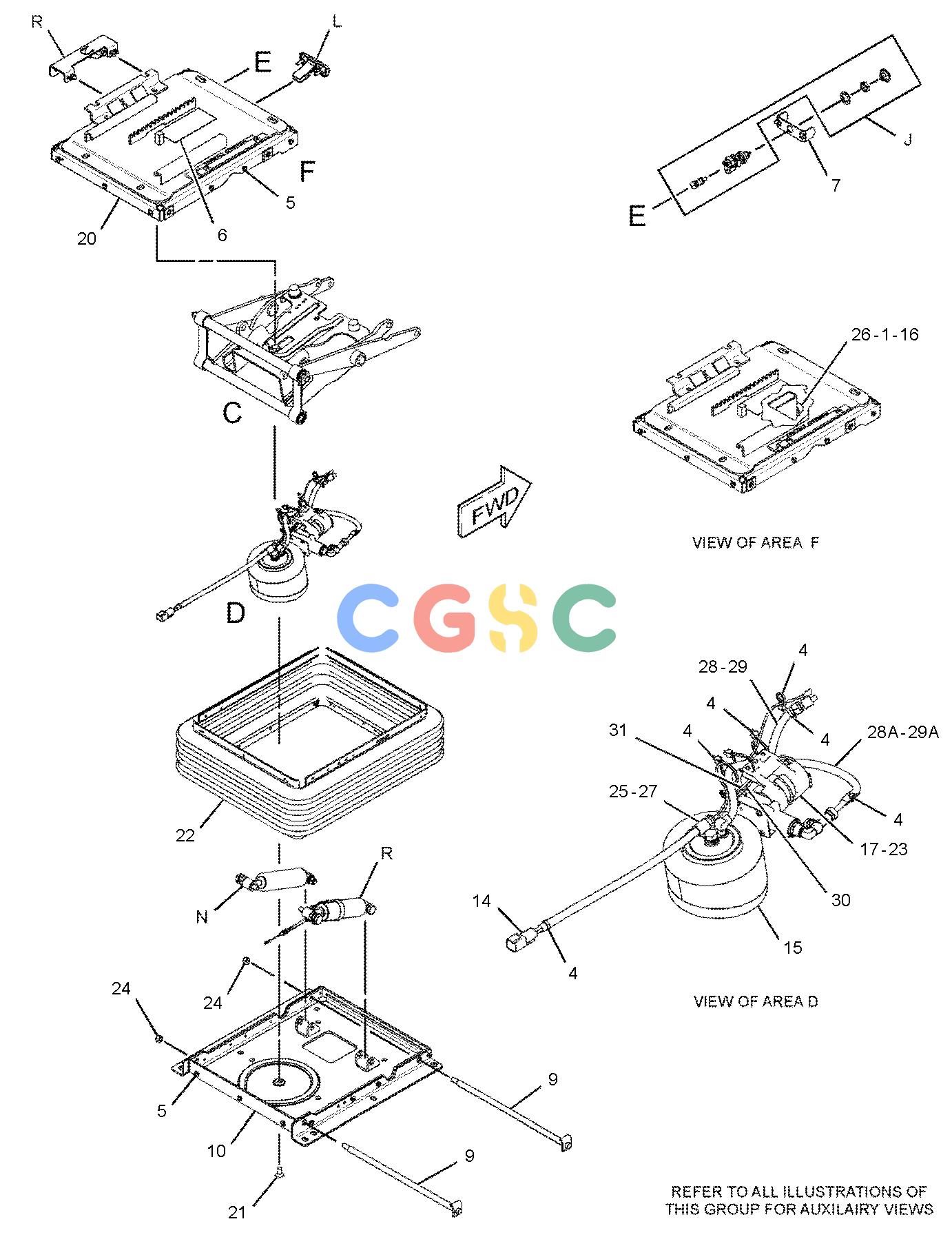

| 1. | 3P-9900 | [5] | WASHER(10.5X30X3-MM THK) | |
| 2. | 4B-4278 | [2] | WASHER(10.2X20.5X1.6-MM THK) | |
| 3. | 4V-8577 | [12] | BEARING | |
| 4. | 8L-8413 | [10] | STRAP-CABLE(WHITE) | |
| 5. | 101-0003 | [26] | FASTENER | |
| 6. | 145-0326 | [1] | FILM-INSTRUCTION(SEAT ADJUSTMENT) | |
| 7. | 164-1234 | [1] | PLATE | |
| 8. | 186-5107 | [2] | SCREW-DRIVE(NO 8-16X1.25-IN) | |
| 9. | 192-7752 | [4] | SHAFT AS | |
| 10. | 192-7755 | [1] | HOUSING AS(LOWER) | |
| 11. | 192-7767 | [1] | SCISSORS AS | |
| 12. | 192-7783 | [1] | TOGGLE AS(WIDE) | |
| 13. | 192-7787 | [1] | TOGGLE AS(NARROW) | |
| 14. | 192-7805 | [1] | HARNESS AS-VALVE(SEAT AIR COMPRESSOR) | |
| | 211-5358E | | CONDUIT-FLEXIBLE(64-CM) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-4571 | [2] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| 15. | 192-7810 | [1] | SPRING AS-AIR | |
| | 5P-4423 | [1] | ELBOW | |
| | 163-1135 | [1] | SPRING | |
| 16. | 192-7820 | [3] | BUMPER | |
| 17. | 370-9894 | [1] | COMPRESSOR AS | |
| 18. | 314-5274 | [1] | SHAFT(INNER) | |
| 19. | 314-5275 | [1] | SHAFT(OUTER) | |
| 20. | 347-8763 | [1] | HOUSING AS | |
| 21. | 108-4311 | [1] | SCREW-MACHINE(3/8-16X0.75-IN) | |
| 22. | 192-7795 | [1] | BOOT | |
| 23. | 372-2158 | [1] | BRACKET-MOUNTING | |
| 24. | 2K-4973 | [8] | LOCKNUT(3/8-16-THD) | |
| 25. | 4D-7794 | [1] | CLIP | |
| 26. | 5C-2890M | [3] | NUT(M6X1-THD) | |
| 27. | 8T-9371 | [1] | BOLT(3/8-16X0.5-IN) | |
| 28. | 5P-6010D | | TUBE(0.3-M) | |
| 28A. | 5P-6010D | | TUBE(0.4-M) | |
| 29. | 211-5358E | | CONDUIT-FLEXIBLE(22.3-CM) | |
| 29A. | 211-5358E | | CONDUIT-FLEXIBLE(37.8-CM) | |
| 30. | 387-0314 | [1] | WIRE AS(16-GA, ORANGE) | |
| 31. | 387-0317 | [1] | WIRE AS(16-GA, BLACK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 192-7799 | [1] | KIT-AIR VALVE & SWITCH(SEAT) | |
| | | | (INCLUDES PARTS MARKED J IN THE GRAPHICS) |
| | 213-5170 | [1] | KIT-SEAT ADJUSTER(SEAT ADJUSTMENT) | |
| | | | (INCLUDES BOLTS, NUTS, ROD, INDICATOR ARM, HOUSING, LOCKNUT & PARTS MARKED L IN THE GRAPHICS) |
| | 192-7848 | [1] | KIT-SHOCK ABSORBER(SUSPENSION SEAT) | |
| | | | (INCLUDES SHOCK ABSORBER, BEARINGS, WASHERS, BOLTS, LOCKNUT, LOCKWASHER & PARTS MARKED N IN THE GRAPHICS) |
| | 212-7779 | [1] | KIT-SHOCK ABSORBER(SUSPENSION SEAT) | |
| | | | (INCLUDES LOCKNUTS, BALL, LOCKWASHER, STRAP, SPRING, CLAMP, ADJUSTERS, BOLTS, BEARINGS, WASHERS, SHOCK ABSORBER, |
| | | | BRACKETS, PULLEY GP, CABLE AS, KNOB & PARTS MARKED R IN THE GRAPHICS) |
| | 211-9294 | [1] | KIT-TETHER(SEAT) | |
| | | | (INCLUDES TETHERS) |
| | 212-7783J | [1] | KIT-PULLEY | |
| | | | (INCLUDES PIN, PULLEY, RETAINING RING, SETSCREW & SPRING) |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | J | | KIT MARKED J SERVICES 212-7779 KIT-SHOCK ABSORBER |
| | M | | METRIC PART |
