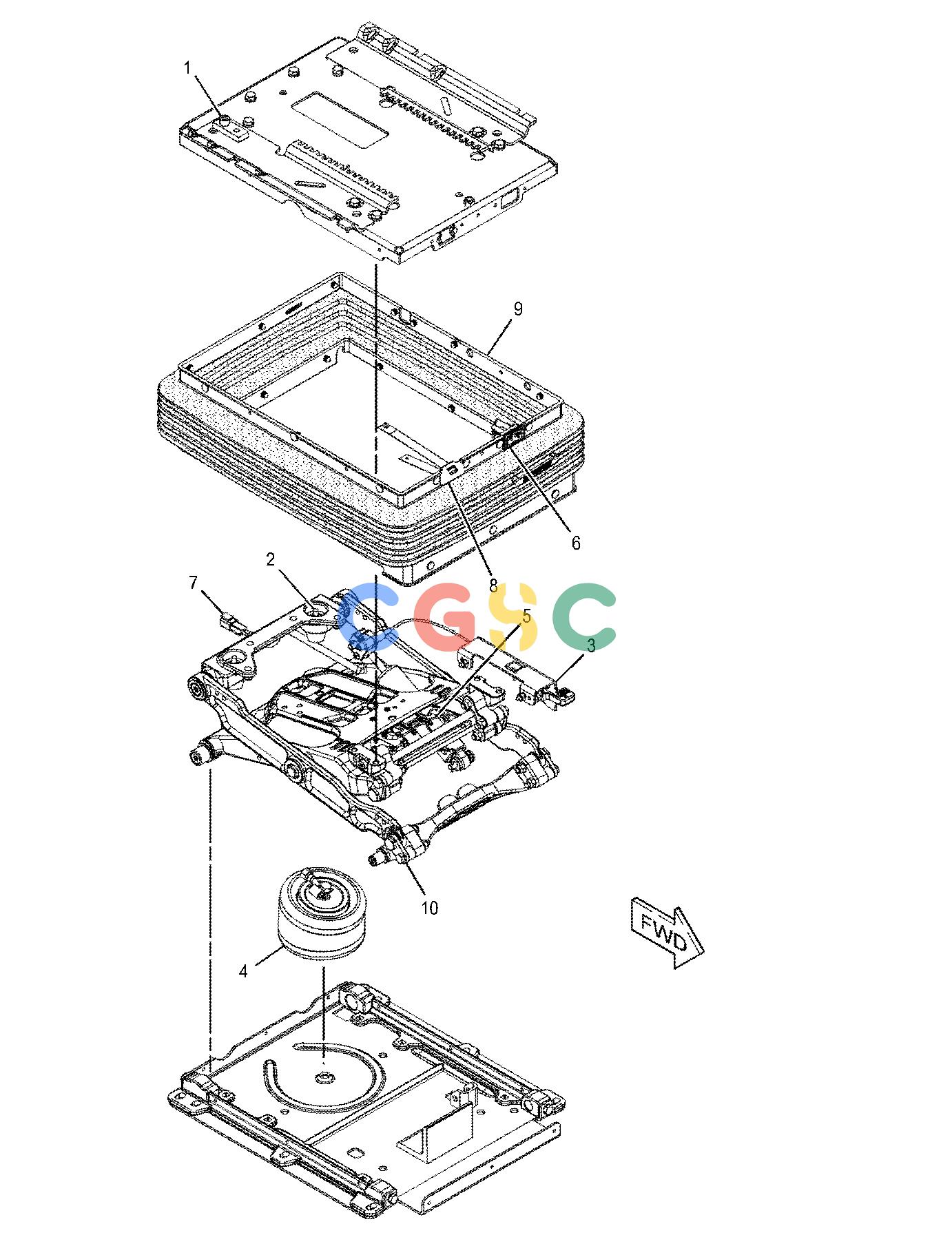

卡特零件查询（725） 355-6681: SUSPENSION GP-SEAT
广数供应链运营团队, 14 02月, 2025，浏览：
244 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 169-7380 | [1] | BOLT-SOCKET HEAD(3/8-16X0.375-IN) | |
| 2. | 370-8064 | [1] | KIT-BUMPER(SEAT) | |
| | | | (INCLUDES BUMPERS, NUTS & LOCKNUTS) |
| 3. | 370-8065 | [1] | KIT-DAMPER(SEAT) | |
| | | | (INCLUDES BOLTS, LOCKNUTS, CABLE AS, KNOB, SPRING, BALL, COTTERS & SHOCK ADJUSTER) |
| 4. | 370-8066 | [1] | KIT-AIR SPRING(SEAT) | |
| | | | (INCLUDES BOLT, CLIP, ELBOW, SCREW & SPRING) |
| 5. | 370-8067 | [1] | KIT-COMPRESSOR(SEAT) | |
| | | | (INCLUDES COMPRESSOR, BRACKET & SCREWS) |
| 6. | 370-8068 | [1] | KIT-SWITCH(AIR) | |
| | | | (INCLUDES SWITCH AS) |
| 7. | 467-8080Y | [1] | WIRING GP-SEAT | |
| 8. | 370-8070 | [1] | KIT-RIDE INDICATOR(SEAT) | |
| | | | (INCLUDES RIDE & POP RIVET) |
| 9. | 352-4796 | [1] | KIT-BOOT(SEAT) | |
| | | | (INCLUDES BOOT & FASTENERS) |
| 10. | 370-8156 | [1] | KIT-BEARING(SEAT) | |
| | | | (INCLUDES BUSHINGS, BOLTS, TOGGLES, LOCKNUTS & WASHERS) |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | Y | | SEPARATE ILLUSTRATION |
