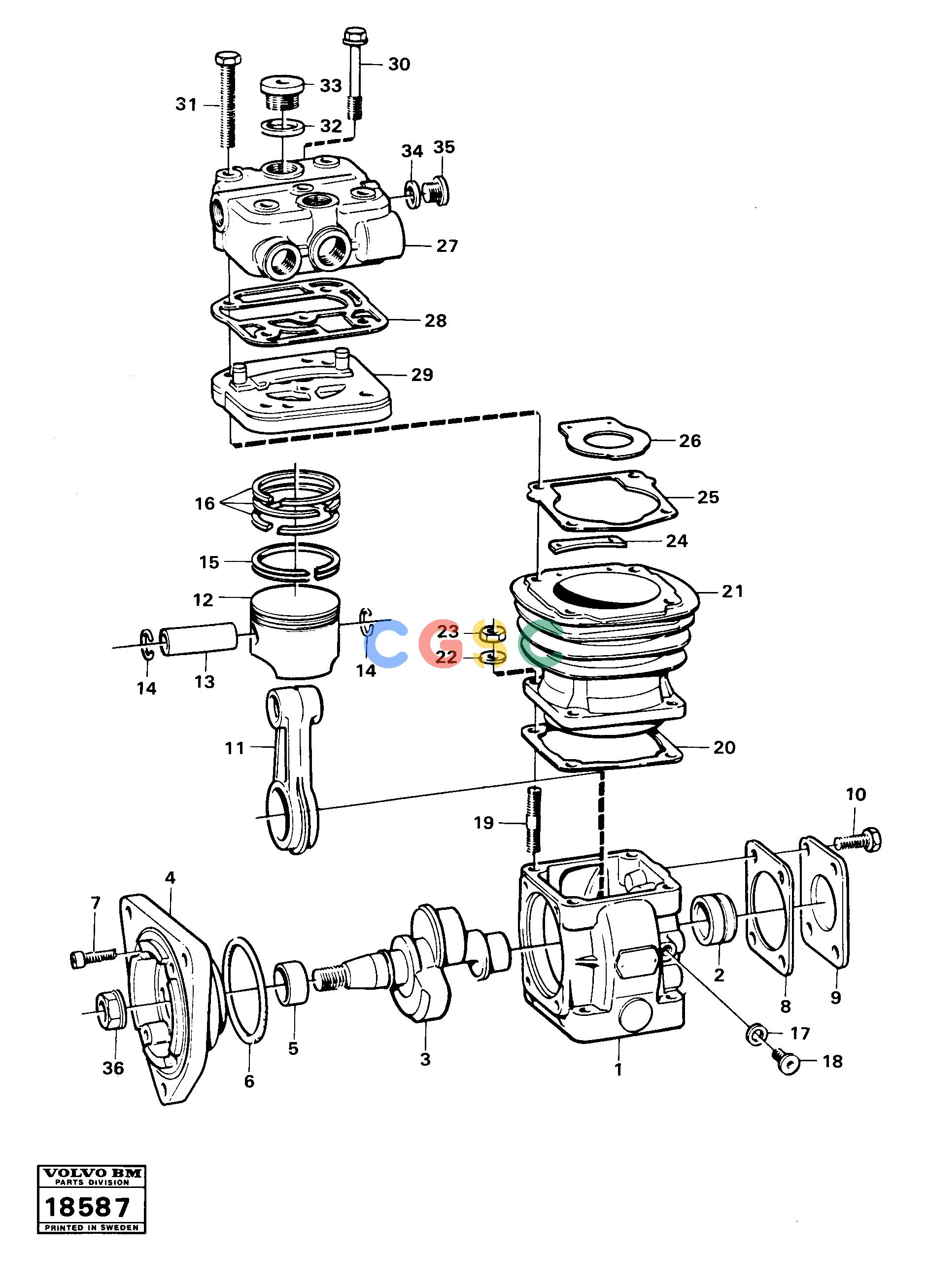

沃尔沃零件查询A25 VOLVO BM Air compressorVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
994 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
|
[0001] |
Bearing flange
|
|
| 5. |
VOE1697092
|
[0001] |
Bushing
|
|
| 6. |
VOE1697093
|
[0001] |
O-ring
|
|
| 7. |
VOE1697090
|
[0004] |
Screw
|
|
| 8. |
VOE1697100
|
[0001] |
Gasket
|
|
| |
VOE6772239
|
|
Compressor
|
|
| 9. |
|
[0001] |
Cover
|
|
| 10. |
VOE959616
|
[0004] |
Hexagon screw
|
|
| 11. |
VOE1697095
|
[0001] |
Connecting rod
|
|
| 12. |
VOE11992390
|
[0001] |
Piston
|
|
| 13. |
|
[0001] |
Piston pin
|
|
| 14. |
VOE1697108
|
[0002] |
Lock ring
|
|
| 15. |
VOE1697109
|
[0001] |
Piston ring
|
|
| 16. |
VOE1697110
|
[0002] |
Piston ring
|
|
| 17. |
|
[0001] |
Gasket
|
|
| 18. |
|
[0001] |
Plug
|
|
| 1. |
|
[0001] |
Housing
|
|
| 19. |
VOE1697101
|
[0004] |
Stud
|
|
| 20. |
VOE1697103
|
[0001] |
Gasket
|
|
| 21. |
VOE1697111
|
[0001] |
Cylinder
|
|
| 22. |
VOE13941907
|
[0004] |
Washer
|
|
| 23. |
VOE955782
|
[0004] |
Hexagon nut
|
|
| 24. |
|
[0001] |
Gasket
|
|
| 25. |
|
[0001] |
Gasket
|
|
| 26. |
VOE11992370
|
[0001] |
Disc
|
|
| 27. |
VOE1698022
|
[0001] |
Cylinder head
|
|
| 28. |
|
[0001] |
Gasket
|
|
| 2. |
VOE1697102
|
[0001] |
Bushing
|
|
| 29. |
VOE1698023
|
[0001] |
Valve Plate
|
|
| 30. |
VOE1697112
|
[0001] |
Screw
|
|
| 31. |
VOE1697105
|
[0004] |
Screw
|
|
| 32. |
VOE7018844
|
[0002] |
Washer
|
|
| 33. |
|
[0002] |
Plug
|
|
| 34. |
VOE13947627
|
[0001] |
Plane gasket
|
|
| 35. |
|
[0001] |
Plug
|
|
| 36. |
VOE1697091
|
[0001] |
Nut
|
|
| |
VOE1697113
|
[0001] |
Gasket kit
|
|
| 3. |
VOE1697094
|
[0001] |
Crankshaft
|
|
