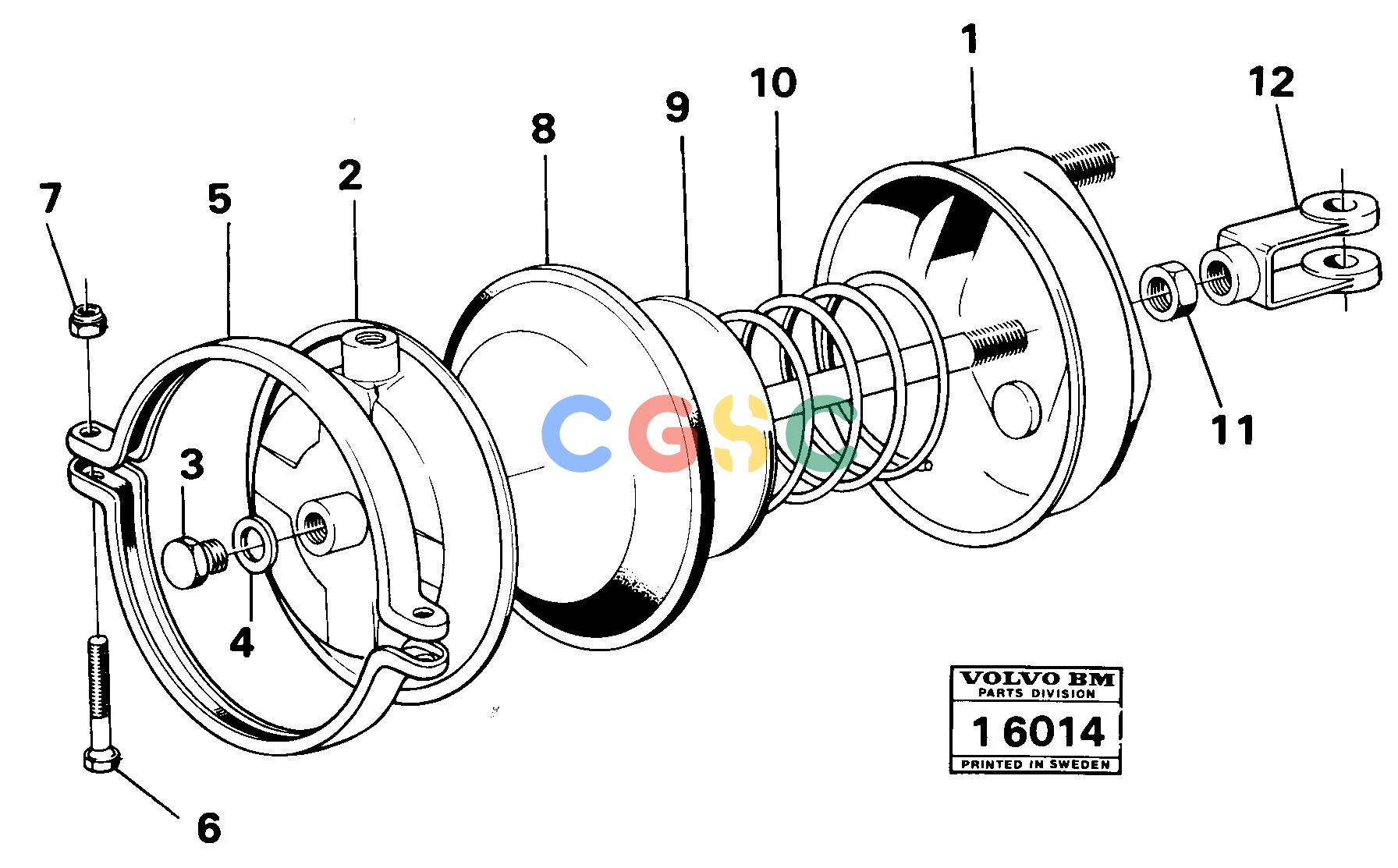

沃尔沃零件查询A25 VOLVO BM Brake cylinder 99617VOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
664 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 5. |
|
[1] |
Clamp
|
|
| 6. |
VOE1518907
|
[2] |
Screw
|
|
| 7. |
VOE1518908
|
[2] |
Nut
|
|
| 8. |
VOE6621087
|
[1] |
Diaphragm
|
|
| |
VOE1582431
|
[1] |
Brake cylinder
|
|
| 9. |
VOE325868
|
[1] |
Push rod
|
|
| 10. |
VOE325869
|
[1] |
Spring
|
|
| |
|
[1] |
Valve
|
|
| 11. |
VOE940154
|
[1] |
Nut
|
|
| 12. |
VOE325200
|
[1] |
Fork
|
|
| 13. |
VOE7014545
|
[1] |
Bolt
|
|
| 14. |
VOE13907851
|
[1] |
Cotter Pin
|
|
| 1. |
|
[1] |
Cover
|
|
| 2. |
|
[2] |
Cover
|
|
| 3. |
VOE960631
|
[1] |
Plug
|
|
