神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (01-032) - TURBO-CHARGER (INNER PARTS) P/N ME047102 Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
178 次

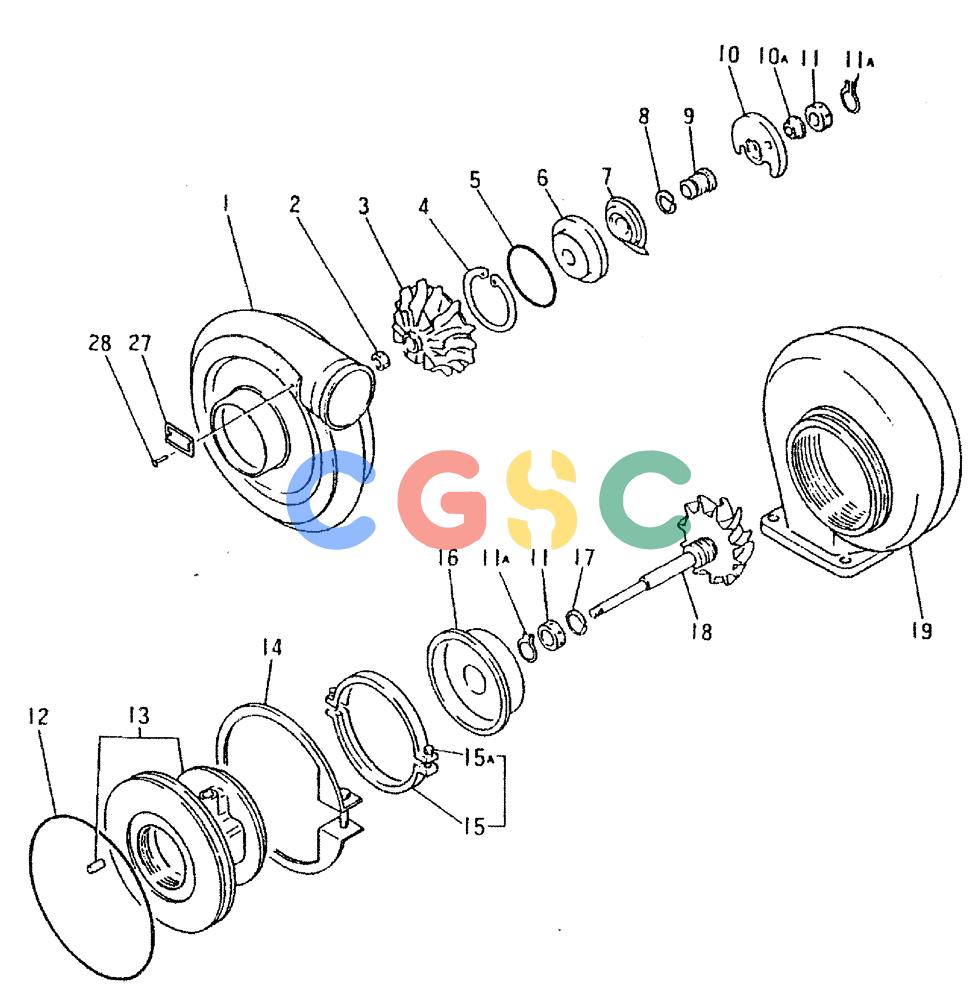

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-28. | VAME047102 | [1] | TURBOCHARGER | KOBTURBOCHARGER ASSY, TD07-22A, 4917500418 |
| 1. | VAME719975 | [1] | COVER, COMPR, 4917550300 | |
| 2. | VAME719861 | [1] | LOCK NUT | KOB4917442200 Superseded by part number: 134956A1 |
| 3. | VAME719979 | [1] | WHEEL, COMPR, 4917544300 | |
| 4. | VAME719828 | [1] | SNAP RING | KOB4917423200 |
| 5. | VAME719825 | [1] | O-RING | KOB4917422600 Superseded by part number: 134964A1 |
| 6. | VAME719833 | [1] | INSERT | KOB4917422510 |
| 7. | VAME719822 | [1] | DEFLECTOR | KOB4917422200 |
| 8. | VAME719864 | [1] | PISTON RING | KOB4917723100 Superseded by part number: 134944A1 |
| 9. | VAME719866 | [1] | SLEEVE | KOBTHRUST, 4917442130 |
| 10. | VAME719031 | [1] | BEARING, THRUST, 4918821510 | |
| 10A. | VAME719056 | [1] | THRUST RING | KOB4918842400 |
| 11. | VAME719819 | [2] | BEARING, 49174241110 | |
| 11A. | VAME719823 | [2] | SNAP RING | KOB4917422300 Superseded by part number: VA4917422300 |
| 12. | VAME719826 | [1] | O-RING | KOB4917422700 Superseded by part number: 134965A1 |
| 13. | VAME719942 | [1] | BEARING HOUSING & PIN ASSY, 4917525100 | |
| 14. | VAME719829 | [1] | SNAP RING | KOBASSY, 4917423300 |
| 15-15A. | VAME719810 | [1] | COUPLING | KOB4917414000 |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONCOUPLING |
| 15A. | VAME719571 | [1] | KIT | KOBBOLT & NUT KIT, 4916814020 |
| 16. | VAME719940 | [1] | PLATE, TURBINE BACK, 4917519100 | |
| 17. | VAME719832 | [1] | PISTON RING SET | KOB4918123100 Superseded by part number: 134945A1 |
| 18. | VAME719679 | [1] | SHAFT & TURBINE WHEEL ASSY, 4917530300 | |
| 19. | VAME719934 | [1] | HOUSING, TURBINE, 4917510500 | |
| 27. | VAME719625 | [1] | NAME PLATE, 4916855200 | |
| 28. | VAME719761 | [2] | RIVET, SCREW, 2 X 4.8, 0066502048 | |
