神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (01-033) - TURBO-CHARGER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
846 次

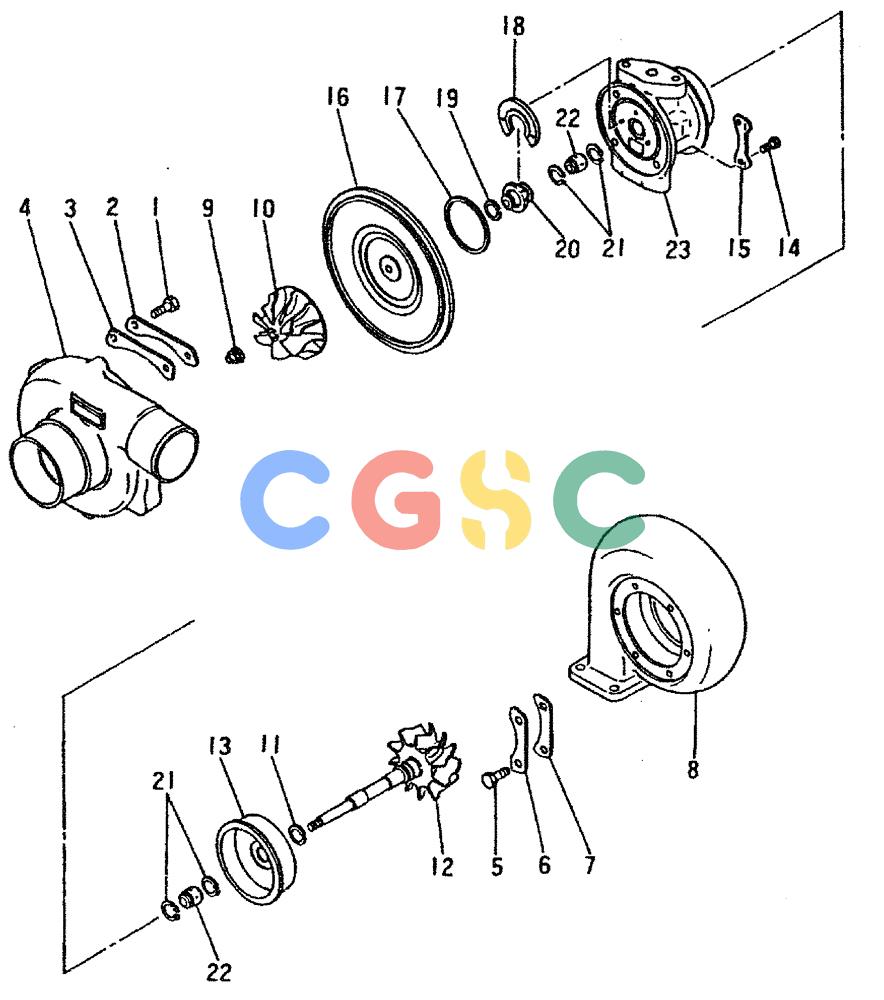

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-23. | VAME070486 | [1] | TURBOCHARGER | KOBCHARGER, T04B |
| 1. | VAME070531 | [6] | BOLT | KOB |
| 2. | VAME070532 | [3] | LOCKING PLATE | KOB |
| 3. | VAME070533 | [3] | CLAMP | KOB |
| 4. | VAME070551 | [1] | HOUSING,COMPRESSOR | HOUSING,COMPRESSOR |
| 5. | VAME070534 | [6] | BOLT | KOB |
| 6. | VAME070535 | [3] | PLATE | KOB |
| 7. | VAME070536 | [1] | CLAMP | KOB |
| 8. | VAME070552 | [1] | HOUSING | KOB |
| 9. | VAME070537 | [1] | LOCK NUT | KOB |
| 10. | VAME070554 | [1] | WHEEL | KOB |
| 11. | VAME070538 | [1] | PISTON RING | KOB |
| 12. | VAME070555 | [1] | TURBINE | KOBASSY |
| 13. | VAME070539 | [1] | WHEEL SHROUD | WHEEL SHROUD |
| 14. | VAME070540 | [4] | BOLT | BOLT |
| 15. | VAME070541 | [2] | LOCKING PLATE | KOB |
| 16. | VAME070542 | [1] | PLATE | KOB |
| . . | VAME070550 | [1] | PLATE, NAME | |
| 17. | VAME070543 | [1] | SEALING RING | KOBSEALRING |
| 18. | VAME070544 | [1] | BEARING | KOBTHRUST |
| 19. | VAME070545 | [1] | PISTON RINGS KIT | KOB |
| 20. | VAME070546 | [1] | COLLAR | KOBTHRUST Superseded by part number: VAME078624 |
| 21. | VAME070547 | [4] | SNAP RING | KOB |
| 22. | VAME070548 | [2] | BEARING | KOB |
| 23. | VAME070549 | [1] | MOTOR HOUSING | KOB |
