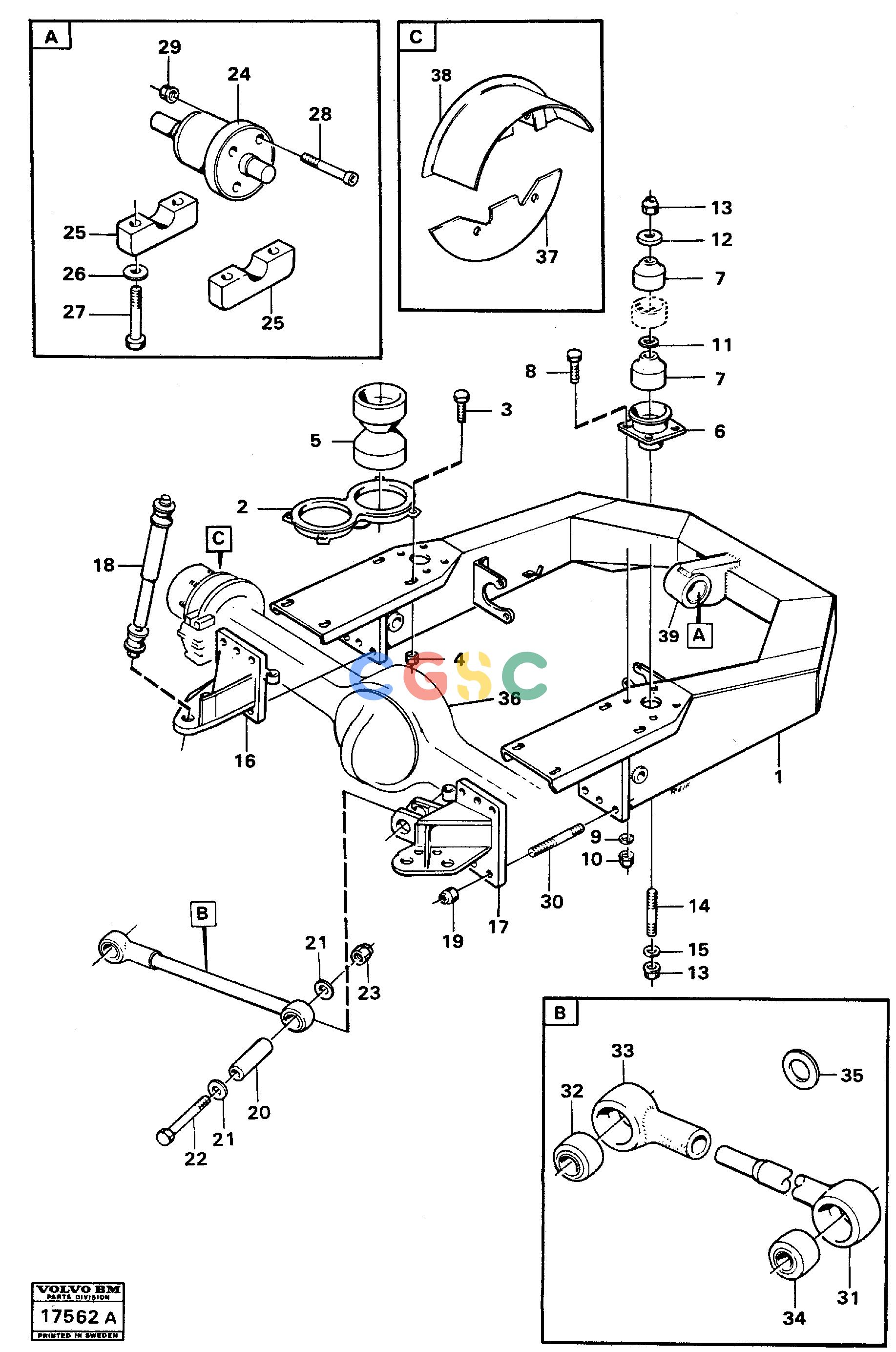

沃尔沃零件查询A25 VOLVO BM Front axle suspensionVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
201 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE11050727
|
[0004] |
Rubber spring
|
|
| 6. |
VOE4737113
|
[0002] |
Attaching plate
|
|
| 7. |
VOE4737110
|
[0004] |
Buffer
|
|
| 8. |
VOE13970981
|
[0008] |
Hexagon screw
|
|
| 9. |
VOE60110353
|
[0010] |
Washer
|
|
| 1. |
VOE4941931
|
[0001] |
Stay
|
|
| 10. |
VOE971099
|
[0010] |
Flange lock nut
|
|
| 11. |
VOE955906
|
[2] |
Plain washer
|
|
| 12. |
VOE4737186
|
[2] |
Washer
|
|
| 13. |
VOE963111
|
[4] |
Lock nut
|
|
| 14. |
VOE4737156
|
[2] |
Stud
|
|
| 15. |
VOE4737157
|
[2] |
Washer
|
|
| 16. |
VOE4941201
|
[1] |
Shock absorber anchorage
|
H
|
| 17. |
VOE4941200
|
[1] |
Shock absorber anchorage
|
V
|
| 18. |
VOE4737041
|
[4] |
Shock absorber
|
|
| 19. |
VOE13976433
|
[12] |
Flange nut
|
|
| 2. |
VOE4821426
|
[0002] |
Spring anchorage
|
|
| 20. |
VOE4737412
|
[2] |
Sleeve
|
|
| 21. |
VOE4737411
|
[4] |
Washer
|
|
| 22. |
VOE955380
|
[2] |
Hexagon screw
|
|
| 23. |
VOE963110
|
[2] |
Lock nut
|
|
| 24. |
VOE4941209
|
[1] |
Bearing
|
|
| |
VOE945489
|
[1] |
Retaining ring
|
|
| 25. |
VOE11055534
|
[2] |
Cap
|
|
| 26. |
VOE11055609
|
[4] |
Plain washer
|
|
| 27. |
VOE997475
|
[4] |
Hexagon screw
|
|
| 28. |
VOE970976
|
[2] |
Hexagon screw
|
|
| 29. |
VOE13971098
|
[4] |
Flange nut
|
|
| 3. |
VOE946329
|
[0008] |
Flange screw
|
|
| 30. |
VOE11054328
|
[0012] |
Stud
|
|
| |
VOE4737410
|
[0001] |
Cross Beam
|
|
| 31. |
VOE4823496
|
[0001] |
Stay
|
|
| 32. |
VOE4737395
|
[0001] |
Bushing
|
|
| 33. |
VOE4823497
|
[0001] |
Stay
|
|
| 34. |
VOE4737395
|
[0001] |
Bushing
|
|
| 4. |
VOE13971098
|
[0012] |
Flange nut
|
|
| 35. |
VOE7063118
|
[REQ] |
Shim
|
|
| 36. |
|
[0001] |
Front axle
|
SEE GROUP 46
|
| 37. |
VOE4941662
|
[0002] |
Protecting plate
|
|
| |
VOE13971098
|
[0008] |
Flange nut
|
|
| 38. |
VOE11060917
|
[0002] |
Protecting plate
|
|
| 39. |
VOE4941922
|
[0001] |
Bearing housing
|
|
