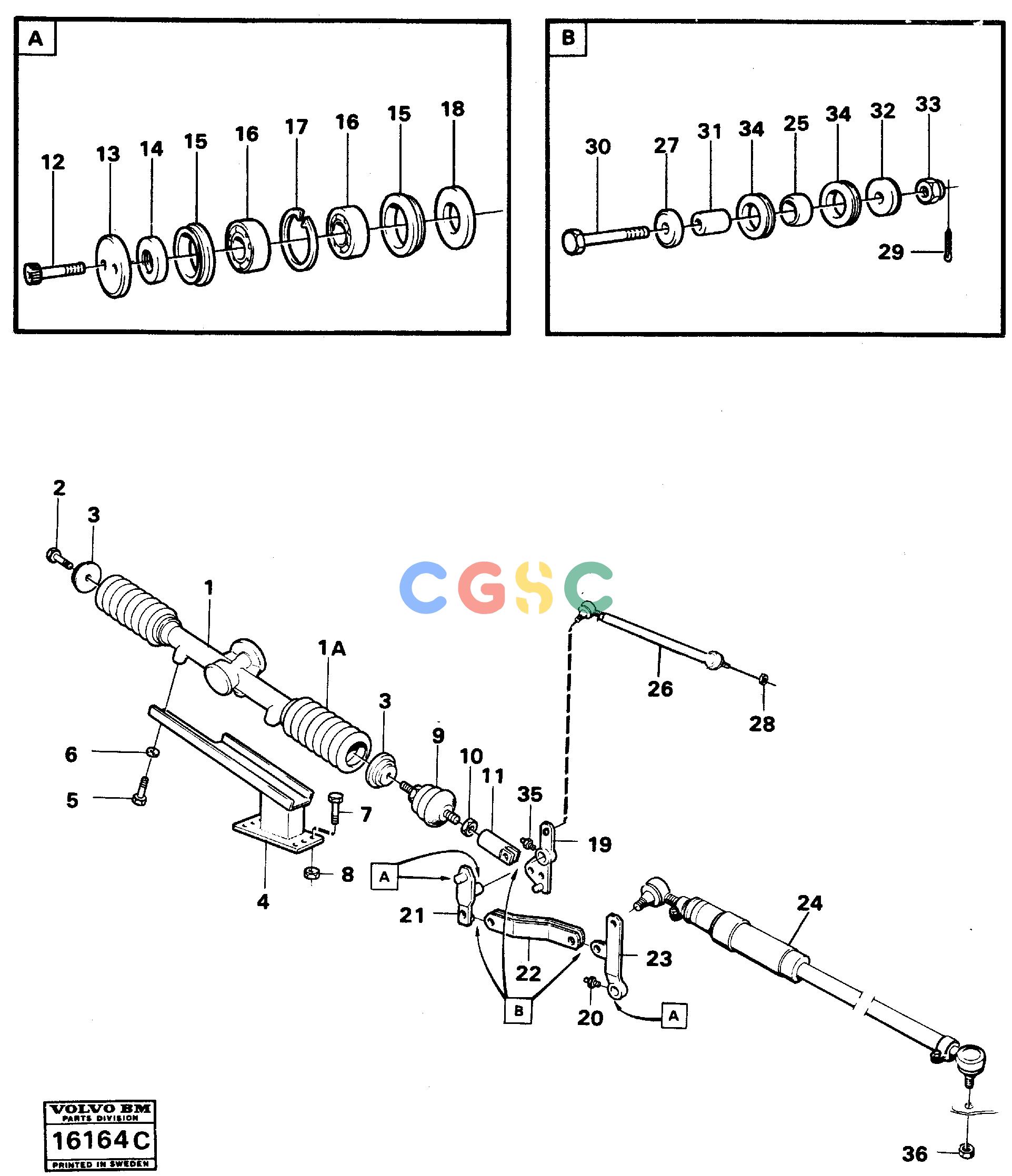

沃尔沃零件查询A25 VOLVO BM Steering linkageVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
257 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 25. |
VOE4823801
|
[0003] |
Spherical plain bearing
|
|
| 26. |
VOE11052044
|
[0001] |
Link arm
|
|
| 27. |
VOE925760
|
[0001] |
Washer
|
|
| 28. |
VOE971081
|
[0001] |
Hexagon nut
|
|
| 29. |
VOE907838
|
[0004] |
Split pin
|
|
| 30. |
VOE4821023
|
[0001] |
Screw
|
|
| |
VOE4965525
|
[0002] |
Screw
|
|
| 4. |
VOE4965350
|
[0001] |
Bracket
|
|
| 31. |
VOE4823777
|
[0001] |
Bolt
|
|
| 32. |
VOE925760
|
[0001] |
Washer
|
|
| 33. |
VOE945988
|
[0002] |
Lock nut
|
|
| 34. |
VOE4823800
|
[0006] |
Sealing ring
|
|
| 35. |
VOE914170
|
[0001] |
Lubricating nipple
|
|
| 36. |
VOE945988
|
[0002] |
Lock nut
|
|
| |
|
|
Valve
|
|
| |
VOE929198
|
[0002] |
Pin
|
|
| |
VOE60113600
|
[0004] |
Spacer sleeve
|
|
| 5. |
VOE949227
|
[0002] |
Hexagon screw
|
|
| 1. |
VOE4737691
|
[0001] |
Rack gear
|
|
| 6. |
VOE976945
|
[0002] |
Washer
|
|
| 7. |
VOE13970974
|
[0004] |
Hexagon screw
|
|
| 8. |
VOE971099
|
[0004] |
Flange lock nut
|
|
| 9. |
VOE4823849
|
[0001] |
Ball joint
|
|
| 10. |
VOE4823850
|
[0001] |
Nut
|
|
| 11. |
VOE4965598
|
[0001] |
Yoke
|
|
| 12. |
VOE4821024
|
[0006] |
Screw
|
|
| 13. |
VOE4737654
|
[0003] |
Washer
|
|
| 1A. |
VOE11061642
|
[0002] |
Bellows
|
|
| 14. |
VOE961391
|
[0003] |
Disc spring
|
|
| 15. |
VOE4737693
|
[0006] |
Sealing ring
|
|
| 16. |
VOE183578
|
[0006] |
Roller bearing
|
|
| |
VOE183578
|
[0006] |
Roller bearing
|
|
| 17. |
VOE914532
|
[0003] |
Retaining ring
|
|
| 18. |
VOE4965363
|
[0001] |
Spacer
|
|
| 19. |
VOE4965340
|
[0001] |
Hand lever
|
|
| 20. |
VOE914167
|
[0001] |
Lubricating nipple
|
|
| 2. |
VOE4823797
|
[0001] |
Screw
|
|
| 21. |
VOE4965338
|
[0001] |
Hand lever
|
|
| 22. |
|
[0001] |
Link
|
|
| 23. |
VOE4965025
|
[0001] |
Hand lever
|
|
| 24. |
VOE4941994
|
[0001] |
Steering rod
|
|
| 3. |
VOE4823787
|
[0002] |
Washer
|
|
