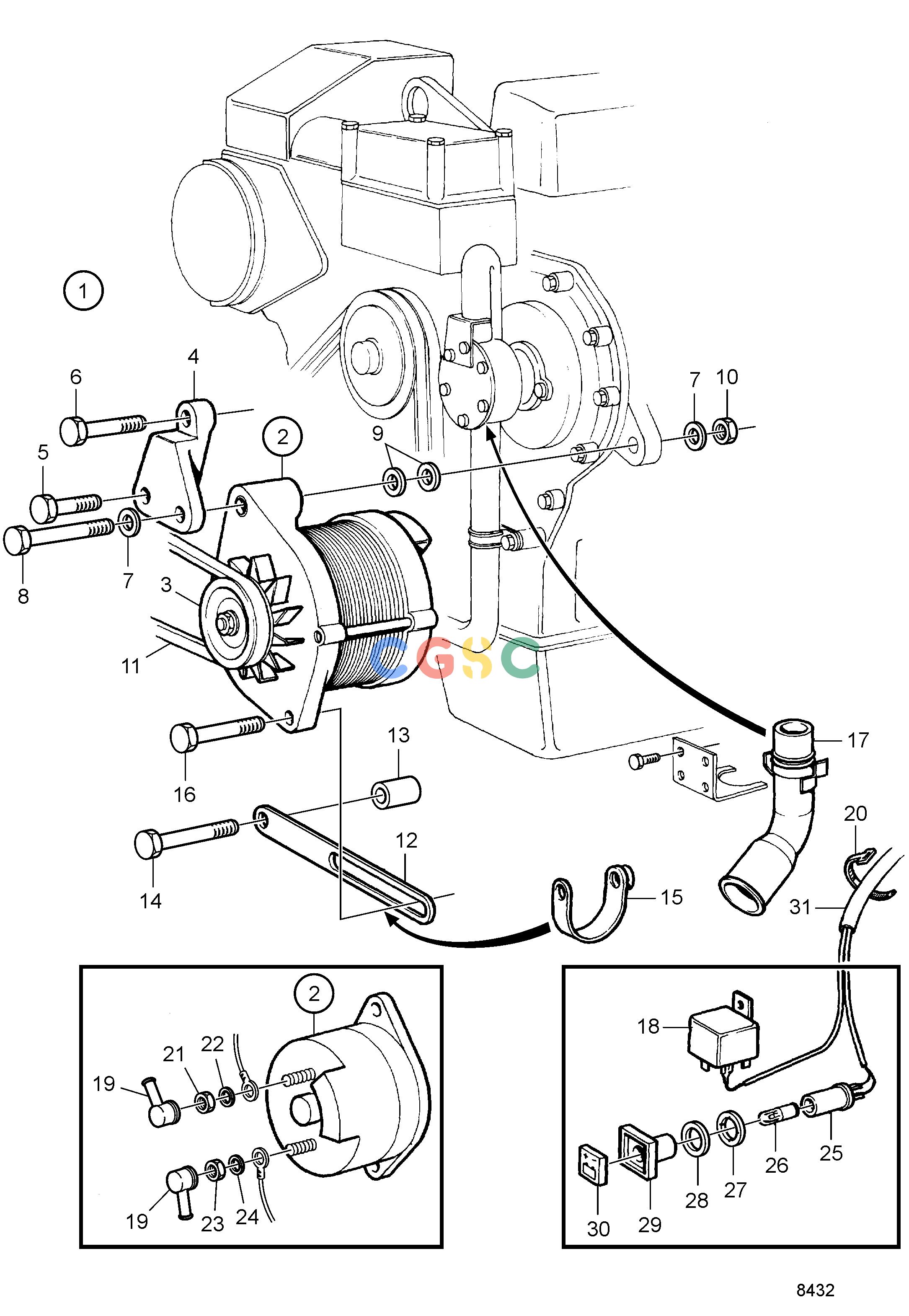

沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DElectrical SystemExtra Alternator: 12V, 50AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
558 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858620
|
[1] |
Alternator kit
|
12V 50A
|
| 2. |
872926
|
[1] |
Alternator
|
14V 50A
|
| 2. |
|
|
|
|
| 2. |
872235
|
[1] |
Alternator
|
14V 60A
|
| 2. |
3803260
|
[1] |
Alternator, exch
|
14V 60A
|
| 3. |
841813
|
[1] |
Pulley
|
|
| 4. |
843057
|
[1] |
Bracket
|
|
| 5. |
965183
|
[1] |
Flange screw
|
|
| 6. |
965180
|
[1] |
Flange screw
|
|
| 7. |
941908
|
[2] |
Spring washer
|
|
| 8. |
955332
|
[1] |
Hexagon screw
|
|
| 9. |
192495
|
[2] |
Washer
|
|
| 10. |
971095
|
[1] |
Flange nut
|
|
| 11. |
967109
|
[1] |
V-belt
|
|
| 12. |
843055
|
[1] |
Tensioner
|
|
| 13. |
843075
|
[1] |
Spacer sleeve
|
|
| 14. |
965183
|
[1] |
Flange screw
|
|
| 15. |
466735
|
[1] |
Tensioning loop
|
|
| 16. |
947760
|
[1] |
Flange screw
|
|
| 17. |
858559
|
[1] |
Hose connection
|
|
| 18. |
872300
|
[1] |
Relay
|
|
| 19. |
842150
|
[1] |
Protective cap
|
|
| 20. |
948210
|
[1] |
Cable tie
|
|
| 21. |
955780
|
[1] |
Hexagon nut
|
|
| 22. |
941905
|
[1] |
Spring washer
|
|
| 23. |
955781
|
[1] |
Hexagon nut
|
|
| 24. |
941906
|
[1] |
Spring washer
|
|
| 25. |
808175
|
[1] |
Bulb socket
|
|
| 26. |
19923
|
[1] |
Bulb
|
|
| 27. |
967583
|
[1] |
Retainer
|
|
| 28. |
829714
|
[1] |
Sealing ring
|
|
| 29. |
838455
|
[1] |
Retainer
|
|
| 30. |
838457
|
[1] |
Symbol strip
|
|
| 31. |
|
|
|
|
