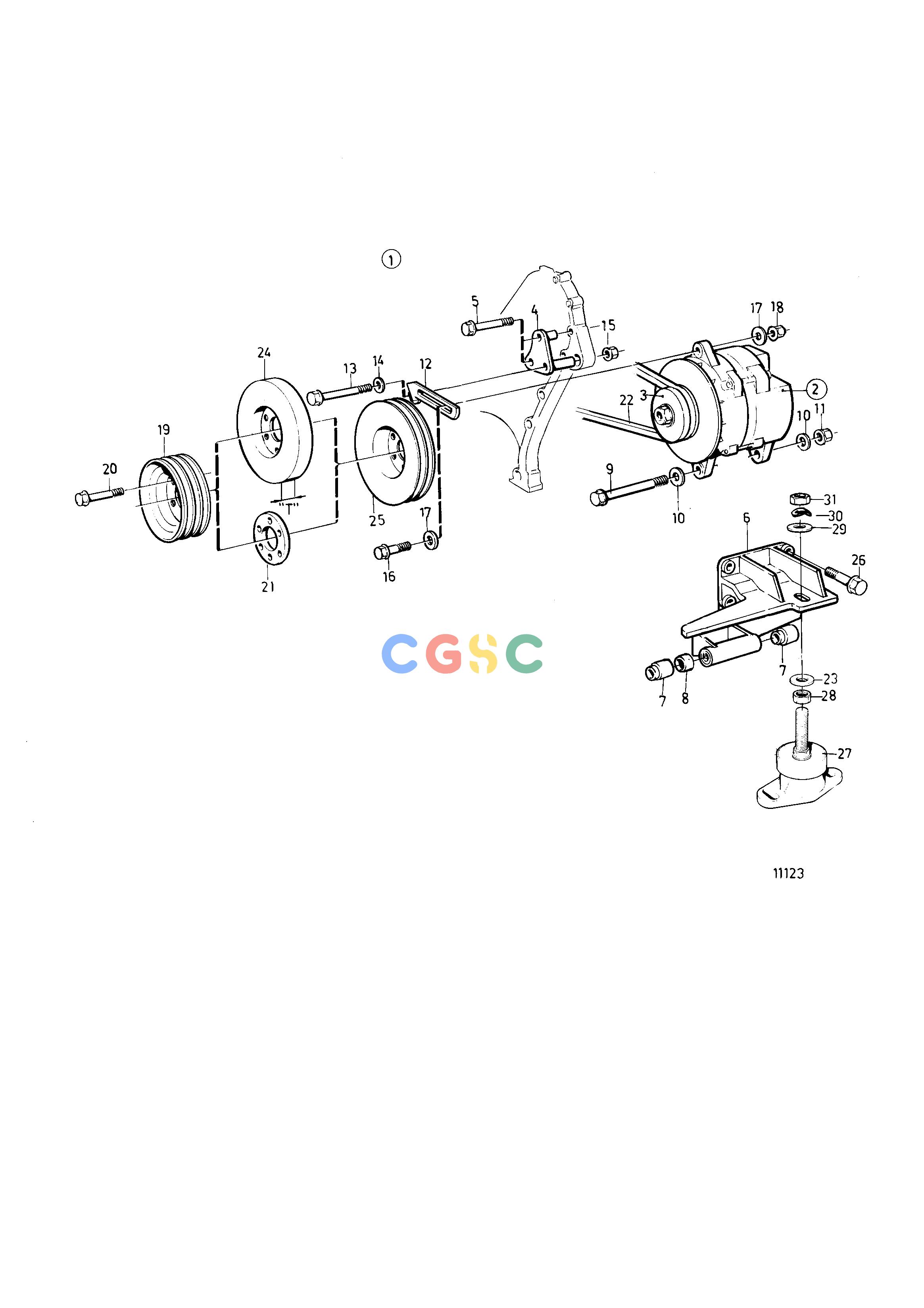

沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DElectrical SystemExtra Alternator: 24V, 100AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
670 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861155
|
[1] |
Alternator kit
|
Fits engines with damper thickness TH=35mm and TH=41mm.
|
| 2. |
849748
|
[1] |
Alternator
|
28V, 100A
|
| 2. |
3803499
|
[1] |
Alternator, exch
|
28V, 100A
|
| 3. |
830920
|
[1] |
Pulley
|
|
| 4. |
860869
|
[1] |
Bracket
|
|
| 5. |
965181
|
[2] |
Flange screw
|
|
| 6. |
860868
|
[1] |
Bracket
|
|
| 7. |
859574
|
[2] |
Bushing
|
|
| 8. |
|
|
|
|
| 9. |
970988
|
[1] |
Hexagon screw
|
|
| 10. |
955897
|
[2] |
Washer
|
|
| 11. |
971099
|
[1] |
Flange lock nut
|
|
| 12. |
859075
|
[1] |
Tensioner
|
|
| 13. |
970963
|
[1] |
Hexagon screw
|
|
| 14. |
960148
|
[1] |
Washer
|
|
| 15. |
971098
|
[1] |
Flange lock nut
|
|
| 16. |
946752
|
[1] |
Flange screw
|
|
| 17. |
960143
|
[2] |
Washer
|
|
| 18. |
971098
|
[1] |
Flange lock nut
|
|
| 19. |
861123
|
[1] |
Pulley
|
Fits engines with damper thickness TH=35mm and TH=41mm.
|
| 20. |
973080
|
[6] |
Screw
|
|
| 21. |
860870
|
[1] |
Spacer
|
|
| 22. |
966391
|
[1] |
V-belt
|
|
| 23. |
945544
|
[1] |
Washer
|
Only used for rubber element with M16 bolt.
|
| 24. |
|
|
|
Alt. see group 21
|
| 25. |
|
|
|
See group 21
|
| 26. |
|
|
|
See group 21
|
| 27. |
|
|
|
See group 21
|
| 28. |
|
|
|
See group 21
|
| 29. |
|
|
|
See group 21
|
| 30. |
|
|
|
See group 21
|
| 31. |
|
|
|
See group 21
|
