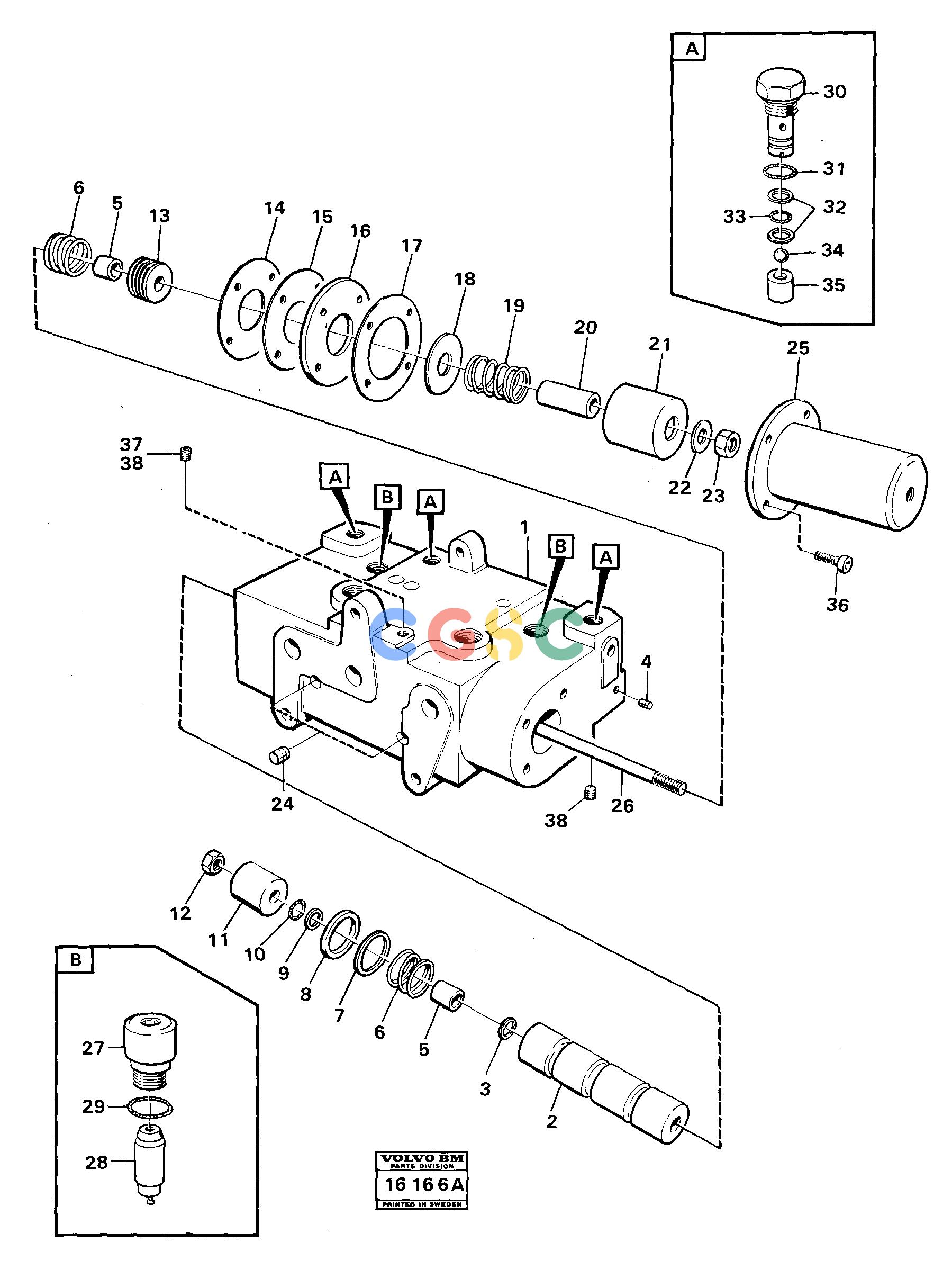

沃尔沃零件查询A25 VOLVO BM Control valve Tillv Nr 5008 -VOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
272 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11053868
|
[1] |
Control valve
|
|
| 1. |
|
[1] |
Housing
|
|
| 2. |
|
[1] |
Slide
|
|
| 3. |
VOE11053870
|
[1] |
Piston seal
|
|
| 4. |
|
[4] |
Plug
|
|
| 5. |
|
[2] |
Sleeve
|
|
| 6. |
VOE4821529
|
[2] |
Compression spring
|
|
| 7. |
VOE4823569
|
[0001] |
Seal
|
|
| 8. |
VOE6617687
|
[0001] |
Scraper
|
|
| 9. |
VOE13962537
|
[0001] |
Back-up ring
|
|
| 10. |
VOE925055
|
[0001] |
O-ring
|
|
| 11. |
|
[0001] |
Piston
|
|
| 12. |
VOE971099
|
[1] |
Flange lock nut
|
|
| 13. |
|
[1] |
Piston
|
|
| 14. |
VOE11053896
|
[REQ] |
Shim
|
|
| 15. |
VOE4821536
|
[REQ] |
Shim
|
|
| 16. |
VOE4821535
|
[1] |
Washer
|
|
| 17. |
VOE4821534
|
[REQ] |
Shim
|
|
| 18. |
VOE4821472
|
[1] |
Washer
|
|
| 19. |
VOE4821502
|
[1] |
Compression spring
|
|
| 20. |
|
[1] |
Sleeve
|
|
| 21. |
VOE4823852
|
[1] |
Sleeve
|
|
| 22. |
VOE4823923
|
[1] |
Washer
|
|
| 23. |
VOE971099
|
[1] |
Flange lock nut
|
|
| 24. |
|
[2] |
Plug
|
|
| 25. |
VOE4823854
|
[0001] |
Housing
|
|
| 26. |
|
[0001] |
Pull rod
|
|
| 27. |
VOE4737440
|
[0002] |
Plug
|
|
| 28. |
VOE4823450
|
[0002] |
Valve
|
|
| 29. |
VOE13949327
|
[0002] |
O-ring
|
|
| 30. |
VOE15116112
|
[0003] |
Valve kit
|
|
| 31. |
VOE967750
|
[0003] |
O-ring
|
|
| 32. |
VOE13962535
|
[0006] |
Back-up ring
|
|
| 33. |
VOE944364
|
[0003] |
O-ring
|
|
| 34. |
VOE183801
|
[0003] |
Ball
|
|
| 35. |
VOE4941091
|
[0003] |
Ball cage
|
|
| 36. |
VOE942314
|
[0004] |
Hex. socket screw
|
|
| 37. |
|
[0001] |
Plug
|
|
| 38. |
VOE4864282
|
[0001] |
Plug
|
|
| |
VOE11990034
|
[0001] |
Gasket kit
|
|
