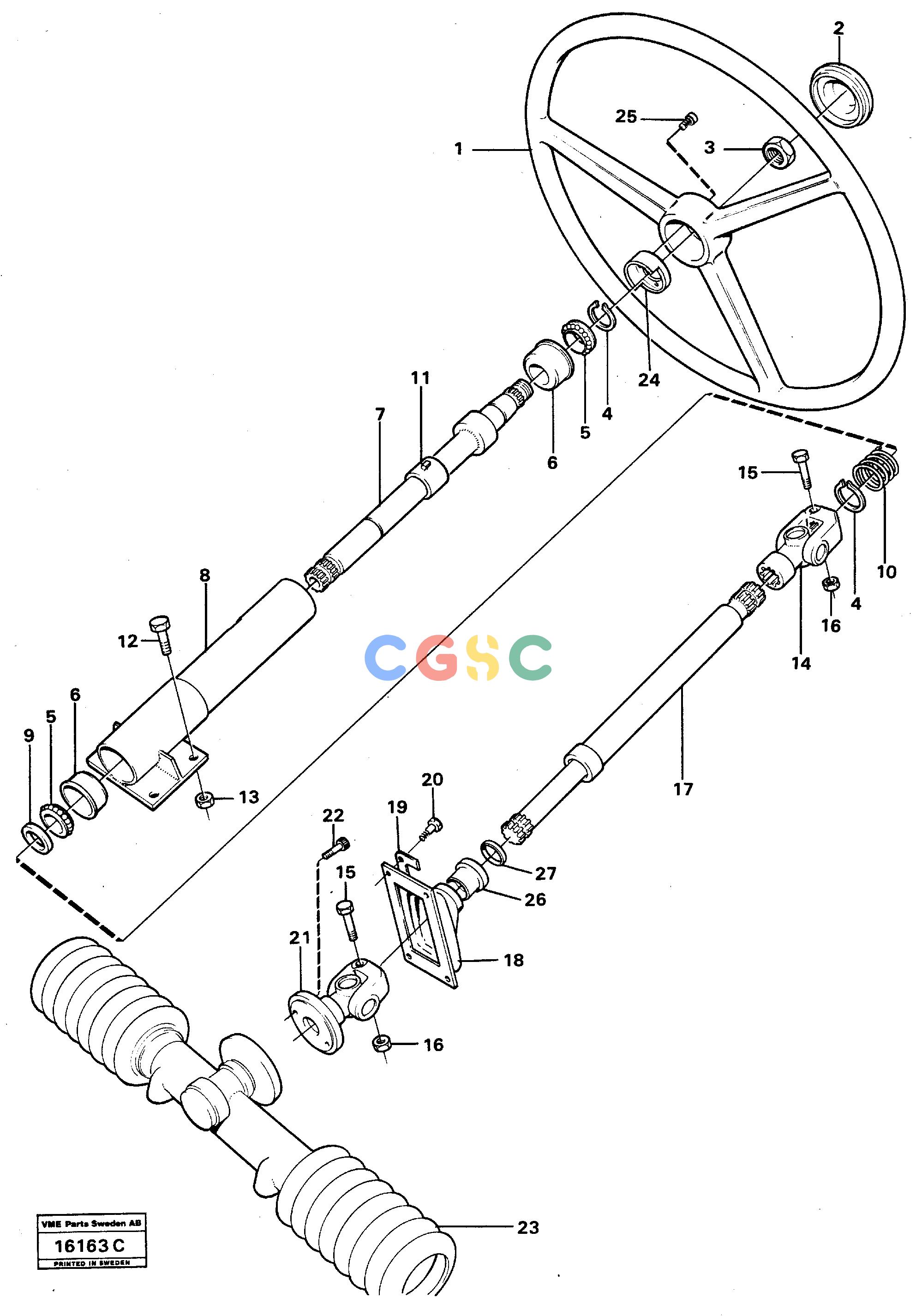

沃尔沃零件查询A25 VOLVO BM Steering gearVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
962 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE951078
|
[0002] |
Retaining ring
|
|
| 5. |
VOE7323053
|
[0002] |
Bearing sleeve
|
|
| 6. |
VOE362044
|
[0002] |
Ctrg Device
|
|
| 7. |
|
[0001] |
Steering column
|
|
| 8. |
|
[0001] |
Wheel tube
|
|
| 1. |
VOE4940047
|
[0001] |
Steering wheel
|
|
| 9. |
VOE362047
|
[0001] |
Felt ring
|
|
| 10. |
VOE362045
|
[0001] |
Spring
|
|
| 11. |
VOE362042
|
[0001] |
Slip ring
|
|
| 12. |
VOE955297
|
[0004] |
Hexagon screw
|
|
| 13. |
VOE13945408
|
[0004] |
Nut
|
|
| 14. |
VOE1606501
|
[0001] |
Universal joint
|
|
| 15. |
VOE13970951
|
[0003] |
Hexagon screw
|
|
| 16. |
VOE13971098
|
[0003] |
Flange nut
|
|
| 17. |
VOE4823759
|
[0001] |
Steering shaft
|
|
| 18. |
VOE1572988
|
[0001] |
Bellows
|
|
| 2. |
VOE7631020
|
[0001] |
Horn button
|
|
| 19. |
VOE1573028
|
[0002] |
Retainer
|
|
| 20. |
VOE958249
|
[0004] |
Cross recessed screw
|
|
| 21. |
VOE4965294
|
[0001] |
Companion flange
|
|
| 22. |
VOE4821025
|
[0002] |
Screw
|
|
| 23. |
|
[0001] |
Steering linkage
|
|
| 24. |
VOE4714601
|
[0001] |
Ring
|
|
| 25. |
VOE4714697
|
[0003] |
Screw
|
|
| 26. |
VOE4864478
|
[0001] |
Bushing
|
SER NO - 5623
|
| |
VOE11057748
|
[0001] |
Bushing
|
SER NO 5624-
|
| |
VOE4864835
|
[0001] |
Steering shaft
|
|
| 27. |
VOE914604
|
[0001] |
Felt ring
|
SER NO 5624 -
|
| 3. |
VOE7019656
|
[0001] |
Nut
|
|
