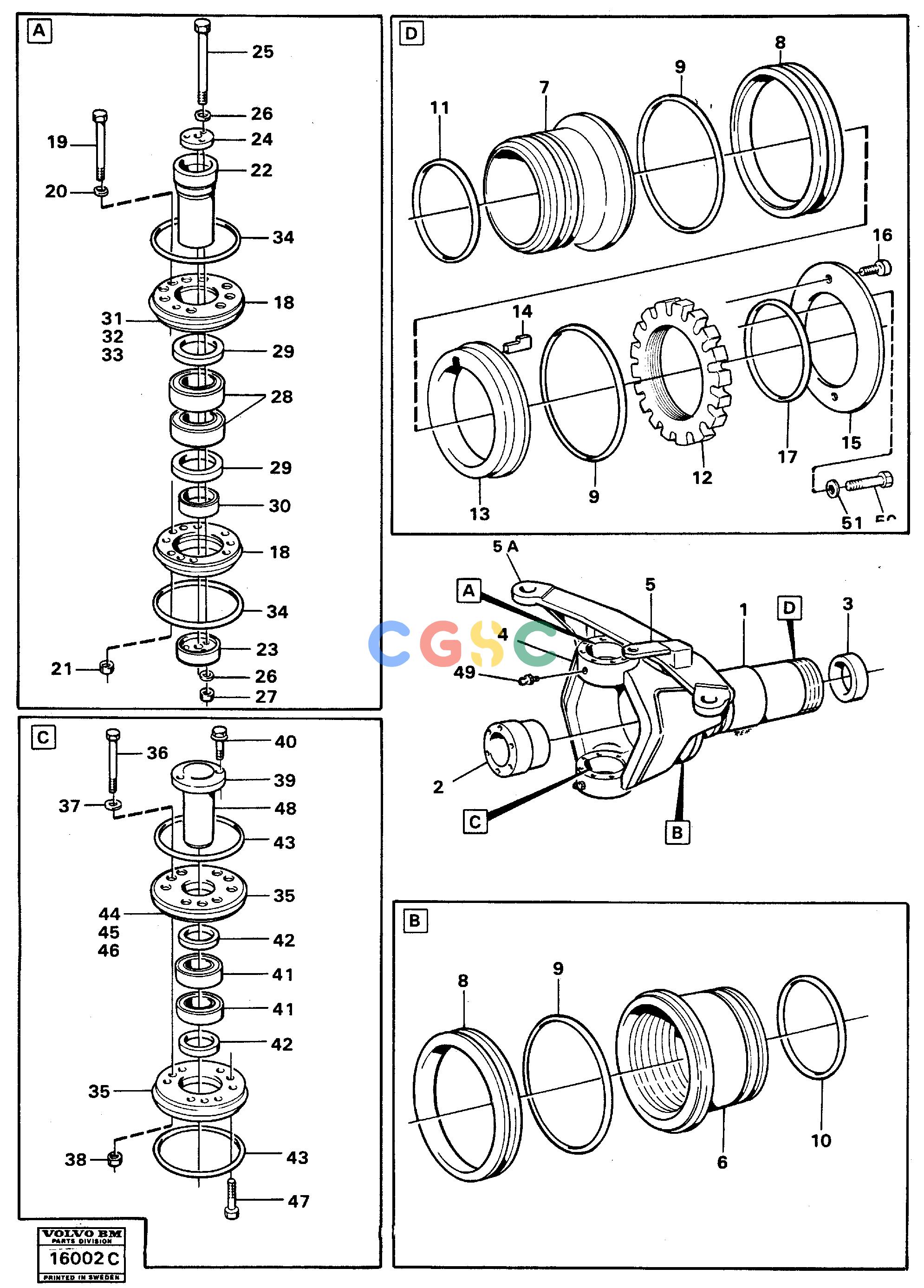

沃尔沃零件查询A25 VOLVO BM HitchVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
481 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11999602
|
[0001] |
Conversion kit
|
|
| 2. |
VOE4940180
|
[0001] |
Sleeve
|
SVETSAD/WELDED
|
| 3. |
VOE4940181
|
[0001] |
Sleeve
|
SVETSAD/WELDED
|
| 4. |
VOE4821384
|
[2] |
Plate
|
SVETSAD/WELDED
|
| 5. |
VOE4965013
|
[1] |
Bracket
|
SVETSAD/WELDED
|
| 5A. |
VOE4737140
|
[2] |
Eye
|
|
| 6. |
VOE11052509
|
[1] |
Bearing
|
|
| |
VOE4941966
|
[1] |
Bearing
|
UD
|
| 7. |
VOE11052510
|
[1] |
Bearing
|
|
| |
VOE4941967
|
[1] |
Bearing
|
UD
|
| 8. |
VOE4821400
|
[2] |
Ring
|
|
| 9. |
VOE960265
|
[3] |
O-ring
|
|
| 10. |
VOE13946899
|
[1] |
O-ring
|
|
| |
VOE968240
|
[1] |
O-ring
|
UD
|
| 11. |
VOE6626377
|
[1] |
O-ring
|
|
| |
VOE943598
|
[1] |
O-ring
|
UD
|
| 12. |
VOE4965615
|
[1] |
Lock nut
|
|
| 13. |
VOE11054819
|
[0001] |
Back-up ring
|
|
| 14. |
VOE4821372
|
[1] |
Key
|
|
| 15. |
|
[1] |
Cap
|
|
| 16. |
VOE13945444
|
[9] |
Screw
|
|
| 17. |
VOE925071
|
[1] |
O-ring
|
|
| 18. |
VOE4737054
|
[2] |
Cover
|
|
| 19. |
VOE970960
|
[8] |
Hexagon screw
|
|
| 20. |
VOE976945
|
[8] |
Washer
|
|
| 21. |
VOE13971098
|
[0008] |
Flange nut
|
|
| 22. |
VOE4737073
|
[0001] |
Pin
|
|
| 23. |
VOE4737072
|
[0001] |
Plate
|
|
| 24. |
VOE4737071
|
[0001] |
Plate
|
|
| 25. |
VOE13955382
|
[0003] |
Screw
|
|
| 26. |
VOE13955900
|
[0006] |
Washer
|
|
| 27. |
VOE955785
|
[0003] |
Hexagon nut
|
|
| 28. |
VOE184112
|
[0002] |
Roller bearing
|
|
| 29. |
VOE11190761
|
[0002] |
Radial Seal
|
|
| 30. |
VOE11054204
|
[0001] |
Spacer ring
|
|
| 31. |
VOE4737216
|
[0002] |
Shim
|
|
| 32. |
VOE4737217
|
[0002] |
Shim
|
|
| 33. |
VOE4737218
|
[0002] |
Shim
|
|
| 34. |
VOE13962503
|
[0002] |
O-ring
|
|
| 35. |
VOE4737055
|
[0002] |
Cover
|
|
| 36. |
VOE60112551
|
[0006] |
Hexagon screw
|
|
| 37. |
VOE13955894
|
[0006] |
Washer
|
|
| 38. |
VOE13945408
|
[0006] |
Nut
|
|
| 39. |
VOE4737130
|
[0001] |
Plate
|
|
| 40. |
VOE13965185
|
[0002] |
Screw
|
|
| 41. |
VOE184109
|
[0002] |
Roller bearing
|
|
| 42. |
VOE958900
|
[0002] |
Sealing ring
|
|
| 43. |
VOE925035
|
[0002] |
O-ring
|
|
| 44. |
VOE11054257
|
[0002] |
Shim
|
|
| 45. |
VOE11054258
|
[0002] |
Shim
|
|
| 46. |
VOE4737221
|
[0002] |
Shim
|
|
| 47. |
VOE13945444
|
[0005] |
Screw
|
|
| 48. |
VOE4737102
|
[0001] |
Pin
|
|
| 49. |
VOE914167
|
[0002] |
Lubricating nipple
|
|
| 50. |
VOE103359
|
[0003] |
Hexagon screw
|
|
| 51. |
VOE4737842
|
[0003] |
Washer
|
|
