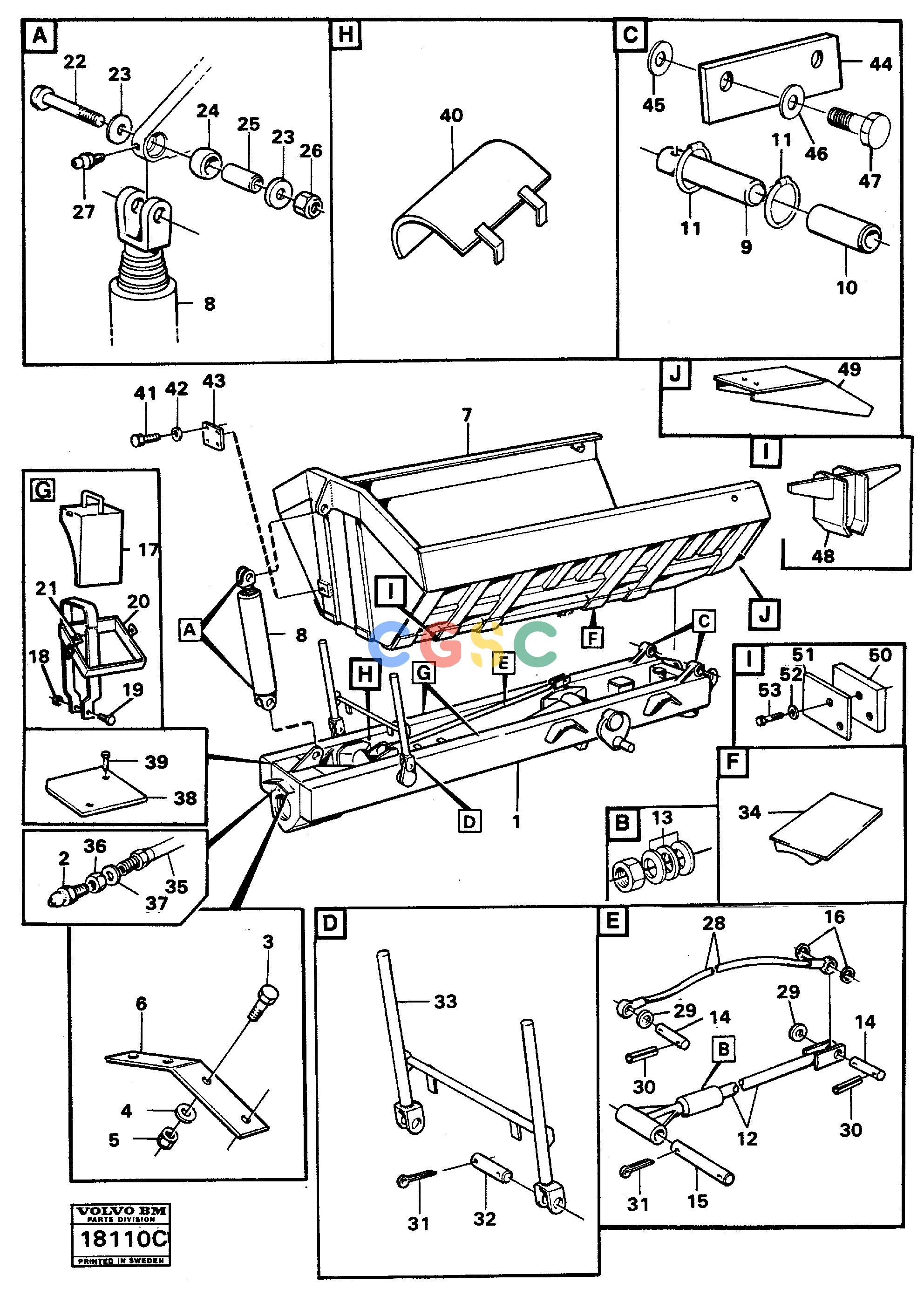

沃尔沃零件查询A25 VOLVO BM Trailer and body 6 X 4, 6 X 6VOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
145 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11054231
|
[1] |
Rear frame
|
|
| |
VOE11054232
|
[1] |
Rear frame
|
37016
|
| |
VOE4941539
|
[1] |
Frame
|
|
| 2. |
VOE914167
|
[4] |
Lubricating nipple
|
|
| 3. |
VOE60111867
|
[4] |
Hexagon screw
|
|
| 4. |
VOE60110304
|
[4] |
Washer
|
|
| 5. |
VOE13949278
|
[4] |
Flange lock nut
|
|
| 6. |
|
[1] |
Rubber
|
|
| 7. |
VOE11054168
|
[1] |
Body
|
|
| |
VOE4941241
|
[1] |
Bracket
|
|
| |
VOE11054169
|
[1] |
Housing
|
|
| |
VOE11054174
|
[1] |
Dumper body
|
USA
|
| |
VOE11054170
|
[1] |
Housing
|
|
| 8. |
|
[1] |
Tipping cylinder
|
|
| |
|
[1] |
Tipping cylinder
|
|
| 9. |
VOE4941837
|
[0002] |
Pin
|
6X4, 6X6
|
| 10. |
VOE4940631
|
[0002] |
Bearing
|
|
| 11. |
VOE4824482
|
[0004] |
O-ring
|
|
| 12. |
VOE4940922
|
[0002] |
Pull rod
|
|
| 13. |
VOE11053098
|
[0022] |
Disc spring
|
|
| 14. |
VOE4864875
|
[0002] |
Pin
|
|
| 15. |
VOE4821677
|
[0001] |
Pin
|
SER NO - 4827
|
| |
VOE11055104
|
[0001] |
Pin
|
SER NO 4828 -
|
| 16. |
VOE4929151
|
[REQ] |
Shim
|
|
| 17. |
VOE4749746
|
[0002] |
Base
|
|
| 18. |
VOE13945408
|
[0002] |
Nut
|
|
| 19. |
VOE13955307
|
[0002] |
Screw
|
|
| 20. |
|
[0002] |
Anchorage
|
|
| 21. |
VOE6617683
|
[0002] |
Eccentric lock
|
|
| 22. |
VOE955413
|
[0002] |
Hexagon screw
|
|
| 23. |
VOE4737490
|
[0004] |
Washer
|
|
| 24. |
VOE183679
|
[0002] |
Spherical plain bearing
|
|
| 25. |
VOE4864923
|
[0002] |
Sleeve
|
|
| 26. |
VOE60114213
|
[0002] |
Lock nut
|
|
| 27. |
VOE914167
|
[0004] |
Lubricating nipple
|
|
| 28. |
VOE4940022
|
[0001] |
Cable
|
|
| 29. |
VOE13955909
|
[0004] |
Washer
|
|
| 30. |
VOE951995
|
[0004] |
Spring pin
|
|
| 31. |
VOE13907875
|
[0006] |
Cotter Pin
|
SER NO - 4827
|
| |
VOE13907875
|
[0004] |
Cotter Pin
|
SER NO 4828 -
|
| |
VOE951995
|
[0002] |
Spring pin
|
SER NO 4828 -
|
| 32. |
VOE4821699
|
[0002] |
Pin
|
|
| 33. |
|
[0001] |
Strut
|
|
| 34. |
VOE4941257
|
[0010] |
Rubber cushion
|
|
| 35. |
VOE4965549
|
[0004] |
Lubricating hose
|
|
| 36. |
VOE955838
|
[0004] |
Hexagon nut
|
|
| 37. |
VOE13955900
|
[0008] |
Washer
|
|
| 38. |
VOE4965259
|
[0001] |
Cover
|
|
| 39. |
VOE13965191
|
[0002] |
Screw
|
|
| 40. |
VOE4941674
|
[0001] |
Protection
|
|
| 41. |
VOE13970944
|
[0004] |
Hexagon screw
|
|
| 42. |
VOE976945
|
[0004] |
Washer
|
|
| 43. |
VOE4737723
|
[0001] |
Cover
|
|
| 44. |
VOE4942332
|
[0002] |
Anchorage
|
|
| 45. |
VOE60110353
|
[0004] |
Washer
|
|
| 46. |
VOE4737842
|
[0004] |
Washer
|
|
| 47. |
VOE13970971
|
[0004] |
Hexagon screw
|
|
| 48. |
VOE4940892
|
[0001] |
Locating Plate
|
|
| 49. |
VOE4823018
|
[0002] |
Bracket
|
|
| 50. |
VOE4940895
|
[0004] |
Plate
|
|
| 51. |
VOE4940894
|
[0002] |
Plate
|
|
| 52. |
VOE13970971
|
[0004] |
Hexagon screw
|
|
| 53. |
VOE60110353
|
[0004] |
Washer
|
|
