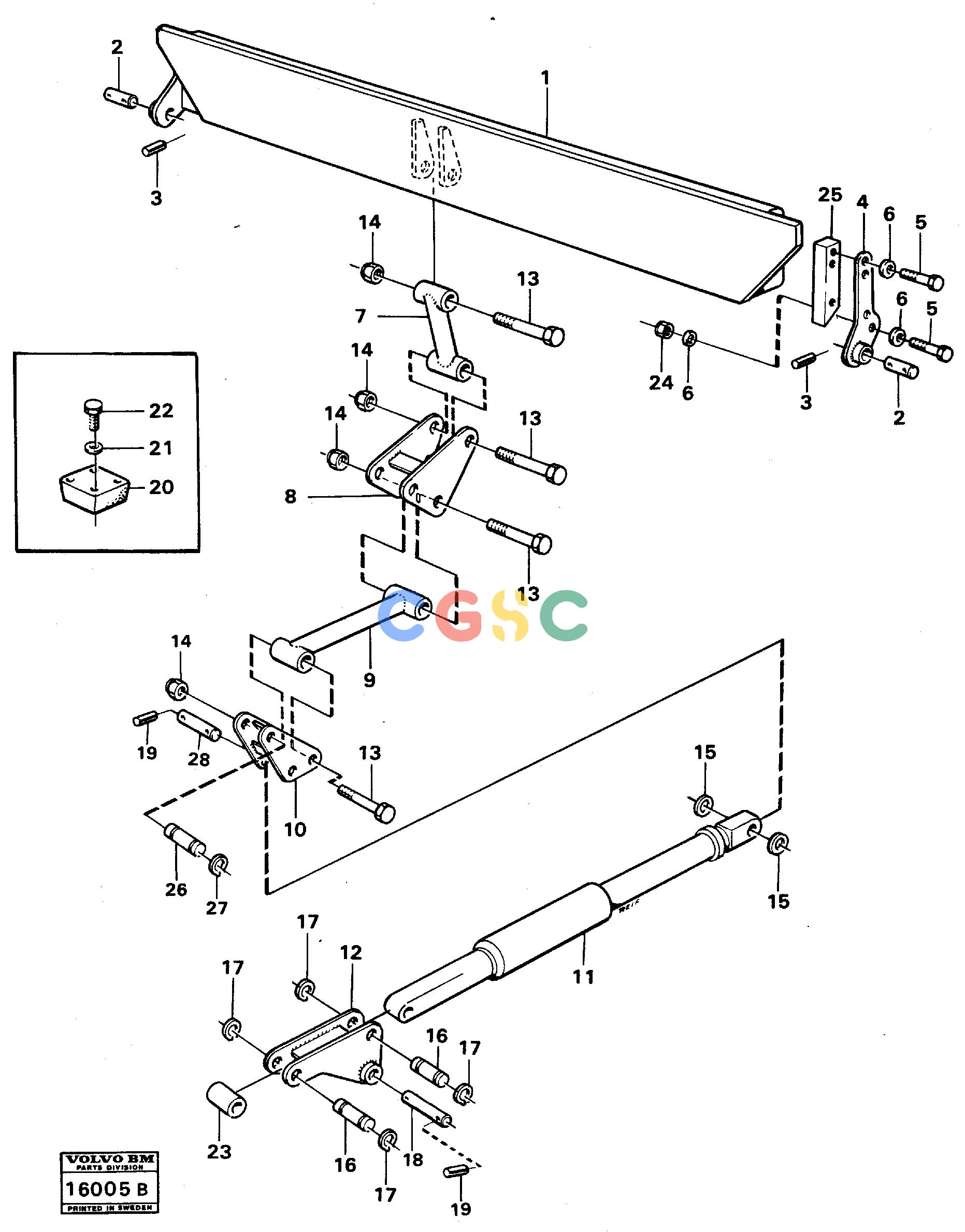

沃尔沃零件查询A25 VOLVO BM Rear flap, mechanicalVOLVO BM A25 NoneNone98491Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
504 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13970908
|
[0003] |
Hexagon screw
|
L=50
|
| |
VOE13970906
|
[0001] |
Hexagon screw
|
L=70
|
| 6. |
VOE11036004
|
[0003] |
Spacer sleeve
|
|
| 7. |
VOE4941154
|
[0001] |
Push rod
|
|
| 1. |
VOE4861297
|
[0001] |
Tailboard
|
|
| 8. |
VOE11053881
|
[0001] |
Hand lever
|
|
| 9. |
VOE4941153
|
[0001] |
Push rod
|
|
| 10. |
VOE4823028
|
[0001] |
Hand lever
|
|
| 11. |
VOE11053857
|
[0001] |
Gas spring
|
|
| 12. |
VOE11056062
|
[0001] |
Hand lever
|
|
| 13. |
VOE955413
|
[0005] |
Hexagon screw
|
|
| 14. |
VOE60114213
|
[0005] |
Lock nut
|
|
| 15. |
VOE955906
|
[0002] |
Plain washer
|
|
| 16. |
VOE4823026
|
[0002] |
Shaft
|
|
| 2. |
VOE4822457
|
[0002] |
Pin
|
|
| 17. |
VOE914459
|
[0004] |
Snap ring
|
|
| 18. |
VOE4965110
|
[0001] |
Pin
|
|
| 19. |
VOE951993
|
[0004] |
Spring pin
|
|
| 20. |
VOE351111
|
[0002] |
Buffer
|
|
| 21. |
VOE976945
|
[0004] |
Washer
|
|
| 22. |
VOE970945
|
[0004] |
Hexagon screw
|
|
| 23. |
VOE348979
|
[0001] |
Roller
|
|
| 24. |
VOE981315
|
[0001] |
Lock nut
|
|
| 25. |
VOE4861298
|
[0001] |
Attaching plate
|
|
| 26. |
VOE4864497
|
[0001] |
Pin
|
|
| 3. |
VOE952009
|
[0002] |
Spring pin
|
|
| 27. |
VOE13951077
|
[0002] |
Snap ring
|
|
| 28. |
VOE4965111
|
[0001] |
Pin
|
|
| 4. |
VOE4822454
|
[0001] |
Lug
|
|
