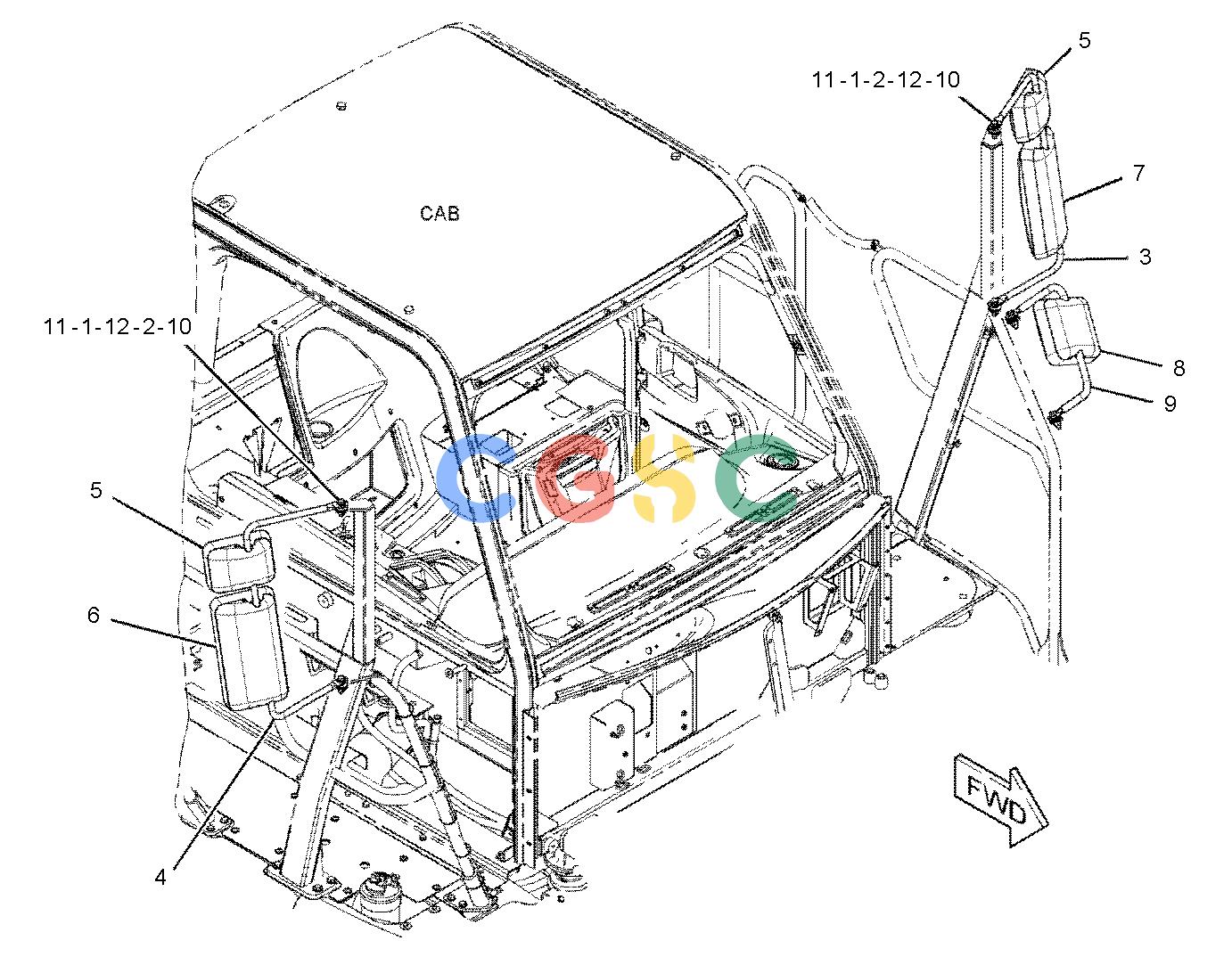

卡特零件查询（725） 326-8728: MIRROR GP-REAR VIEW
广数供应链运营团队, 14 02月, 2025，浏览：
679 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4W-8926 | [24] | WASHER(18.3X40X3.15-MM THK) | |
| 2. | 108-7638 | [6] | SPACER(13.3X17.3X17.4-MM THK) | |
| 3. | 305-8488 | [1] | BRACKET-MIRROR(LH) | |
| 4. | 305-8490 | [1] | BRACKET-MIRROR(RH) | |
| 5. | 319-6785 | [2] | MIRROR AS-CONVEX | |
| | | | (EACH INCLUDES) |
| | 308-3841 | [1] | REFLECTOR | |
| | 319-6784 | [1] | COVER AS | |
| 6. | 319-6788 | [1] | MIRROR AS-CONVEX(RH) | |
| | 290-5548 | [1] | REFLECTOR | |
| | 319-6787 | [1] | COVER AS | |
| 7. | 319-6789 | [1] | MIRROR AS(LH) | |
| | 290-5548 | [1] | REFLECTOR | |
| | 319-6787 | [1] | COVER AS | |
| 8. | 326-8730 | [1] | MIRROR-CONVEX | |
| | 326-8729 | [1] | COVER AS-REAR | |
| | 326-8973 | [1] | REFLECTOR | |
| 9. | 326-8732 | [1] | BRACKET-MIRROR | |
| 10. | 8T-4194M | [6] | BOLT(M12X1.75X50-MM) | |
| 11. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 8T-4244M | [6] | NUT(M12X1.75-THD) | |
| | M | | METRIC PART |
