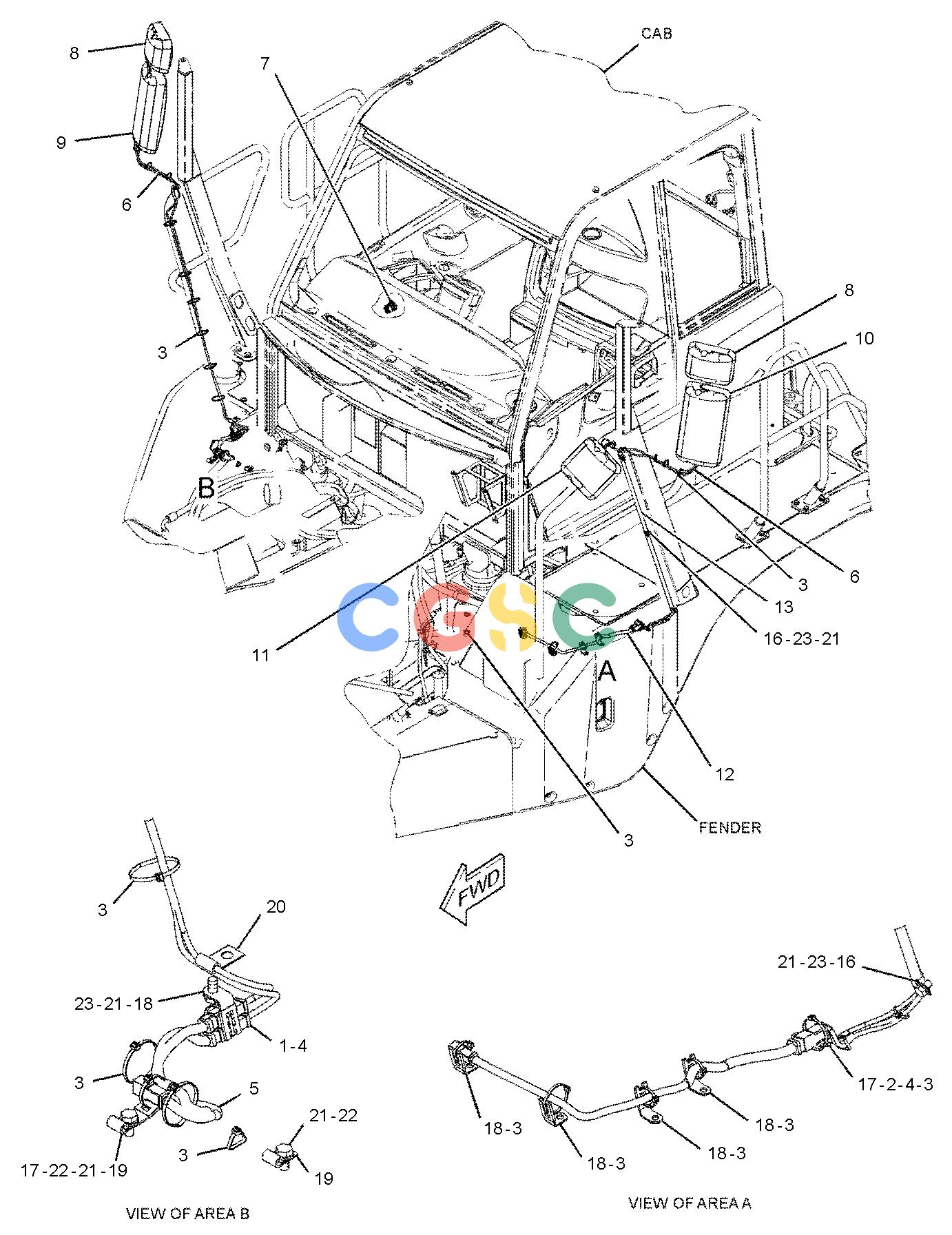

卡特零件查询（725） 327-7733: MIRROR GP-REAR VIEW
广数供应链运营团队, 14 02月, 2025，浏览：
935 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8802 | [2] | KIT-RECEPTACLE(2-PIN) | |
| 2. | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WDEGE) |
| 3. | 3S-2093 | [30] | STRAP-CABLE | |
| 4. | 8T-8729 | [10] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 5. | 208-4540Y | [1] | HARNESS AS-WIRING(HEATED MIRROR)(RH) | |
| 6. | 236-5334 | [5] | WIRE AS | |
| 7. | 271-2824 | [1] | SWITCH AS-ROCKER(HEATED MIRROR) | |
| 8. | 319-6786 | [2] | MIRROR AS-CONVEX(HEATED) | |
| | | | (EACH INCLUDES) |
| | 308-3843 | [1] | REFLECTOR | |
| | 319-6784 | [1] | COVER AS | |
| 9. | 319-6790 | [1] | MIRROR AS(HEATED, RH) | |
| 10. | 319-6791 | [1] | MIRROR AS(HEATED, LH) | |
| | | | (EACH MIRROR AS INCLUDES) |
| | 294-1993 | [1] | REFLECTOR | |
| | 319-6787 | [1] | COVER AS | |
| 11. | 327-7732 | [1] | MIRROR AS-CONVEX | |
| | 326-8729 | [1] | COVER AS-REAR | |
| 12. | 328-1905Y | [1] | HARNESS AS-WIRING(HEATED MIRROR)(LH) | |
| 13. | 328-2480 | [1] | TUBE-NYLON | |
| 16. | 4K-8864 | [3] | CLIP(LOOP) | |
| 17. | 4P-7581 | [2] | CLIP(LADDER) | |
| 18. | 4P-8134 | [5] | CLIP(LADDER) | |
| 19. | 5P-9085 | [2] | CLIP(LOOP) | |
| 20. | 6V-2383 | [1] | CLIP | |
| 21. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 23. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
