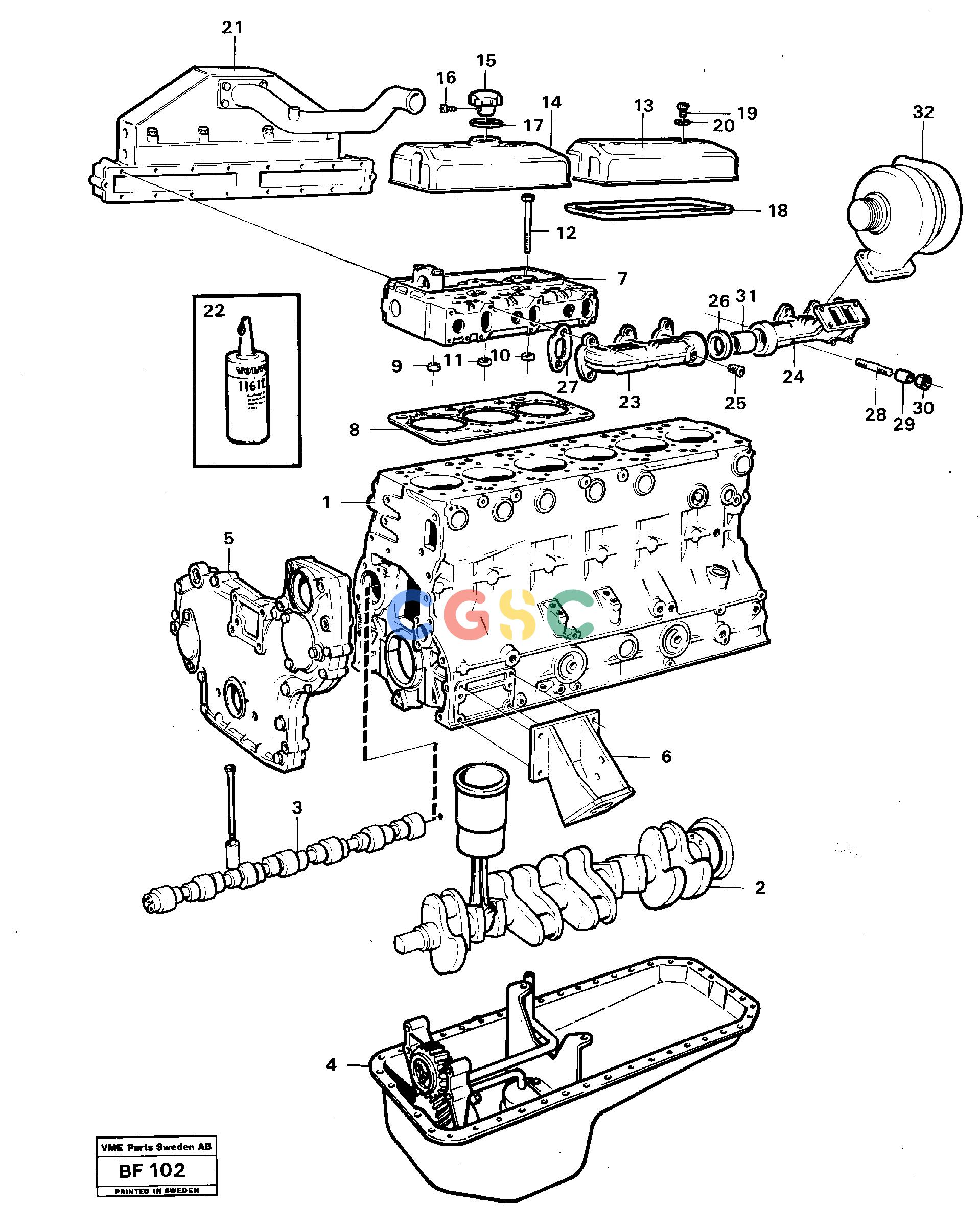

沃尔沃零件查询A25B Engine with fitting partsA25B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
369 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE497288
|
[1] |
Engine
|
|
| 1. |
VOE477910
|
[1] |
Cylinder block
|
|
| 2. |
|
[1] |
Crankshaft
|
|
| 3. |
|
[1] |
Camshaft
|
|
| 4. |
|
[1] |
Lubricating system
|
|
| 5. |
|
[1] |
Timing gear casing
|
|
| 6. |
|
[1] |
Engine mounting
|
|
| 7. |
VOE421500
|
[2] |
Cylinder head
|
|
| 8. |
VOE275779
|
[2] |
Gasket kit
|
|
| |
|
[2] |
Gasket
|
|
| 9. |
VOE465784
|
[12] |
Seal
|
|
| 10. |
VOE466421
|
[16] |
Sealing ring
|
|
| 11. |
VOE422413
|
[2] |
Sealing ring
|
|
| 12. |
VOE471481
|
[40] |
Screw
|
|
| 13. |
VOE471426
|
[1] |
Valve cover
|
|
| 14. |
VOE471813
|
[1] |
Valve cover
|
|
| 15. |
VOE421753
|
[1] |
Filler cap
|
|
| 16. |
VOE955126
|
[1] |
Cross recessed screw
|
|
| 17. |
VOE1275379
|
[1] |
Gasket
|
|
| 18. |
VOE471520
|
[2] |
Gasket
|
|
| 19. |
VOE465961
|
[4] |
Cap nut
|
|
| 20. |
VOE471856
|
[4] |
Sealing ring
|
|
| 21. |
|
[1] |
Inlet pipe
|
|
| 22. |
VOE1161277
|
[REQ] |
Sealant
|
|
| 23. |
VOE3978602
|
[1] |
Exhaust pipe
|
|
| 24. |
VOE3978601
|
[1] |
Exhaust pipe
|
|
| 25. |
VOE952075
|
[1] |
Plug
|
|
| 26. |
VOE275748
|
[1] |
Sealing kit
|
|
| 27. |
VOE471650
|
[6] |
Gasket
|
|
| 28. |
VOE953077
|
[12] |
Stud
|
|
| 29. |
VOE422217
|
[12] |
Spacer sleeve
|
|
| 30. |
VOE1543499
|
[12] |
Flange nut
|
|
| 31. |
VOE421544
|
[1] |
Ring retainer
|
|
| 32. |
|
[1] |
Turbocharger
|
|
| |
|
[1] |
Gasket kit
|
HELRENOVERING/
|
| |
|
|
None
|
ENGINE OVERHAUL
|
| |
VOE270775
|
[1] |
Gasket kit
|
HELRENOVERING/
|
| |
|
|
None
|
ENGINE OVERHAUL
|
| |
|
[1] |
Gasket kit
|
SOTNING/DECARS.
|
| |
VOE275781
|
[1] |
Gasket kit
|
SOTNING/DECARS.
|
| |
VOE11998685
|
[1] |
Gasket kit
|
INSUG OCH AVGAS/
|
| |
|
|
None
|
INLET AND MANIFOLDS
|
