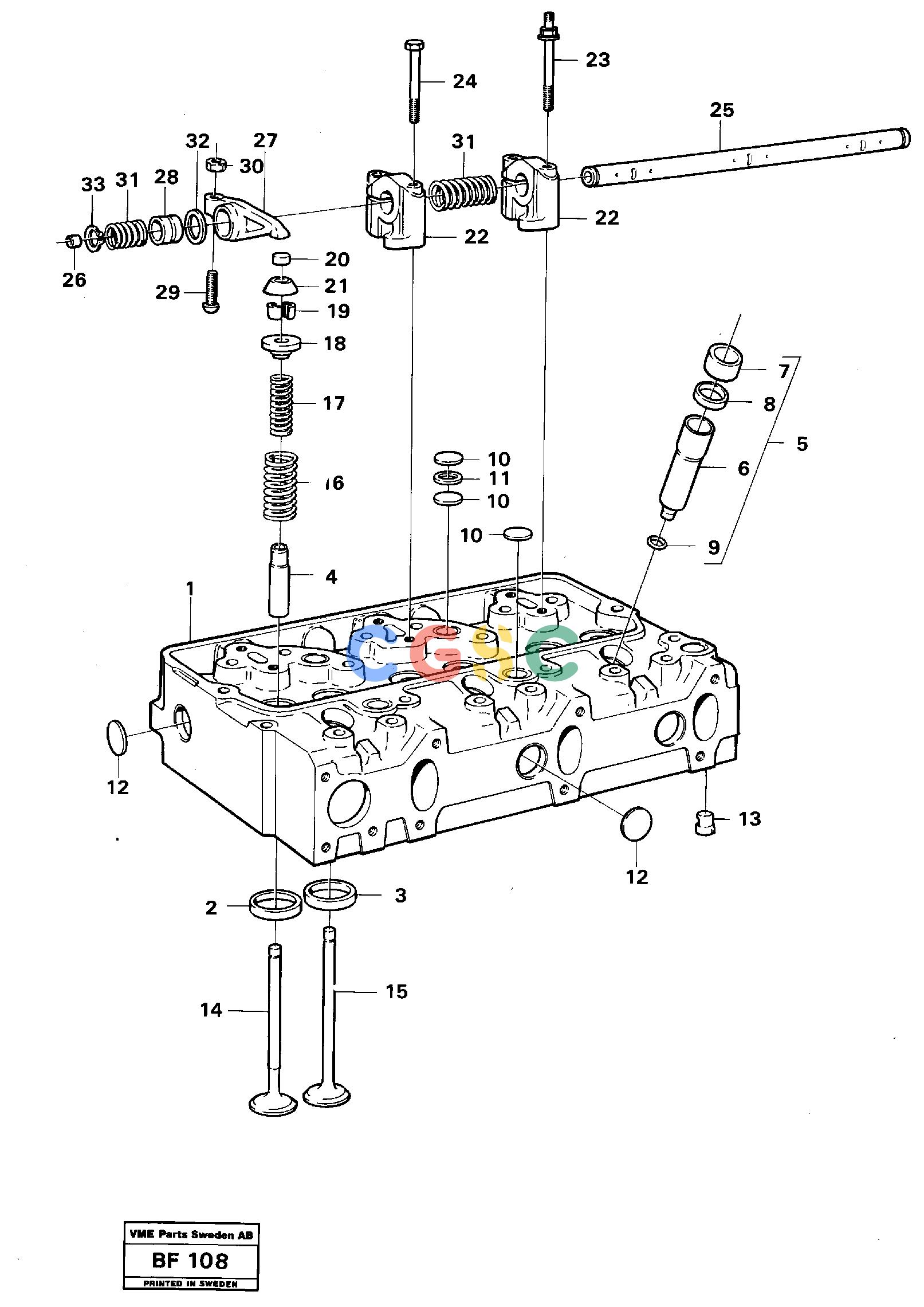

沃尔沃零件查询A25B Cylinder headA25B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
643 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE421500
|
[0001] |
Cylinder head
|
|
| 1. |
|
[0001] |
Cylinder cover
|
|
| 2. |
VOE421011
|
[0003] |
Valve seat
|
STD
|
| |
VOE421316
|
[0003] |
Valve seat
|
0.20 ÖD
|
| 3. |
VOE466266
|
[0003] |
Valve seat
|
STD
|
| |
VOE466307
|
[0003] |
Valve seat
|
0.20 ÖD
|
| 4. |
VOE466386
|
[0006] |
Valve guide
|
|
| 5. |
VOE273821
|
[0003] |
Repair kit
|
|
| 6. |
VOE477928
|
[0001] |
Socket
|
|
| 7. |
VOE466420
|
[0001] |
Ring
|
|
| 8. |
VOE466405
|
[0001] |
Sealing ring
|
|
| 9. |
VOE466922
|
[0001] |
Sealing ring
|
|
| 10. |
VOE477026
|
[0007] |
Expansion plug
|
|
| 11. |
VOE947626
|
[0004] |
Gasket
|
|
| 12. |
VOE477024
|
[0004] |
Expansion plug
|
|
| 13. |
VOE465420
|
[0005] |
Nozzle
|
|
| 14. |
VOE466379
|
[0003] |
Valve
|
|
| 15. |
VOE421680
|
[0003] |
Exhaust valve
|
|
| 16. |
VOE466384
|
[0006] |
Valve spring
|
|
| 17. |
VOE466383
|
[0006] |
Valve spring
|
|
| 18. |
VOE466382
|
[0006] |
Washer
|
|
| 19. |
VOE468305
|
[0012] |
Valve sleeve
|
|
| 20. |
VOE478074
|
[0006] |
Valve cap
|
|
| 21. |
VOE469456
|
[0006] |
Protecting ring
|
|
| 22. |
VOE477384
|
[0003] |
Bearing Bracket
|
|
| 23. |
VOE471512
|
[0002] |
Screw
|
|
| 24. |
VOE471513
|
[0004] |
Screw
|
|
| 25. |
VOE471518
|
[0001] |
Rocker arm shaft
|
|
| 26. |
VOE946778
|
[0002] |
Cap plug
|
|
| 27. |
VOE422063
|
[0006] |
Rocker arm
|
|
| 28. |
VOE422066
|
[0006] |
Bushing
|
|
| 29. |
VOE422993
|
[0006] |
Bolt
|
|
| 30. |
VOE940175
|
[0006] |
Nut
|
|
| 31. |
VOE421173
|
[0004] |
Spring
|
|
| 32. |
VOE941488
|
[0004] |
Washer
|
|
| 33. |
VOE914459
|
[0004] |
Snap ring
|
|
