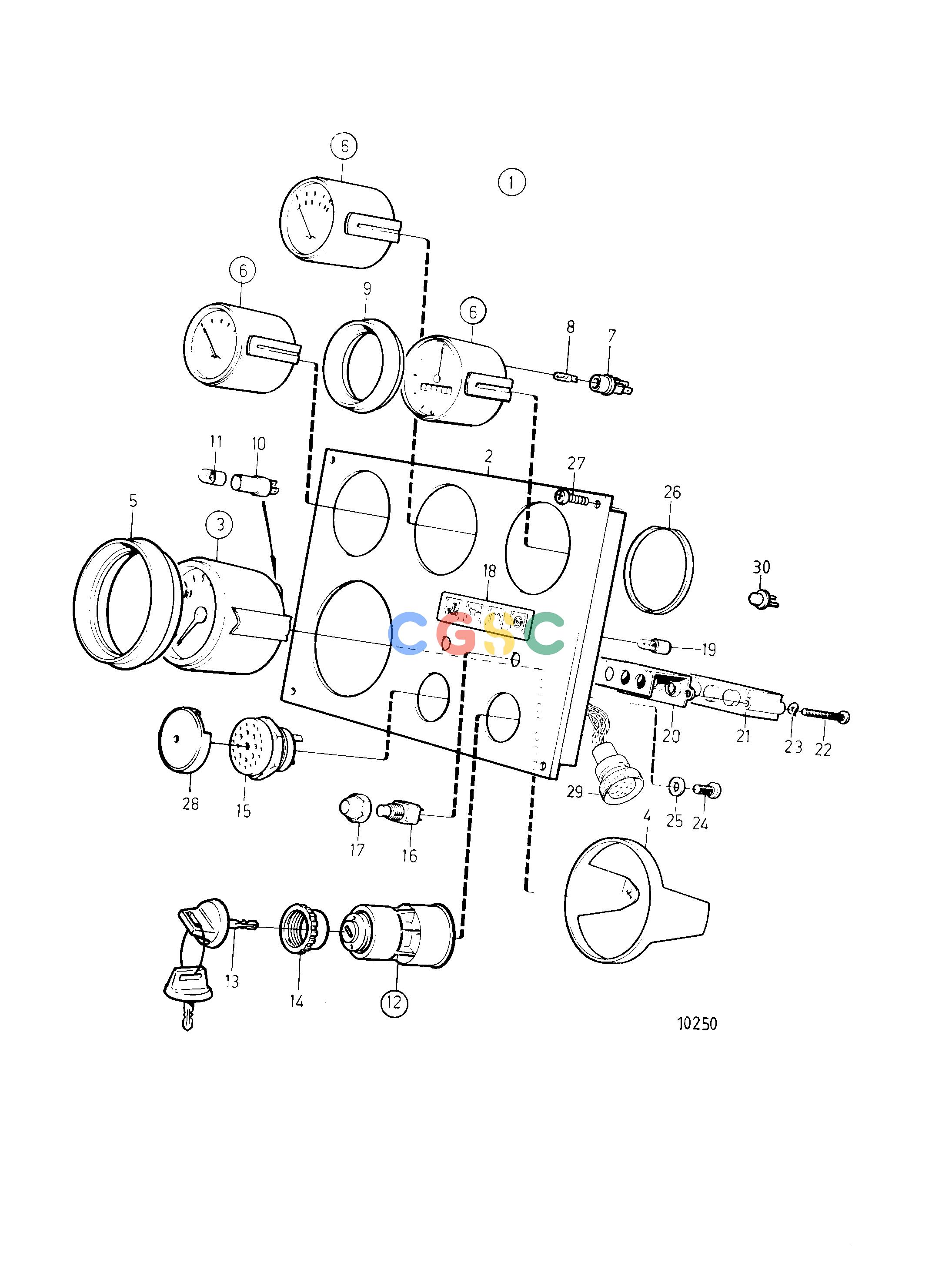

沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DElectrical SystemInstrument Panel 24VEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
446 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864041
|
[1] |
Instrument panel
|
24V
|
| 2. |
860182
|
[1] |
Instrument panel
|
|
| 3. |
854912
|
[1] |
Tachometer
|
|
| 4. |
849523
|
[1] |
Attaching ring
|
|
| 5. |
858644
|
[1] |
Front ring
|
|
| 6. |
863933
|
[1] |
Thermometer
|
|
| 6. |
863935
|
[1] |
Manometer, oil-pressure
|
|
| 6. |
863931
|
[1] |
Voltmeter
|
|
| 7. |
863945
|
[3] |
Bulb socket
|
|
| 8. |
863947
|
[3] |
Bulb
|
24V
|
| 9. |
858643
|
[3] |
Front ring
|
|
| 10. |
808175
|
[1] |
Bulb socket
|
|
| 11. |
182059
|
[1] |
Bulb
|
24V
|
| 12. |
864277
|
[1] |
Starter switch
|
|
| 13. |
859953
|
[2] |
Key
|
State key code when ordering
|
| 14. |
859955
|
[1] |
Plastic nut
|
|
| 15. |
828587
|
[1] |
Buzzer
|
|
| 16. |
828584
|
[1] |
Toggle switch
|
Alarm test
|
| 16. |
828585
|
[1] |
Toggle switch
|
Instr. light
|
| 17. |
828586
|
[2] |
Nut
|
|
| 18. |
858645
|
[1] |
Symbol strip
|
|
| 19. |
828818
|
[4] |
Bulb
|
24V
|
| 20. |
828784
|
[1] |
Reflector
|
|
| 21. |
828783
|
[1] |
Electronic unit
|
|
| 22. |
941615
|
[2] |
Cross recessed screw
|
|
| 23. |
941904
|
[2] |
Spring washer
|
|
| 24. |
949947
|
[1] |
Cross recessed screw
|
|
| 25. |
941904
|
[1] |
Spring washer
|
|
| 26. |
828803
|
[3] |
Guide ring
|
|
| 27. |
828647
|
[4] |
Screw
|
|
| 28. |
858795
|
[1] |
Protecting casing
|
|
| 29. |
859050
|
[1] |
Cable kit
|
|
| 30. |
1518870
|
[1] |
Diode
|
|
