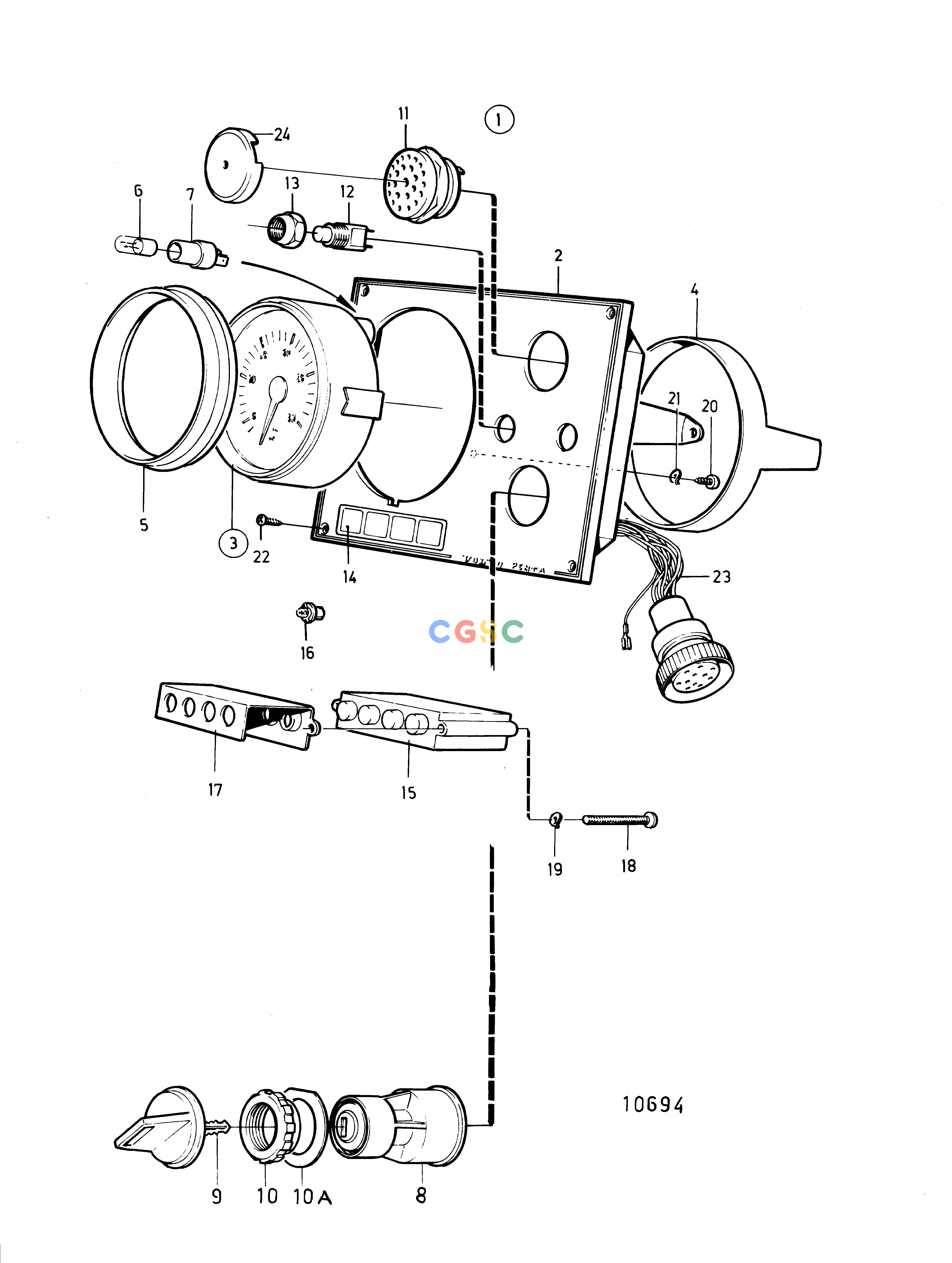

沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DElectrical SystemInstrument Panel for Dual StationEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
836 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864043
|
[1] |
Instrument panel
|
|
| 2. |
860183
|
[1] |
Instrument panel
|
|
| 3. |
838811
|
[1] |
Tachometer
|
|
| 4. |
828558
|
[1] |
Attaching ring
|
|
| 5. |
858644
|
[1] |
Front ring
|
|
| 6. |
19923
|
[1] |
Bulb
|
|
| 7. |
808175
|
[1] |
Bulb socket
|
|
| 8. |
864277
|
[1] |
Starter switch
|
|
| 9. |
859953
|
[1] |
Key
|
|
| 10. |
859955
|
[1] |
Plastic nut
|
|
| 10A. |
860086
|
[1] |
Marking label
|
|
| 11. |
828587
|
[1] |
Buzzer
|
|
| 12. |
828584
|
[1] |
Toggle switch
|
Alarm test
|
| 12. |
828585
|
[1] |
Toggle switch
|
Instr. light
|
| 13. |
828586
|
[2] |
Nut
|
|
| 14. |
858645
|
[1] |
Symbol strip
|
|
| 15. |
828783
|
[1] |
Electronic unit
|
|
| 16. |
19923
|
[4] |
Bulb
|
|
| 17. |
828784
|
[1] |
Reflector
|
|
| 18. |
941615
|
[2] |
Cross recessed screw
|
|
| 19. |
941904
|
[2] |
Spring washer
|
|
| 20. |
949947
|
[1] |
Cross recessed screw
|
|
| 21. |
941904
|
[1] |
Spring washer
|
|
| 22. |
828647
|
[4] |
Screw
|
|
| 23. |
828648
|
[1] |
Cable kit
|
|
| 24. |
858795
|
[1] |
Protecting casing
|
|
