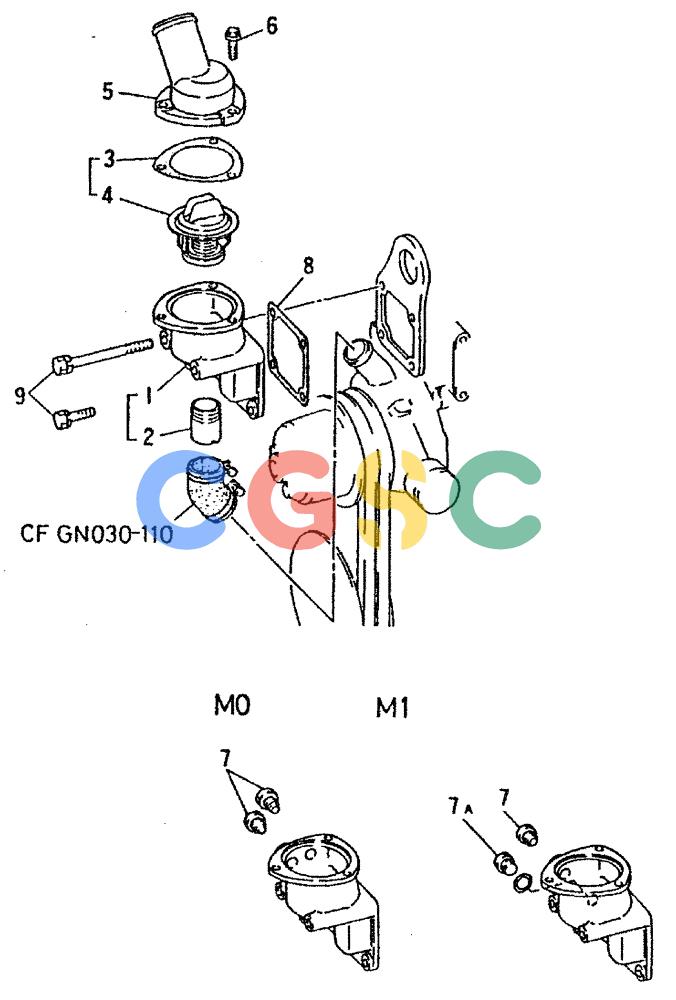

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (02-003) - WATER PIPE & THERMOSTAT P/N ME035274 Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
1012 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME035274 | [1] | CASE | KOBM0 ONLY Superseded by part number: VAME047999 |
| . . | VAME070004 | [1] | M1 ONLY | |
| 1. | VAME035281 | [1] | THERMOSTAT | KOBM0 ONLY Superseded by part number: VAME047981 |
| . . | VAME070005 | [1] | M1 ONLY | |
| 2. | VAME035254 | [1] | UNIVERSAL JOINT | KOBBY-PASS |
| 3-4. | VAME999463 | [1] | THERMOSTAT | KOB76.5C Superseded by part number: 77278300, VAME994514 |
| 3. | VAME035100 | [1] | GASKET | KOB Superseded by part number: VAME303375 |
| 4. | VAME035320 | [1] | THERMOSTAT 76.5C | THERMOSTAT 76.5C |
| 5. | VAME039575 | [1] | COVER | KOB |
| 6. | VAMF140227 | [3] | FLANGE BOLT | KOBBOLT, FLANGE, 8 X 25 |
| 7. | VA3124618702 | [2] | PLUG | KOBPLUG, M0 ONLY Superseded by part number: 240292A1 |
| 7A. | VAM0001300 | [1] | PLUG | KOBPLUG 16, M1 ONLY |
| . . | VAMF660066 | [1] | GASKET | KOBGASKET 16, M1 ONLY Superseded by part number: VAF420216000 |
| 8. | VAME031082 | [1] | GASKET | KOBHANGER Superseded by part number: VAME074770 |
| 9. | VAMH000517 | [2] | BOLT | KOBBOLT, SEAL, 10 X 30 |
| . . | VAMH000537 | [2] | BOLT | KOBBOLT, SEAL, 10 X 105 |
