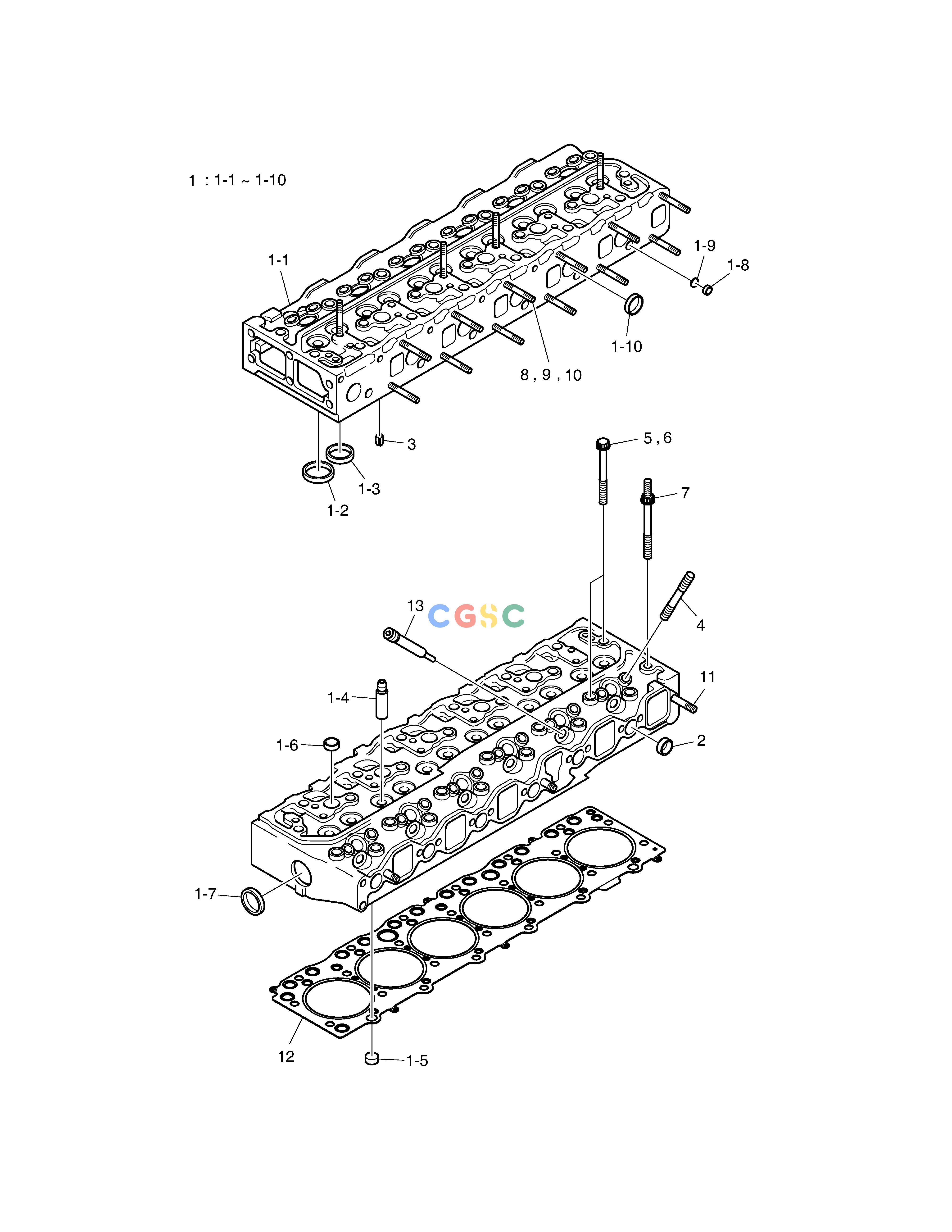

斗山零件查询CYLINDER HEAD DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
558 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150113-00048
|
[1] |
HEAD ASSY,CYLINDER
|
|
| 1-1. |
65.03101-1043D
|
[1] |
. HEAD;CYLINDER
|
|
| 1-10. |
65.90302-0030
|
[6] |
. PLUG;CORE(EXHAUST MAIN)
|
|
| 1-2. |
65.03203-1053
|
[6] |
. SEAT;INLET VALVE
|
|
| 1-3. |
65.03203-1054
|
[6] |
. SEAT;EXHAUST VALVE
|
|
| 1-4. |
65.03201-1063
|
[12] |
. GUIDE,VALVE
|
|
| 1-5. |
65.90302-0045
|
[3] |
. PLUG;CORE
|
|
| 1-6. |
65.90302-0019B
|
[11] |
. PLUG;CORE
|
|
| 1-7. |
65.90302-0015
|
[1] |
. PLUG;CORE(NEAR FACE)
|
|
| 1-8. |
65.90302-0027
|
[6] |
. PLUG;CORE
|
|
| 1-9. |
65.90302-0011
|
[6] |
. PLUG;DRILLED PASS
|
|
| 10. |
06.06125-8709
|
[1] |
BOLT;STUD M8X35
|
|
| 11. |
06.06225-0706
|
[3] |
BOLT;STUD M8X25
|
|
| 12. |
400603-00071
|
[1] |
GASKET KIT,CYLINDER HEAD
|
|
| 13. |
65.26815-0004
|
[6] |
PLUG;DUMMY
|
|
| 2. |
65.90302-0017
|
[6] |
PLUG;WATER JET CORE
|
|
| 3. |
65.91710-0004
|
[2] |
RING;STOPPER
|
|
| 4. |
65.90201-0099
|
[12] |
BOLT;STUD
|
|
| 5. |
65.90021-0002
|
[18] |
BOLT;CYLINDER HEAD
|
|
| 6. |
65.90021-0003
|
[6] |
BOLT;CYLINDER HEAD
|
|
| 7. |
65.90021-0004
|
[2] |
BOLT;CYLINDER HEAD
|
|
| 8. |
06.06125-8717
|
[9] |
BOLT;STUD
|
|
| 9. |
06.06125-8723
|
[2] |
BOLT;STUD M8X110
|
|
