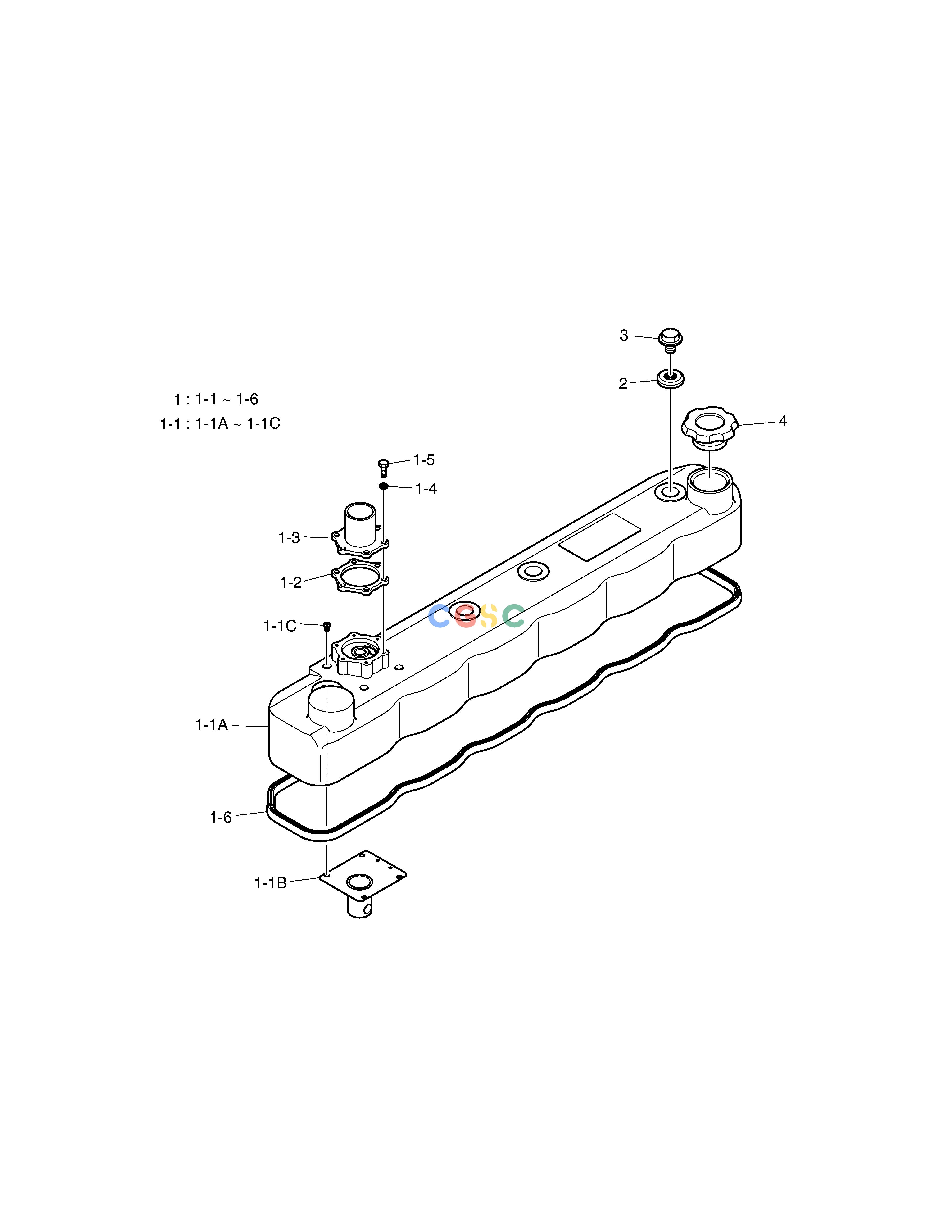

斗山零件查询CYLINDER HEAD AND COVER DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
584 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150106-00006A
|
[1] |
COVER,CYLINDER HEAD
|
|
| 1-1. |
65.03401-6091A
|
[1] |
. COVER,CYLINDER HEAD
|
|
| 1-1A. |
65.03401-0091A
|
[6] |
.. COVER,CYLINDER HEAD
|
|
| 1-1B. |
65.03440-0011
|
[6] |
.. PLATE ASSY
|
|
| 1-1C. |
06.04190-0804
|
[12] |
.. SCREW
|
|
| 1-2. |
65.03903-0001
|
[3] |
. PACKING;BREATHER PIPE
|
|
| 1-3. |
65.01801-0011
|
[11] |
. CASE;BREATHER
|
|
| 1-4. |
06.16731-2104
|
[1] |
. WASHER;SPRING
|
|
| 1-5. |
06.04190-8808
|
[6] |
. BOLT M5X16
|
|
| 1-6. |
400603-00022A
|
[6] |
. GASKET;CYLINDER HEAD COVER
|
|
| 2. |
400603-00023C
|
[6] |
GASKET,COVER PACKING
|
|
| 3. |
120307-00126
|
[6] |
NUT,HEX
|
|
| 4. |
65.01810-5011
|
[2] |
CAP;OIL FILLER
|
|
