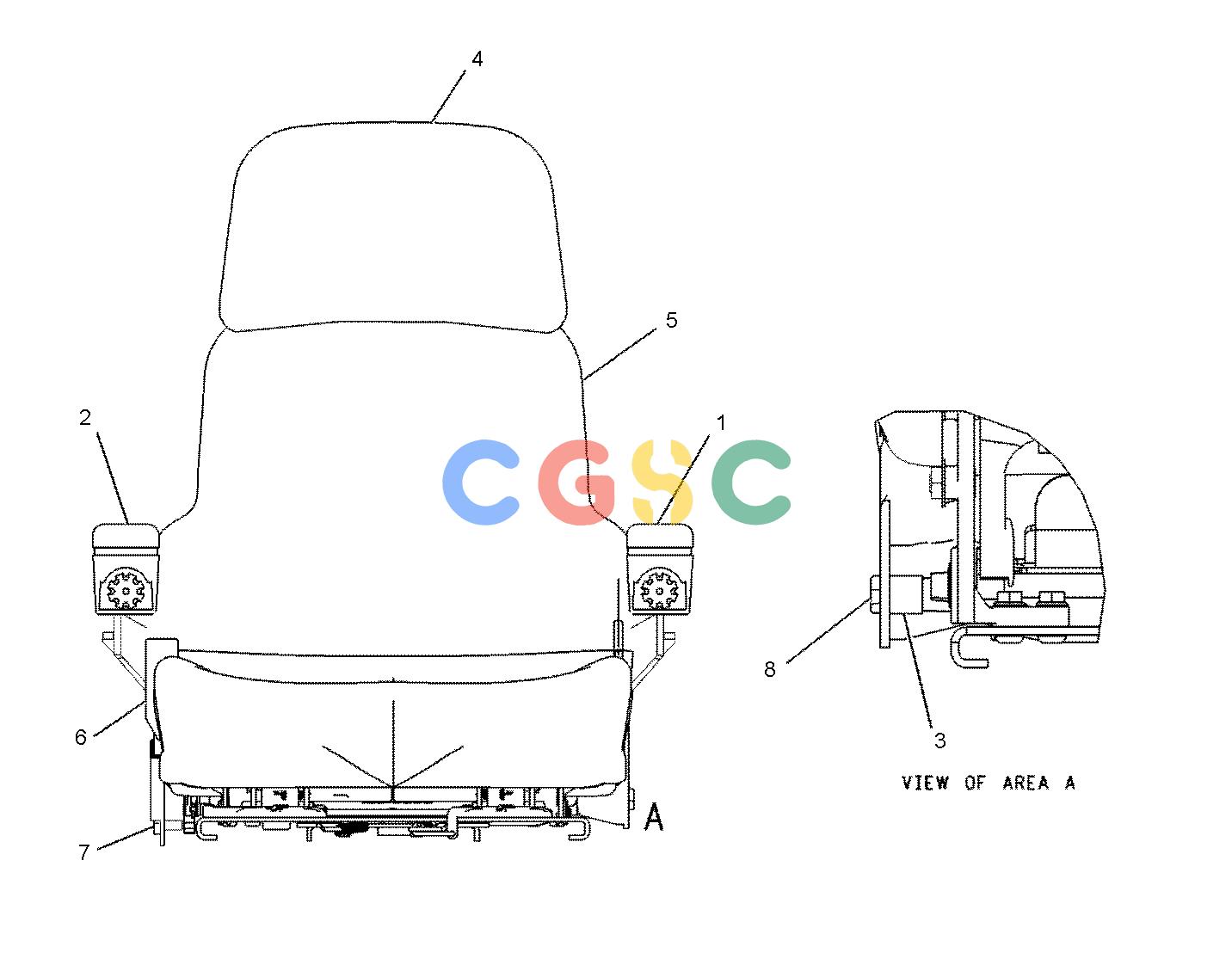

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 162-8447Y | [1] | ARMREST GP(LH) | |
| 2. | 162-8448Y | [1] | ARMREST GP(RH) | |
| 3. | 177-4937 | [1] | SPACER(11.7X19.8X20.3-MM THK) | |
| 4. | 217-9051C | [1] | EXTENSION GP-BACKREST | |
| 5. | 218-8514CY | [1] | SEAT GP(GRAY CLOTH) | |
| 6. | 222-0345CY | [1] | SEAT BELT GP(RETRACTABLE, 3-IN) | |
| 7. | 0T-0244C | [1] | BOLT(7/16-20X1.25-IN) | |
| 8. | 205-6388C | [1] | BOLT(7/16-20X1.75-IN) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| Y | SEPARATE ILLUSTRATION | |||
