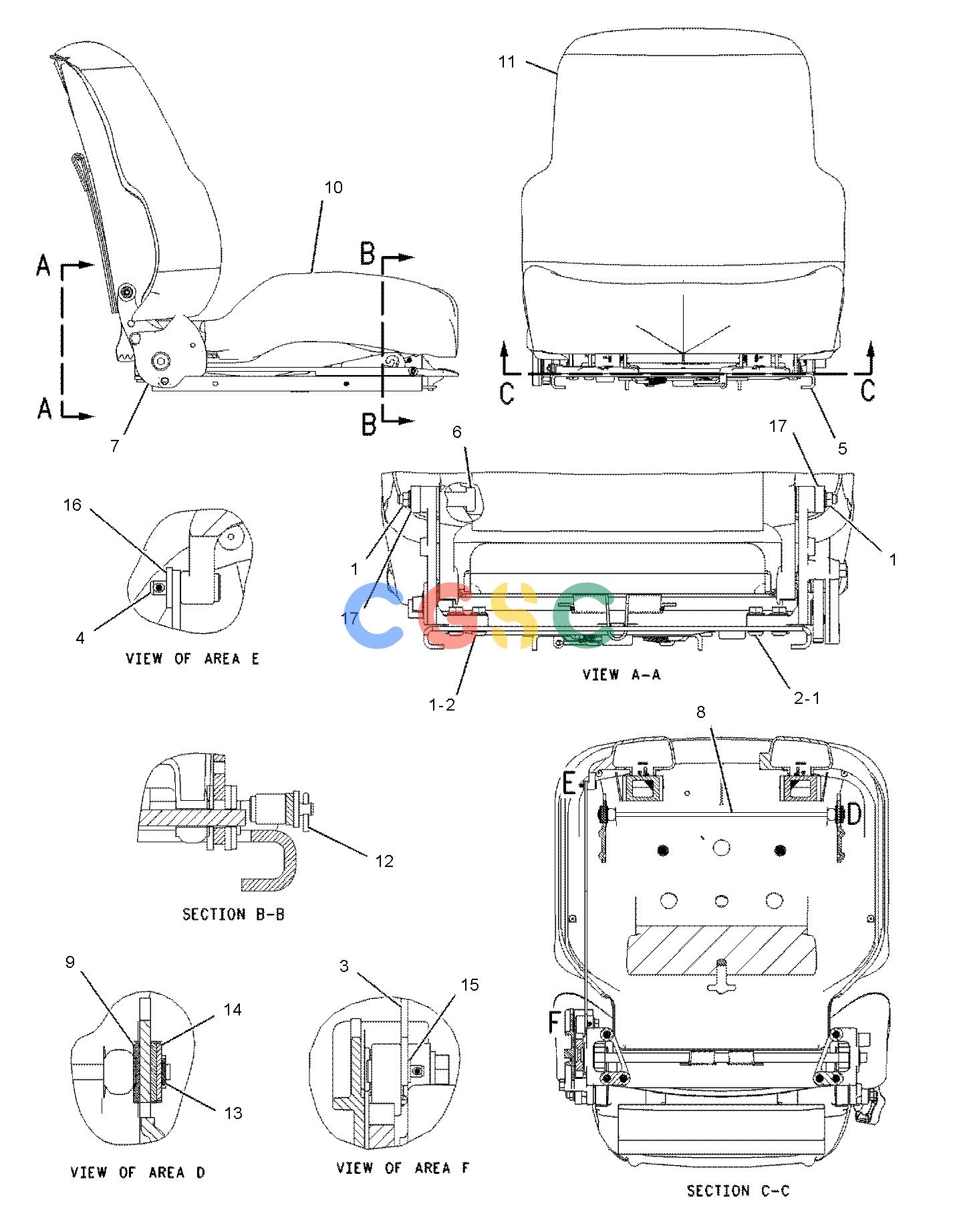

卡特零件查询（725） 218-8514: SEAT GP
广数供应链运营团队, 14 02月, 2025，浏览：
814 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 143-1288 | [8] | LOCKNUT-FLANGE(3/8-16-THD) | |
| 2. | 171-1230 | [6] | SCREW-BUTTON HEAD(3/8-16X1-IN) | |
| 3. | 171-6682 | [1] | BAR | |
| 4. | 172-2416 | [2] | PIN | |
| 5. | 173-1029Y | [1] | ADJUSTER GP-SEAT | |
| 6. | 177-1863 | [2] | BOLT-PIVOT(3/8-16X2.89-IN) | |
| 7. | 210-2270CY | [1] | RECLINER GP-SEAT | |
| 8. | 184-2298 | [1] | ROD | |
| 9. | 184-2299 | [4] | WASHER(7X25.4X2.54-MM THK) | |
| 10. | 218-0861 | [1] | PAN AS | |
| | 8T-9082 | [5] | RIVET-POP | |
| | 217-9049 | [1] | CUSHION AS | |
| 11. | 218-0864Y | [1] | PAN GP-BACKREST(CLOTH) | |
| 12. | 095-0843 | [2] | PIN-COTTER | |
| 13. | 5V-1496 | [2] | RETAINER | |
| 14. | 6V-7646 | [2] | WASHER-HARD(7.2X25X2-MM THK) | |
| 15. | 8T-0328 | [1] | WASHER-HARD(5.5X10X1-MM THK) | |
| 16. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 17. | 8Y-6277 | [2] | SPACER(10.5X28.6X10-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | Y | | SEPARATE ILLUSTRATION |
