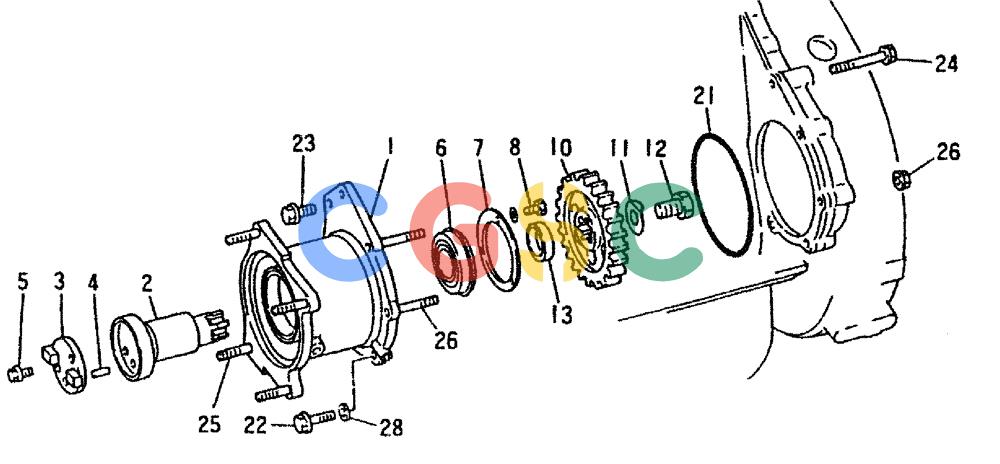

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (05-001) - FUEL INJECTION PUMP DRIVE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
620 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-15. | VAME035645 | [1] | PUMP DRIVE CASE ASSY | |
| 1. | VAME713176 | [1] | CASE ASSY | |
| 2. | VAME713178 | [1] | SHAFT | |
| 3. | VAME713137 | [1] | COUPLING | KOB |
| 4. | VAME713138 | [1] | PIN | PIN |
| 5. | VAME713139 | [2] | BOLT | KOB |
| 6. | VAME713140 | [1] | BEARING | KOB |
| 7. | VAME713141 | [1] | PLATE | PLATE |
| 8. | VAME713142 | [3] | BOLT | BOLT |
| . . | VAMF450405 | [3] | WASHER | KOBWASHER, SPG 8 Superseded by part number: 132502A1 |
| 10. | VAME038015 | [1] | GEAR DRIVE | GEAR DRIVE |
| 11. | VAME713181 | [1] | WASHER LOCK | WASHER LOCK |
| 12. | VAME713182 | [1] | BOLT | BOLT |
| 13. | VAME713180 | [1] | SPACER | SPACER |
| 21. | VAMF520423 | [1] | O-RING | KOBO-RING 135 Superseded by part number: VAF315313500 |
| 22. | VAMH000715 | [2] | SCREW | KOBBOLT, FLANGE, 10 X 35 Superseded by part number: 133276A1 |
| 23. | VAMH000714 | [1] | BOLT | KOBBOLT, FLANGE, 10 X 25 |
| 24. | VAMH000723 | [1] | BOLT | KOBBOLT, FLANGE, 10 X 70 |
| 25. | VAMH002131 | [4] | STUD | KOBSTUD Superseded by part number: 132296A1 |
| 26. | VAMF406296 | [2] | BOLT | KOBSTUD, 10 X 60 |
| . . | VAMF434105 | [2] | NUT | KOBNUT, FLANGE 10 |
| 28. | VAMH005068 | [2] | WASHER | KOBWASHER, PLAIN 10 |
