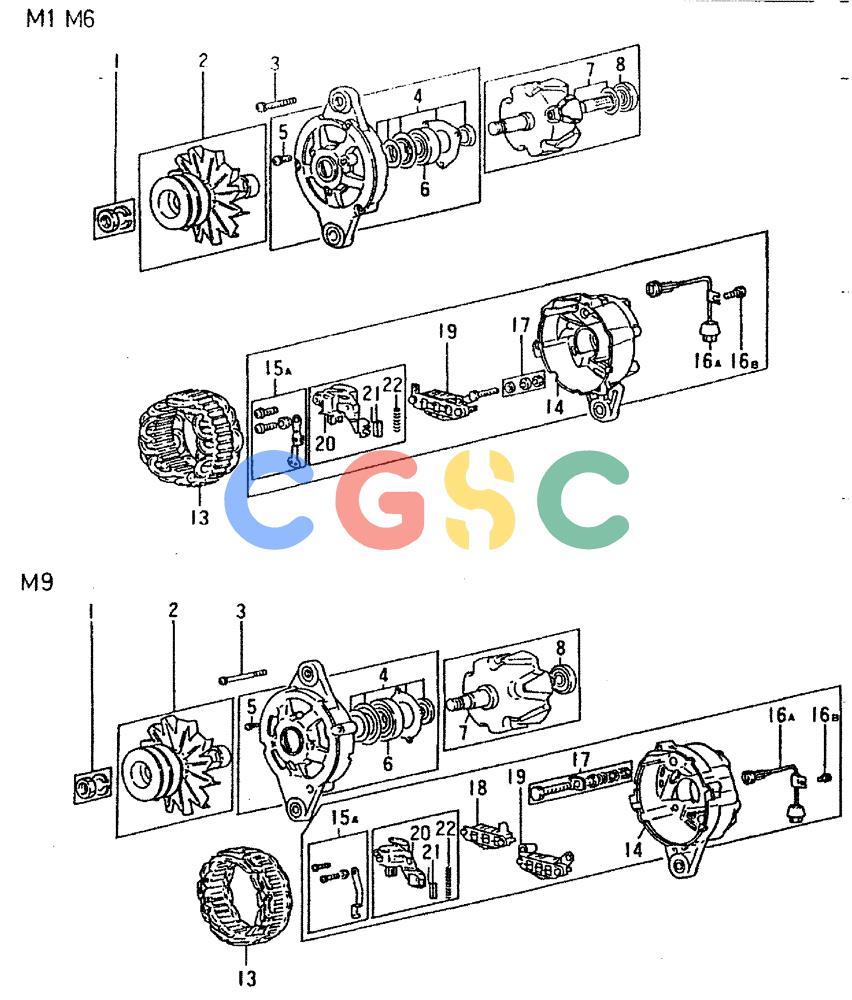

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (04-008) - ALTERNATOR (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
963 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-22. | VAME070120 | [1] | ALTERNATOR | KOB24V-30A M1 ONLY |
| . . | VAME048173 | [1] | 24V-40A M6 ONLY | |
| . . | VAME049171 | [1] | ALTERNATOR | KOB24V-80A M9 ONLY |
| 1. | VAME700588 | [1] | NUT | KOB Superseded by part number: 135142A1 |
| 2. | VAME700589 | [1] | SLEEVE CYLINDER | KOBPULLER BX2 M1 ONLY |
| . . | VAME700609 | [1] | M6 ONLY | |
| . . | VAME700616 | [1] | M9 ONLY | |
| 3. | VAME700590 | [1] | SCREW SET M1 & M6 ONLY | SCREW SET M1 & M6 ONLY |
| . . | VAME700514 | [1] | M9 ONLY | |
| 4-6. | VAME700633 | [1] | PANEL | KOBFR M1 ONLY |
| . . | VAME700648 | [1] | BKT ASSY M6 ONLY | BKT ASSY M6 ONLY |
| . . | VAME700675 | [1] | M9 ONLY | |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET, FR |
| 5. | VAMM502367 | [1] | SCREW SCREW SET | SCREW SCREW SET |
| 6. | VAME700535 | [1] | BEARING | KOBFR M1 ONLY Superseded by part number: VAS930P37201, VAS930P37270 |
| 7-8. | VAME700606 | [1] | ROTOR | KOBM6 ONLY |
| . . | VAME700611 | [1] | ROTOR | KOBM9 ONLY |
| . . | VAME700627 | [1] | | |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONROTOR |
| 8. | VAME700746 | [1] | BALL BEARING | KOBRE Superseded by part number: VAS930P80870 |
| 13. | VAME700607 | [1] | STATOR | KOBSTATOR M1 ONLY |
| . . | VAME700612 | [1] | STATOR | KOBM6 ONLY |
| . . | VAME700621 | [1] | M9 ONLY | |
| 14-22. | VAME700766 | [1] | U-BRACKET | KOBASSY, RE M1 ONLY |
| . . | VAME700824 | [1] | BRACKET | KOBM6 ONLY |
| . . | VAME700762 | [1] | M9 ONLY | |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET, RE |
| 15A. | VAME700596 | [1] | TERMINAL | KOBM1 ONLY |
| . . | VAME700614 | [1] | M6 ONLY | |
| . . | VAME700677 | [1] | M9 ONLY | |
| 16A. | VAME700639 | [1] | HYD CONNECTOR | KOBASSY Superseded by part number: VAA309D11271, 77269928 |
| 16B. | VAME700154 | [1] | BOLT | BOLT |
| 17. | VAME700821 | [1] | NUT | KOBM1 ONLY |
| . . | VAMD607499 | [1] | BOLT AND NUT | KOBM6 ONLY |
| . . | VAME700624 | [1] | SCREW SET M9 ONLY | |
| 18. | VAME700763 | [1] | RECTIFIRE ASSY M9 ONLY | |
| 19. | VAME700767 | [1] | RECTIFIER | KOBASSY M1 ONLY |
| . . | VAME700850 | [1] | RECTIFIER | KOBM6 ONLY Superseded by part number: VAA860T22470 |
| . . | VAME700678 | [1] | M9 ONLY | |
| 20-22. | VAME700635 | [1] | REGULATOR | KOBASSY Superseded by part number: VAA866T06870 |
| 20. | NSS | [1] | NOT SOLD SEPARAT | CONREGULATOR |
| 21. | VAMM502377 | [2] | BRUSH | KOBBRUSH |
| 22. | VAMM502378 | [2] | SPRING SPRING, BRUSH | SPRING SPRING, BRUSH |
