沃尔沃零件查询A25C VOLVO BM Cylinder liner and pistonVOLVO BM A25C SER NO - 10256/ - 60911 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
681 次

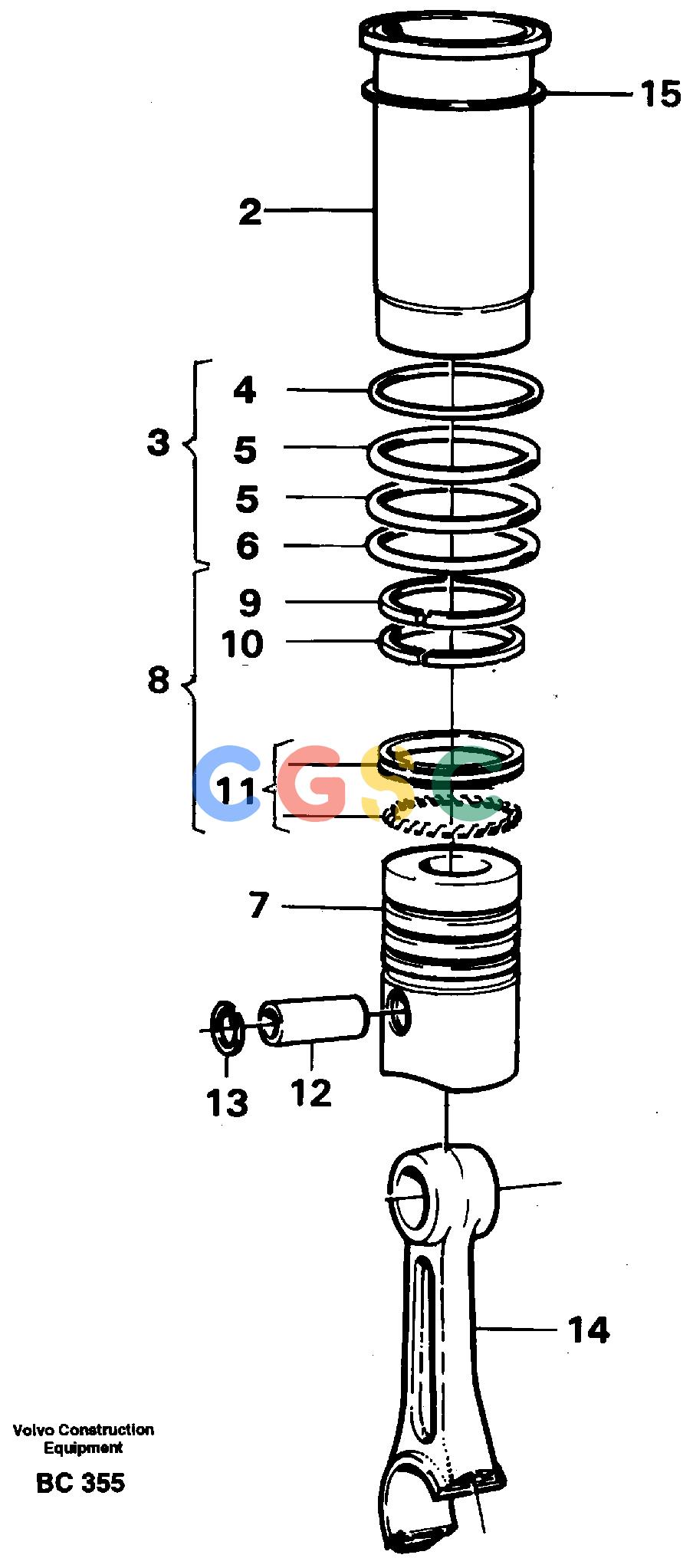

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE275641
|
[6] |
Cylinder liner kit
|
ENG - 97292
|
| |
VOE276900
|
[6] |
Cylinder liner kit
|
ENG 97293 -
|
| 2. |
VOE477510
|
[6] |
Cylinder Liner
|
|
| 3. |
VOE271159
|
[6] |
Sealing ring kit
|
|
| 4. |
VOE471419
|
[6] |
Sealing ring
|
|
| 5. |
VOE471424
|
[12] |
Oil feed pipe
|
|
| 6. |
VOE424831
|
[6] |
Sealing ring
|
|
| 7. |
VOE477470
|
[6] |
Piston
|
|
| 8. |
VOE276037
|
[6] |
Piston ring kit
|
|
| 9. |
VOE864158
|
[6] |
Compression ring
|
|
| 10. |
VOE477492
|
[6] |
Compression ring
|
|
| 11. |
VOE477493
|
[6] |
Oil ring
|
|
| 12. |
VOE3978589
|
[6] |
Gudgeon pin
|
|
| 13. |
VOE914525
|
[12] |
Retaining ring
|
|
| |
|
|
None
|
|
| 14. |
|
[6] |
Connecting rod
|
|
| |
|
|
None
|
|
| 15. |
VOE466878
|
[REQ] |
Shim
|
THICK = 0.12 MM
|
| |
VOE466114
|
[REQ] |
Shim
|
THICK = 0.20 MM
|
| |
VOE466183
|
[REQ] |
Shim
|
THICK = 0.30 MM
|
| |
VOE466184
|
[REQ] |
Shim
|
THICK = 0.50 MM
|
