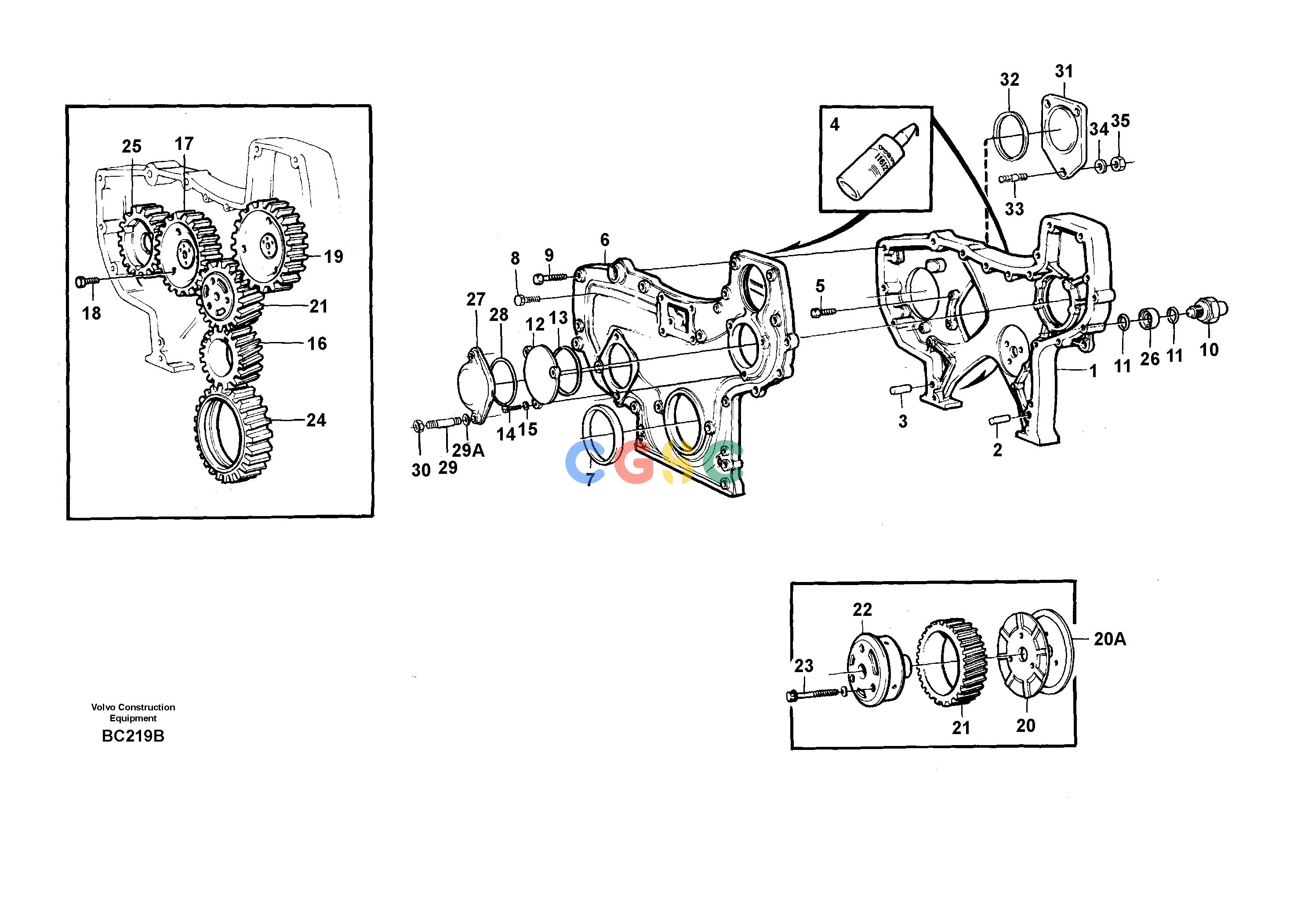

沃尔沃零件查询A25C VOLVO BM Timing gear casing and gearsVOLVO BM A25C SER NO - 10256/ - 60911 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
591 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE471505
|
[1] |
Timing gear casing
|
|
| 2. |
VOE13941510
|
[1] |
Pin
|
|
| 3. |
VOE13941511
|
[1] |
Pin
|
|
| 4. |
VOE1161277
|
[REQ] |
Sealant
|
20 g
|
| 5. |
VOE471534
|
[2] |
Screw
|
L = 28
|
| |
VOE471535
|
[2] |
Screw
|
L = 58
|
| |
|
|
None
|
|
| |
VOE471562
|
[1] |
Timing gear cover
|
ENG - 69049
|
| 6. |
VOE471506
|
[1] |
Timing gear cover
|
|
| 7. |
VOE477118
|
[1] |
Sealing ring
|
|
| |
VOE8192590
|
[1] |
Timing gear cover
|
ENG 69050 - 82971
|
| 6. |
VOE477958
|
[1] |
Timing gear cover
|
|
| 7. |
VOE477118
|
[1] |
Sealing ring
|
|
| |
VOE8192590
|
[1] |
Timing gear cover
|
ENG 82972 -
|
| 6. |
VOE8192589
|
[1] |
Timing gear cover
|
|
| 7. |
VOE477118
|
[1] |
Sealing ring
|
|
| |
|
|
None
|
|
| 8. |
VOE965225
|
[1] |
Flange screw
|
|
| 9. |
VOE13947760
|
[7] |
Screw
|
L = 40, (947760)
ENG - 76341
|
| |
VOE13947760
|
[5] |
Screw
|
L = 40
ENG 76342 -
|
| |
VOE13948217
|
[2] |
Screw
|
L = 45, (948217)
|
| |
VOE13965216
|
[1] |
Screw
|
L =55, (965216)
|
| |
VOE13965182
|
[6] |
Screw
|
L = 80, (965182)
|
| |
VOE13965180
|
[2] |
Screw
|
L = 60, ENG 76342 -
|
| |
VOE13965183
|
[1] |
Flange screw
|
L = 90, (965183)
|
| 10. |
VOE1578698
|
[1] |
Tachometer sensor
|
|
| 11. |
VOE925059
|
[2] |
O-ring
|
|
| 12. |
VOE471559
|
[1] |
Cover
|
|
| 13. |
VOE925257
|
[1] |
O-ring
|
|
| 14. |
VOE13945444
|
[3] |
Screw
|
|
| 15. |
VOE13941907
|
[3] |
Washer
|
|
| 16. |
|
[1] |
Gear
|
|
| 17. |
VOE478297
|
[1] |
Gear
|
|
| 18. |
VOE471555
|
[3] |
Screw
|
|
| 19. |
|
[1] |
Gear
|
|
| 20. |
VOE478951
|
[1] |
Thrust washer
|
ENG - 82971, (467529)
|
| |
VOE478951
|
[2] |
Thrust washer
|
ENG 82972 -
|
| 20A. |
VOE478954
|
[1] |
Bearing shield
|
ENG 82972 -
|
| 21. |
VOE8192518
|
[1] |
Idler gear
|
ENG - 82971
(471552)
|
| |
VOE8192578
|
[1] |
Idler gear
|
ENG 82972 -
|
| |
VOE479687
|
[1] |
Bushing
|
|
| 22. |
VOE422766
|
[1] |
Pin
|
ENG - 82971, (467463)
|
| |
VOE8192636
|
[1] |
Idler gear
|
ENG 82972 -
|
| 23. |
VOE471554
|
[3] |
Screw
|
ENG - 82971
|
| |
VOE8192579
|
[3] |
Screw
|
ENG 82972 -
|
| 23A. |
VOE942180
|
[3] |
Disc spring
|
ENG 82972 -
|
| 24. |
|
[1] |
Oilpump gear
|
|
| 25. |
|
[1] |
Compressor gear
|
|
| 26. |
VOE865808
|
[1] |
Spacer sleeve
|
|
| 27. |
VOE465735
|
[1] |
Cover
|
|
| 28. |
VOE925094
|
[1] |
O-ring
|
|
| 29. |
VOE479972
|
[1] |
Stud
|
M10 x 45 x 30
|
| |
VOE479973
|
[1] |
Stud
|
M10 x 80 x 65
|
| 29A. |
VOE955895
|
[2] |
Plain washer
|
|
| 30. |
VOE13971095
|
[2] |
Flange nut
|
(971095)
|
| 31. |
VOE420178
|
[1] |
Cover
|
|
| 32. |
VOE13975610
|
[1] |
O-ring
|
|
| 33. |
VOE967951
|
[3] |
Stud
|
|
| 34. |
VOE955899
|
[3] |
Plain washer
|
|
| 35. |
VOE13971073
|
[3] |
Hexagon nut
|
|
