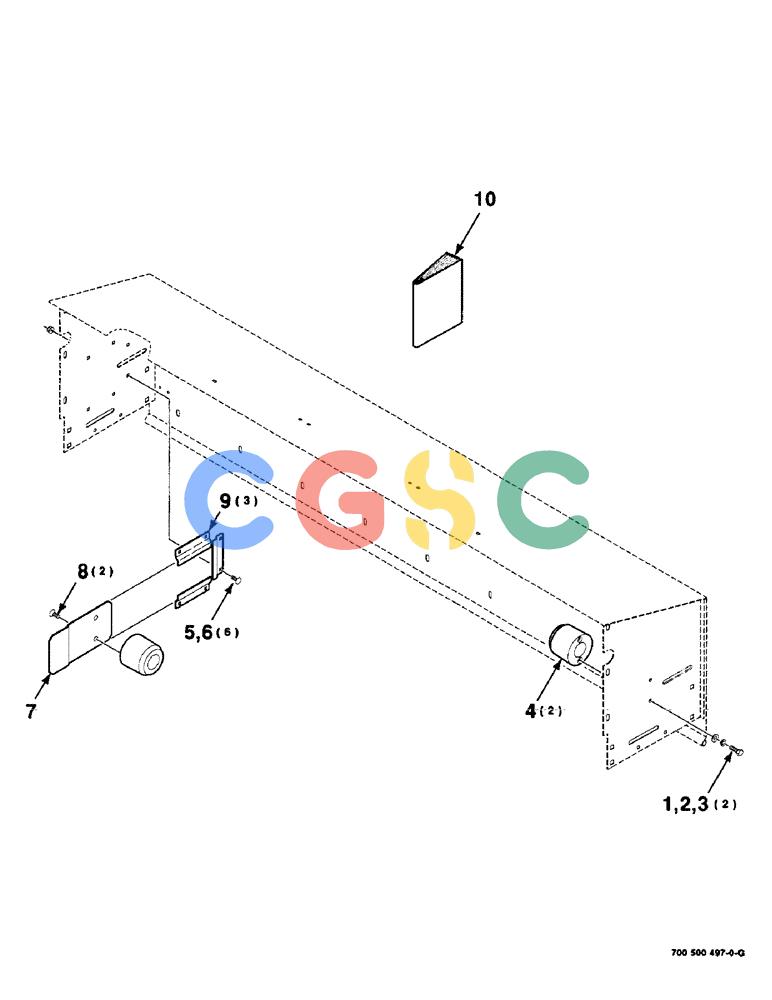

凯斯零件查询(8465) - CASE IH AUTO ROUND BALER (1/91-12/97) (9-92) - MESH WRAP SPOOL KIT, SERIAL NUMBER CFH0073001 THROUGH CFH0073137 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
870 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-516
|
[2] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5
|
CAS
C Hex, 5/16"-18 x 1", G5, Full Thd Superseded by part number: 9635884, 72187198
|
| 2. |
492-11031
|
[2] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 3. |
496-21034
|
[2] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 4. |
700127924
|
[2] |
MOUNTING PARTS
|
CAS
MOUNTING - spool
|
| 5. |
434-412
|
[6] |
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5
|
CAS
1/4-20 X 3/4 RHSNB Superseded by part number: 280638
|
| 6. |
1703354
|
[6] |
NUT
|
IH
1/4-20 HFTLN GR/G
|
| 7. |
700128345
|
[1] |
LARGE PLATE
|
CAS
PLATE
|
| 8. |
164-40
|
[2] |
HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"
|
CAS
5/16-18 X 3/4 HSFCHCS SPECIAL Superseded by part number: 61-43112
|
| 9. |
700128344
|
[3] |
SUPPORT
|
CAS
|
| 10. |
700713236
|
[1] |
INSTRUCTION
|
HFI
S - assembly
|
