卡特零件查询（725） 246-6445: SEAT GP-SUSPENSION
广数供应链运营团队, 14 02月, 2025，浏览：
315 次

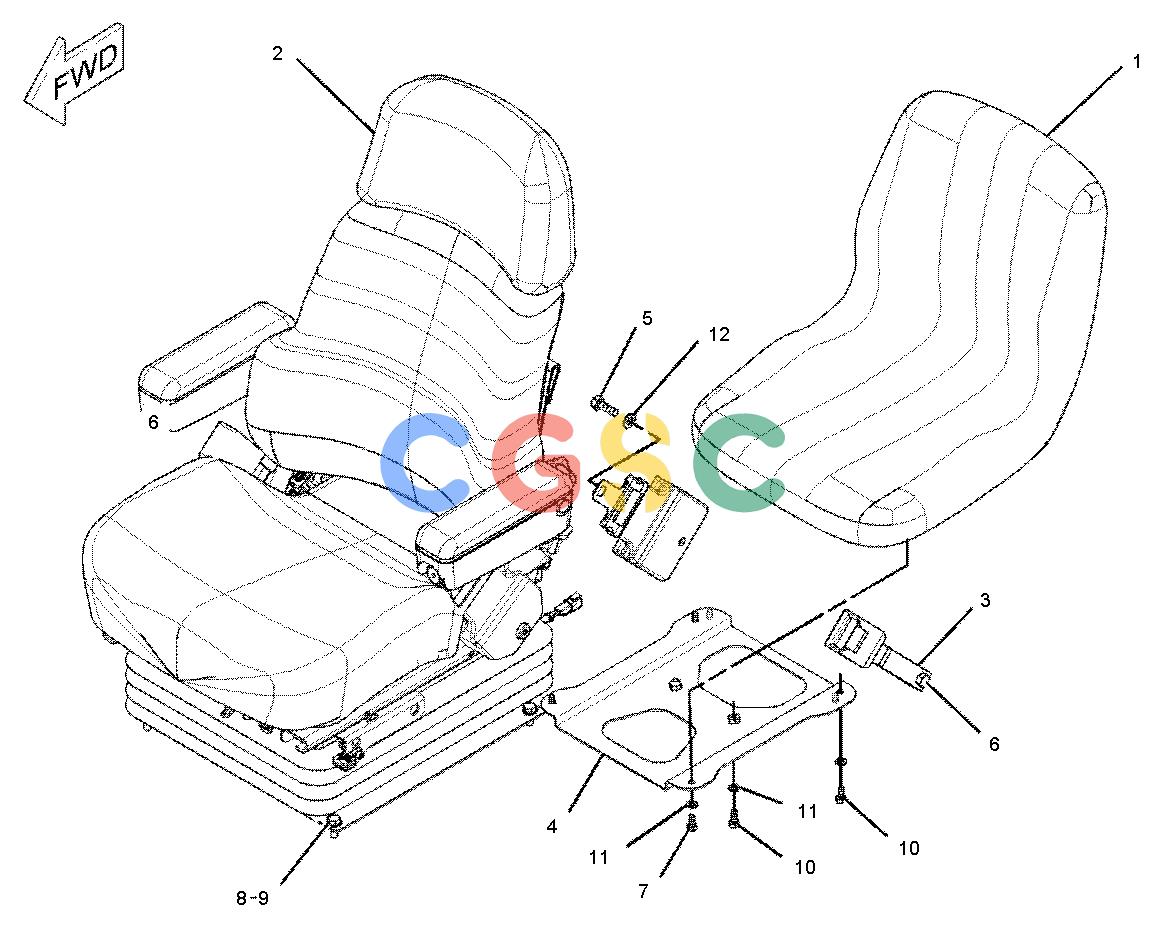

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 145-2894 | [1] | SEAT AS(CLOTH) | |
| 2. | 200-3173Y | [1] | SEAT GP-SUSPENSION(CLOTH) | |
| 3. | 222-0345Y | [1] | SEAT BELT GP(RETRACTABLE, 3-IN) | |
| 4. | 246-6446 | [1] | PLATE AS | |
| 5. | 0T-0244 | [1] | BOLT(7/16-20X1.25-IN) | |
| 6. | 0T-0489 | [1] | BOLT(7/16-20X2-IN) | |
| 7. | 5K-0906 | [4] | BOLT(5/16-18X0.625-IN) | |
| 8. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 10. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 11. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 12. | 8T-5360 | [1] | WASHER(12X22.5X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
