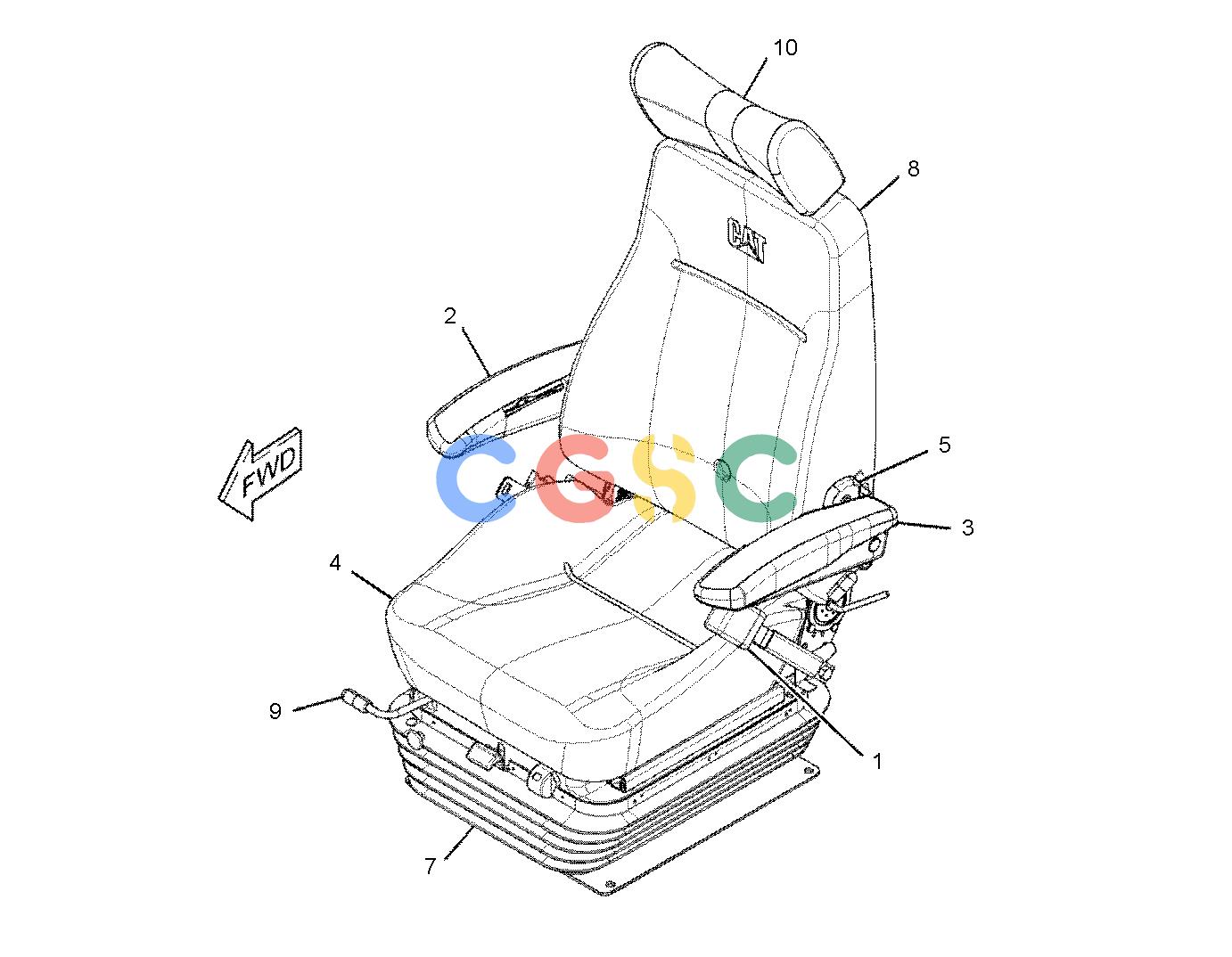

卡特零件查询（725） 279-2301: SEAT GP-SUSPENSION
广数供应链运营团队, 14 02月, 2025，浏览：
338 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 222-0345Y | [1] | SEAT BELT GP(RETRACTABLE, 3-IN) | |
| 2. | 242-8764 | [1] | SUPPORT(RH) | |
| 3. | 242-8765 | [1] | SUPPORT(LH) | |
| 4. | 331-0085 | [1] | MOUNT AS | |
| | 3W-9670 | [2] | BOSS | |
| | 7X-0312 | [1] | BOLT(7/16-14X2.5-IN) | |
| | 8T-9382 | [1] | BOLT(7/16-14X1.25-IN) | |
| 5. | 246-4190 | [1] | KNOB AS | |
| 7. | 279-2302Y | [1] | SUSPENSION GP-SEAT | |
| 8. | 279-2304 | [1] | SEAT GP | |
| | 279-2305 | [1] | COVER-SEAT | |
| | 279-2306 | [1] | COVER-BACK | |
| 9. | 279-2307 | [1] | RAIL AS-SLIDE | |
| 10. | 285-8298 | [1] | EXTENSION AS | |
| | Y | | SEPARATE ILLUSTRATION |
