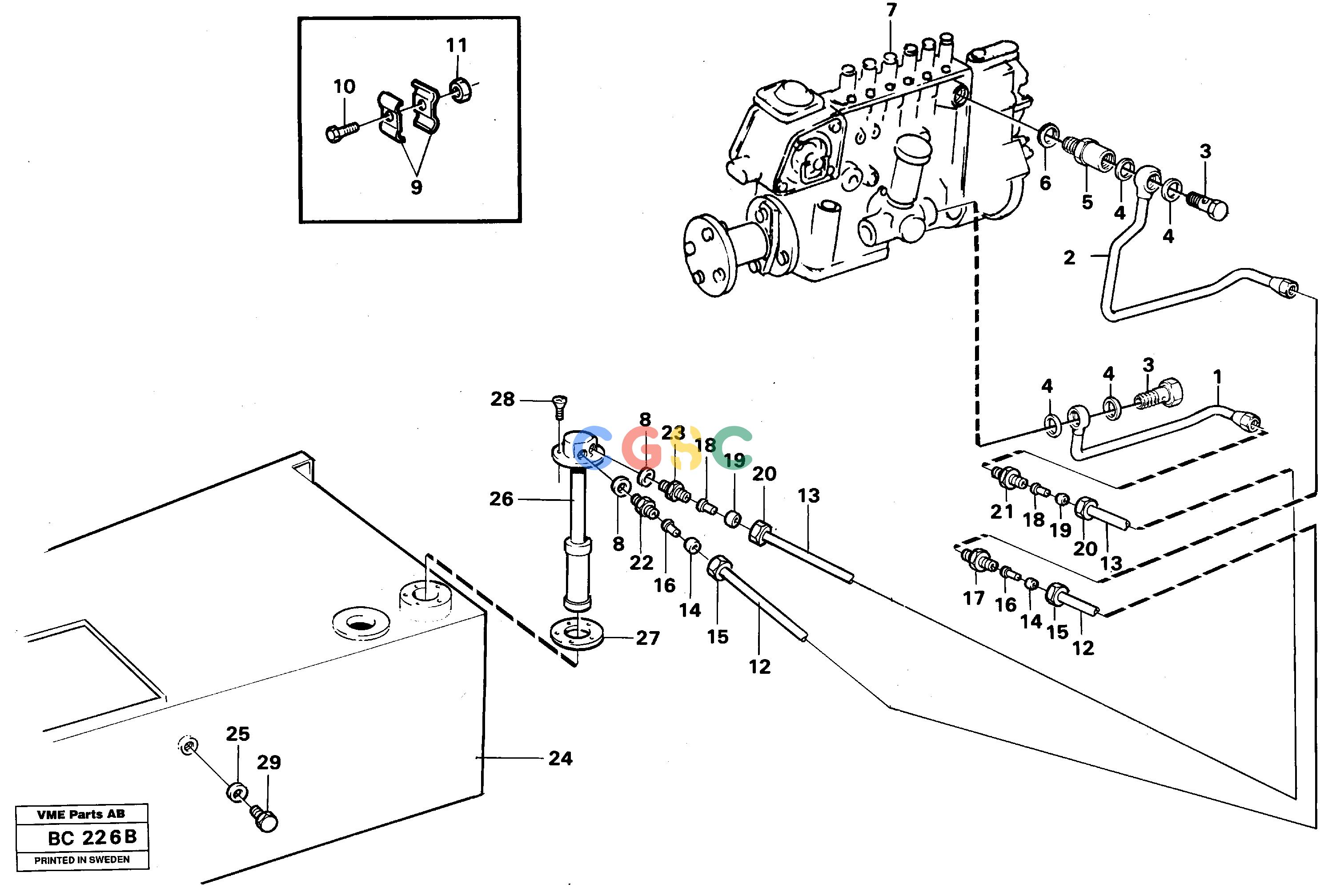

沃尔沃零件查询A25C VOLVO BM Fuel pipe - Fuel tankVOLVO BM A25C SER NO - 10256/ - 60911 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
365 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11030760
|
[1] |
Fuel pipe
|
|
| 2. |
VOE11030761
|
[1] |
Fuel pipe
|
|
| 3. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 4. |
VOE13969011
|
[4] |
Gasket
|
|
| 5. |
|
[1] |
Owerflow valve
|
|
| 6. |
VOE13969011
|
[1] |
Gasket
|
|
| 7. |
|
[1] |
Fuel pump
|
|
| 8. |
VOE957178
|
[2] |
Gasket
|
|
| 9. |
VOE404279
|
[6] |
Clamp
|
|
| 10. |
VOE60111867
|
[2] |
Hexagon screw
|
L = 25
|
| |
VOE956095
|
[4] |
Cross recessed screw
|
L = 20
|
| 11. |
VOE13955781
|
[4] |
Nut
|
|
| 12. |
VOE13945461
|
[REQ] |
Plastic pipe
|
L = 435
|
| 13. |
VOE945462
|
[REQ] |
Tube
|
L = 430
|
| 14. |
VOE326599
|
[2] |
Ferrule
|
|
| 15. |
VOE326596
|
[2] |
Fitting nut
|
|
| 16. |
VOE967559
|
[2] |
Sleeve
|
|
| 17. |
VOE13945426
|
[1] |
Nipple
|
|
| 18. |
VOE967548
|
[2] |
Support sleeve
|
|
| 19. |
VOE326600
|
[2] |
Sleeve
|
|
| 20. |
VOE326597
|
[2] |
Fitting nut
|
|
| 21. |
VOE13945562
|
[1] |
Nipple
|
|
| 22. |
VOE13945903
|
[1] |
Nipple
|
|
| 23. |
VOE945906
|
[1] |
Nipple
|
|
| 24. |
|
[1] |
Fender
|
|
| 25. |
VOE948883
|
[1] |
Gasket
|
|
| 26. |
VOE1502874
|
[1] |
Strainer
|
|
| 27. |
VOE7089865
|
[1] |
Gasket
|
|
| 28. |
VOE956186
|
[5] |
Cross recessed sunk screw
|
|
| 29. |
VOE960631
|
[1] |
Plug
|
|
