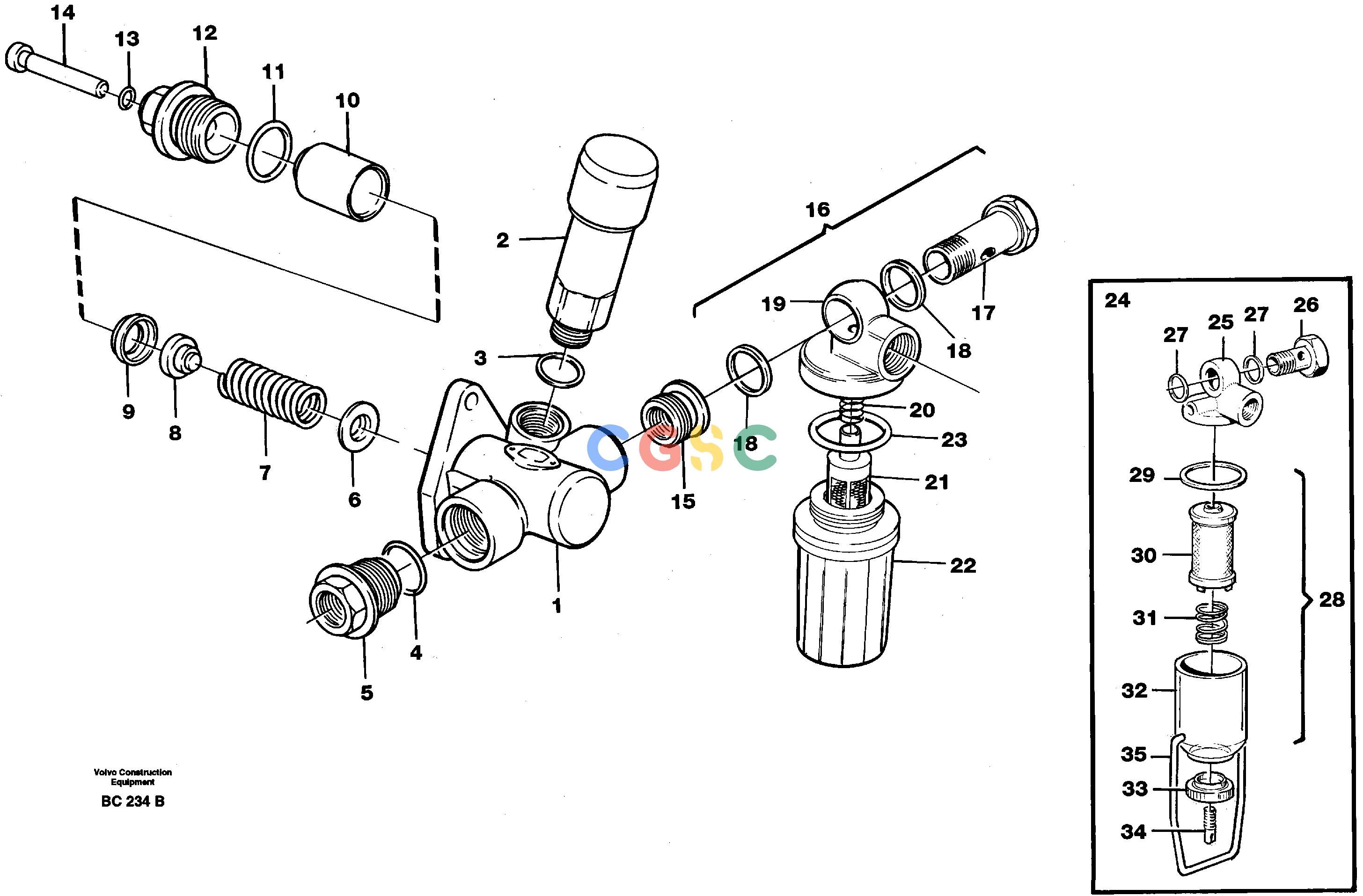

沃尔沃零件查询A25C VOLVO BM Feed pumpVOLVO BM A25C SER NO - 10256/ - 60911 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
238 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11998350
|
|
Feed pump
|
|
| 1. |
|
[1] |
Housing
|
|
| 2. |
VOE11716756
|
[1] |
Hand pump
|
|
| 3. |
VOE240572
|
[1] |
Gasket
|
|
| 4. |
VOE244838
|
[1] |
O-ring
|
|
| 5. |
VOE244837
|
[1] |
Nipple
|
|
| 6. |
VOE244833
|
[2] |
Spring disc
|
|
| 7. |
VOE862462
|
[1] |
Compression spring
|
|
| 8. |
VOE244834
|
[1] |
Valve
|
|
| 9. |
VOE11706665
|
[1] |
Spacer ring
|
|
| 10. |
VOE244831
|
[1] |
Piston
|
|
| 11. |
VOE15031180
|
[1] |
O-ring
|
|
| 12. |
VOE244827
|
[1] |
Nipple
|
|
| 13. |
VOE11716292
|
[1] |
O-ring
|
|
| 14. |
VOE862461
|
[1] |
Push rod
|
|
| 15. |
VOE244836
|
[1] |
Bushing
|
|
| 16. |
VOE11993520
|
[1] |
Pre-cleaner
|
E PROD
|
| 17. |
VOE11998351
|
[1] |
Hollow screw
|
|
| 18. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 19. |
|
[1] |
Cover
|
|
| 20. |
VOE11993690
|
[1] |
Spring
|
|
| 21. |
VOE11702691
|
[1] |
Filter
|
|
| 22. |
VOE11702691
|
[1] |
Filter
|
|
| 23. |
VOE11993688
|
[1] |
O-ring
|
|
| 24. |
VOE7077989
|
[1] |
Pre-cleaner
|
L PROD
|
| 25. |
VOE7076707
|
[1] |
Retainer
|
|
| 26. |
VOE11998351
|
[1] |
Hollow screw
|
|
| 27. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 28. |
VOE3094599
|
[1] |
Filter kit
|
|
| 29. |
|
[1] |
Gasket
|
(7025284)
|
| 30. |
|
[1] |
Filter
|
|
| 31. |
VOE7025285
|
[1] |
Spring
|
|
| 32. |
|
[1] |
Glass
|
(7025283)
|
| 33. |
VOE3095481
|
[1] |
Tensioning screw
|
|
| 34. |
VOE3095481
|
[1] |
Tensioning screw
|
|
| 35. |
VOE3095481
|
[1] |
Tensioning screw
|
|
