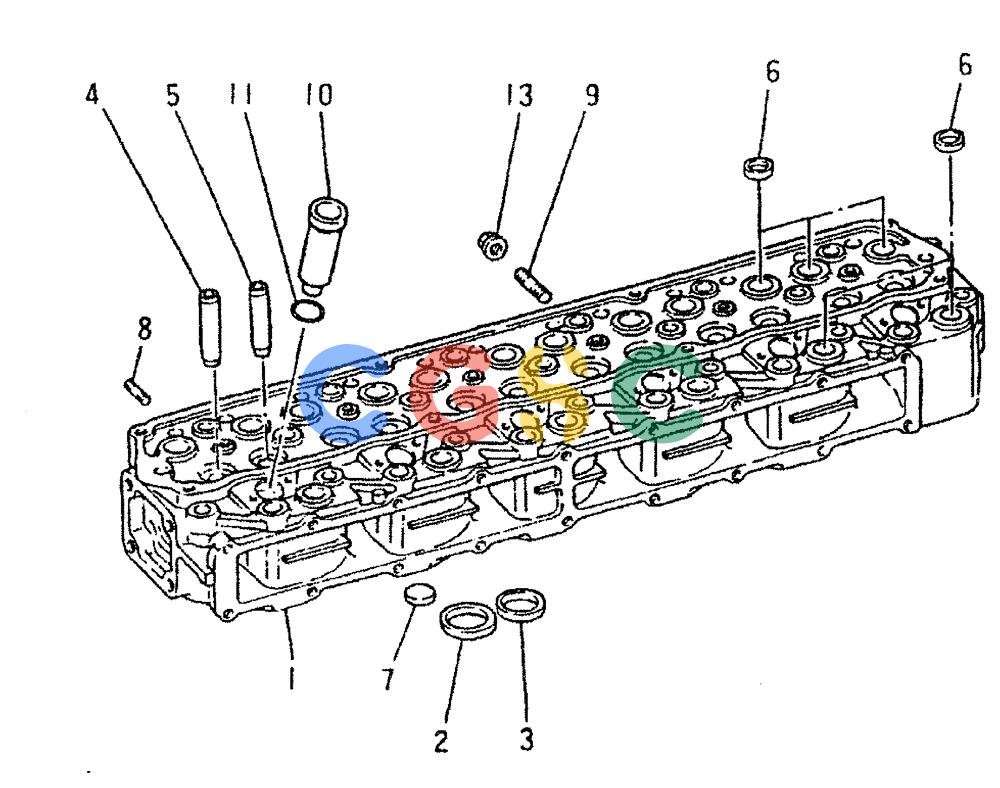

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (08-003) - CYLINDER HEAD REPAIR KIT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
360 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-13. | VAME999907 | [1] | CYLINDER HEAD | KOBCYLINDER 6D14T, 15T, M1 ONLY Superseded by part number: VAME997377 |
| . . | VAME999453 | [1] | HEAD ASSY CYLINDER 6D15, M2 ONLY | HEAD ASSY CYLINDER 6D15, M2 ONLY |
| . . | VAME999909 | [1] | 6D16T, 15T2, M6 ONLY | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHEAD, CYL, ME071105, M1 ONLY |
| . . | NSS | [1] | NOT SOLD SEPARAT | CONME030806, M2 ONLY |
| 2. | VAME071109 | [6] | INSERT | KOBM1 ONLY |
| . . | VAME071002 | [6] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE M2 ONLY |
| . . | VAME071109 | [6] | INSERT | KOBM6 ONLY |
| 3. | VAME071218 | [6] | SEAT ACCESSORY | KOBM1 & M6 ONLY Superseded by part number: VAME071303 |
| . . | VAME031933 | [6] | VALVE | KOBM2 ONLY Superseded by part number: VAME031934 |
| 4. | VAME031886 | [6] | GUIDE | KOBVALVE INLET |
| 5. | VAME031888 | [6] | GUIDE | KOBVALVE |
| 6. | VAMS666137 | [18] | CAP | KOBCAP, SEALING 25 |
| 7. | VAMS666136 | [5] | PLUG | KOBCAP, SEALING 22 |
| 8. | VAMH002111 | [1] | STUD | KOBSTUD, 8 X 20 |
| 9. | VAMH602169 | [12] | STUD RUM | |
| 10. | VAME030855 | [6] | TUBE | KOB |
| 11. | VAMH035157 | [6] | O-RING | KOBO-RING, TUBE Superseded by part number: 132299A1 |
| 13. | VAMH004054 | [12] | NUT | KOBFLANGE 10 Superseded by part number: 134868A1 |
