神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (08-002) - CYLINDER BLOCK REPAIR KIT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
725 次

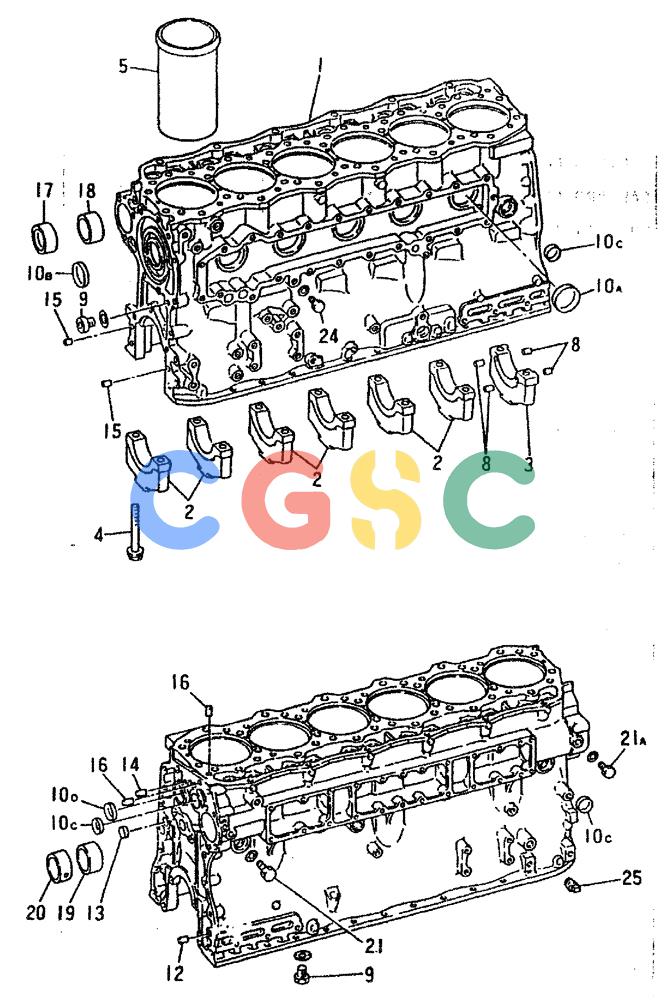

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-25. | VAME999936 | [1] | CRANKCASE ASSY 6D16, 16T | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCRANKCASE, M12, ME070792 |
| 2. | NSS | [6] | NOT SOLD SEPARAT | CONCAP, BRG FR & MI, ME031914 |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG RE, ME031915 |
| 4. | VAME031865 | [14] | SCREW | KOBBOLT, 14 X 108 |
| 5. | VAME041105 | [6] | LINER, ENGINE CYLIND | KOBLINER, CYL B SIZE 1, ME041121 |
| . . | VAME041106 | [6] | LINER, ENGINE CYLIND | KOBB SIZE 2 |
| . . | VAME041107 | [6] | LINER, ENGINE CYLIND | KOBB SIZE 3 |
| 8. | VAMH012041 | [6] | PIN | KOBPIN, SPG, 4 X 10 |
| 9. | VAMH037137 | [2] | PLUG | KOBPLUG 20 |
| . . | VAMF660068 | [2] | PACKING | KOBGASKET 20 Superseded by part number: VAF420220000 |
| 10A. | VAME041108 | [5] | CAP | KOBSEALING 50 |
| 10B. | VAMH037754 | [1] | CAP | KOBCAP, SEALING 50 |
| 10C. | VAMS666139 | [9] | CAP | KOBCAP, SEALING 30 |
| 10D. | VAMS666142 | [1] | CAP | KOBCAP, SEALING 45 |
| 12. | VAMH007011 | [1] | PIN | KOBPIN, DOWEL, 12 X 34 Superseded by part number: 132324A1 |
| 13. | VAMF665535 | [1] | CAP | KOBCAP, SEALING 18 |
| 14. | VAMH007010 | [1] | PIN | KOBPIN, DOWEL, 12 X 17 |
| 15. | VAMF472404 | [2] | DOWEL | KOBPIN, DOWEL, 8 X 18 Superseded by part number: MF472404 |
| 16. | VAMH037082 | [2] | PLUG PLUG, 6.5 X 8 | PLUG PLUG, 6.5 X 8 |
| 17. | VAME071141 | [1] | BUSHING | KOB1 |
| 18. | VAME071142 | [1] | BUSHING | KOB2 |
| 19. | VAME071143 | [1] | BUSHING | KOB3 |
| 20. | VAME071144 | [1] | BUSHING | KOB4 Superseded by part number: VAME071862 |
| 21. | VAME031087 | [1] | SET OF SCREWS | KOB |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 21A. | VAME031087 | [1] | SET OF SCREWS | KOB |
| 24. | VAME031088 | [1] | PLUG | KOB |
| 25. | VAMS666222 | [1] | PLUG | SMPLUG, TAPER PT3/8 |
