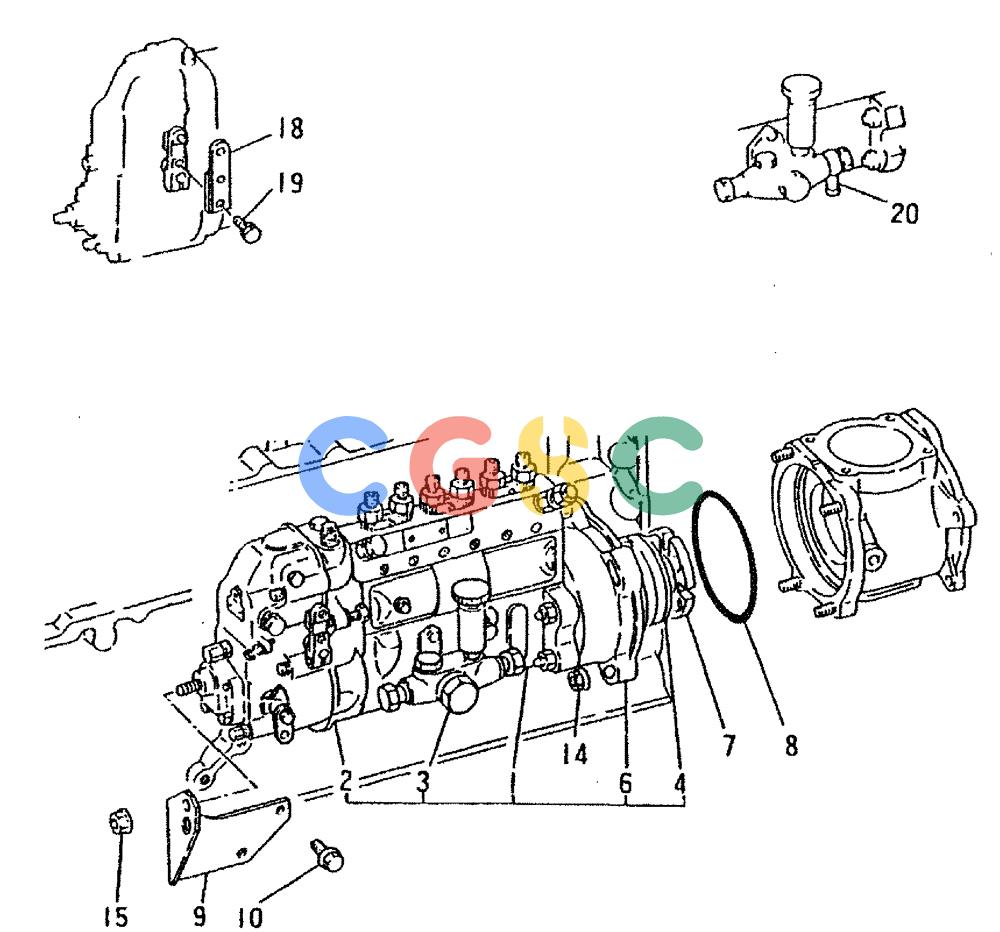

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (03-001) - FUEL INJECTION PUMP GENERAL P/N ME070246 Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
919 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-6. | VAME070246 | [1] | INJECTION PUMP GENERAL ASSY | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONINJECTION PUMP ASSY, A KAI |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONGOVERNOR ASSY, RSV TYPE |
| 3. | VAME032814 | [1] | FEED PUMP | KOBFUEL, KE TYPE, ME032814 Superseded by part number: VAME035928 |
| 4. | VA3186081050 | [1] | TIMER ASSY AUTOMATIC TIMER ASSY, SCZ TYPE | TIMER ASSY AUTOMATIC TIMER ASSY, SCZ TYPE |
| 6. | VAME039698 | [1] | CASE TIMER | CASE TIMER |
| 7. | VAME035679 | [1] | CLUTCH DISC | KOBCLUTCH DISK DRIVING, 3186090300 Superseded by part number: VAME076553 |
| 8. | VAMF520421 | [1] | O-RING | KOBO-RING 125 |
| 9. | VAME070149 | [1] | STAY,I/P | |
| 10. | VAMH000713 | [2] | BOLT | KOBBOLT, FLANGE, 10 X 20 |
| 14. | VAMF434105 | [4] | NUT | KOBNUT, FLANGE 10 |
| 15. | VAMF434105 | [1] | NUT | KOBNUT, FLANGE 10 |
| 18. | VAME039298 | [1] | LEVER GOV | LEVER GOV |
| 19. | VAMF241229 | [2] | BOLT | KOBBOLT, W/WSR, 6 X 25 |
| 20. | VAMH037116 | [1] | FLEXIBLE JOINT | KOBJOINT, SWIVELING 10 |
