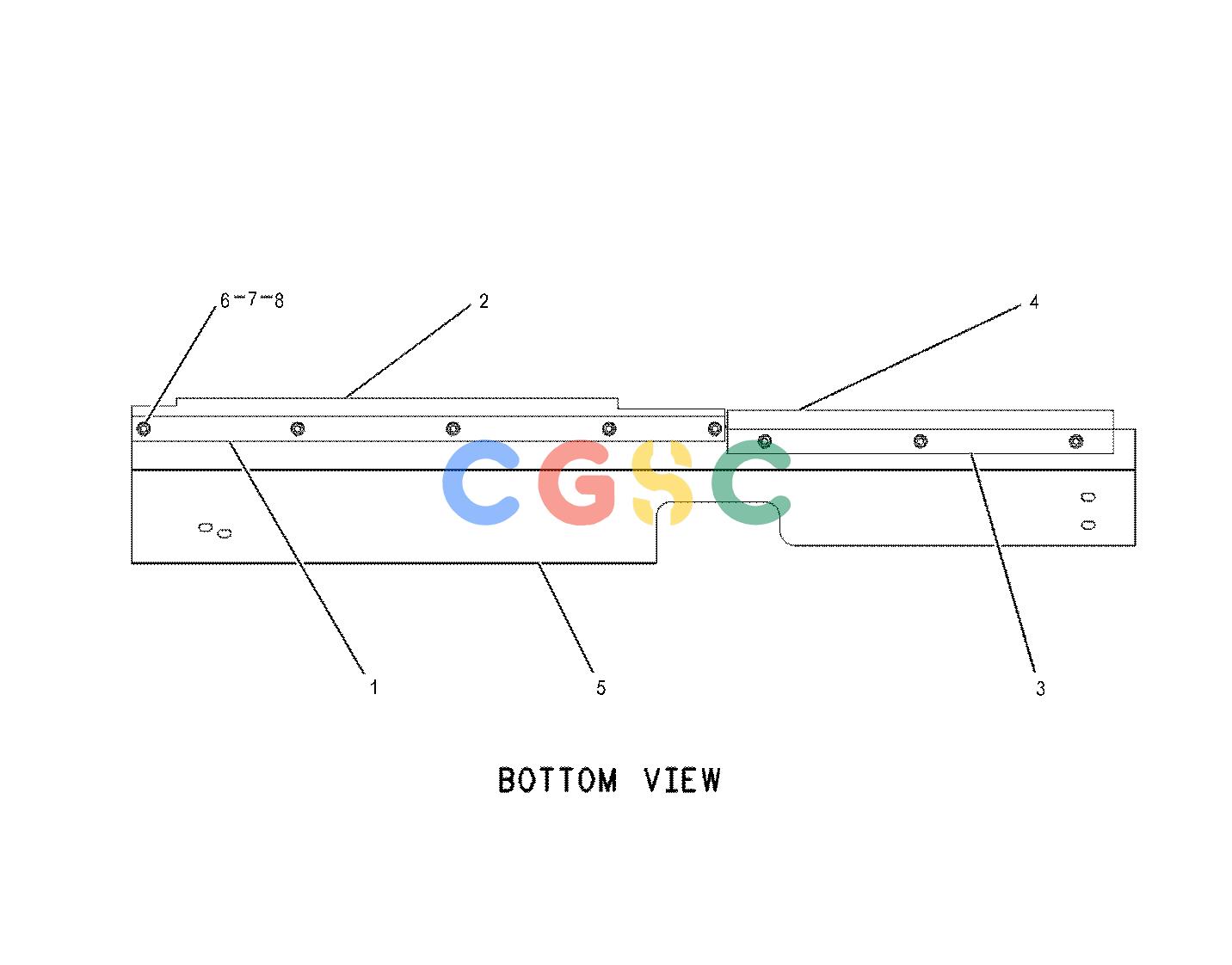

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 171-7100 | [1] | PLATE | |
| 2. | 171-7101 | [1] | SEAL | |
| 3. | 199-5506 | [1] | PLATE | |
| 4. | 199-5507 | [1] | SEAL | |
| 5. | 199-5508 | [1] | PANEL | |
| 6. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 8. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| M | METRIC PART | |||
