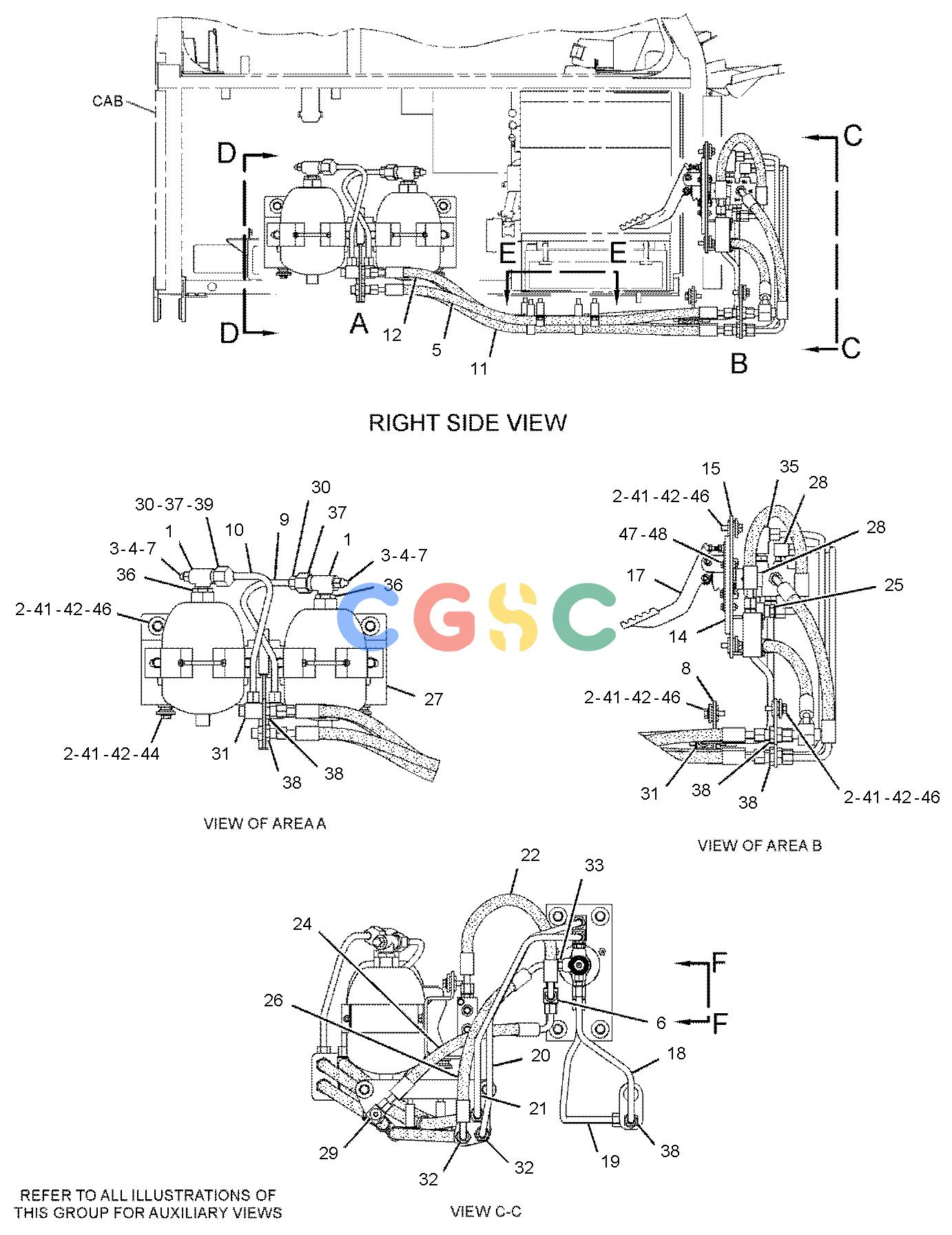

卡特零件查询（725） 245-0982: CONTROL GP-SERVICE BRAKE
广数供应链运营团队, 14 02月, 2025，浏览：
771 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-2345 | [2] | ADAPTER-TEE | |
| 2. | 6N-6984 | [11] | MOUNT-RUBBER | |
| 3. | 9F-2167 | [2] | SCREW-PURGE(3/8-24X1.164-IN) | |
| 4. | 108-8393 | [2] | CAP | |
| 5. | 150-8983I | [1] | HOSE AS | |
| 6. | 164-5586 | [1] | TEE AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 7X-0871 | [1] | TEE | |
| 7. | 169-7403 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6G-3432 | [1] | ADAPTER | |
| 8. | 172-6525 | [1] | PLATE | |
| 9. | 179-4327 | [1] | TUBE AS | |
| 10. | 179-4328 | [1] | TUBE AS | |
| 11. | 243-3044I | [1] | HOSE AS | |
| 12. | 4E-6975I | [1] | HOSE AS | |
| 13. | 179-4339I | [1] | HOSE AS | |
| 14. | 180-8145 | [1] | SEAL | |
| 15. | 200-8473 | [1] | PLATE AS | |
| 16. | 217-7744 | [1] | PLATE | |
| 17. | 224-3207 | [1] | VALVE GP-BRAKE CONTROL(SERVICE) | |
| | 204-0281J | [1] | PEDAL GP-BRAKE(SERVICE) | |
| | 224-3209L | [1] | VALVE GP-BRAKE(SERVICE) | |
| 18. | 224-5041 | [1] | TUBE AS | |
| 19. | 224-5042 | [1] | TUBE AS | |
| 20. | 224-5043 | [1] | TUBE AS | |
| 21. | 224-5044 | [1] | TUBE AS | |
| 22. | 230-3007I | [1] | HOSE AS | |
| 23. | 230-3008 | [1] | MANIFOLD | |
| 24. | 171-4764CI | [1] | HOSE AS | |
| 25. | 230-3379 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 26. | 230-5303I | [1] | HOSE AS | |
| 27. | 245-1029Y | [1] | ACCUMULATOR & MTG GP-BRAKE(SERVICE) | |
| 28. | 148-8365 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-6876 | [1] | ELBOW | |
| 29. | 162-8264C | [1] | TEE AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 081-5645 | [1] | TEE | |
| 30. | 148-8418 | [2] | REDUCER AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8942 | [1] | REDUCER-O-RING | |
| 31. | 148-8427 | [3] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [3] | SEAL-O-RING | |
| | 8T-6895 | [1] | TEE-UNION | |
| 32. | 148-8457C | [6] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 33. | 150-4043 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9873 | [1] | CONNECTOR | |
| 34. | 153-6258 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-5050 | [1] | CONNECTOR | |
| 35. | 174-3181 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-7521 | [1] | ELBOW | |
| 36. | 3D-2824 | [2] | SEAL-O-RING | |
| 37. | 9X-6580 | [2] | NUT(1-3/16-12-THD) | |
| 38. | 6V-9169 | [9] | NUT(13/16-16-THD) | |
| 39. | 6V-9746 | [2] | SEAL-O-RING | |
| 40. | 7X-2535M | [2] | BOLT(M6X1X60-MM) | |
| 41. | 8M-4069 | [11] | WASHER(10.3X38.1X5-MM THK) | |
| 42. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 43. | 8T-4185M | [3] | BOLT(M10X1.5X50-MM) | |
| 44. | 8T-4186M | [2] | BOLT(M10X1.5X40-MM) | |
| 45. | 8T-5005M | [2] | BOLT(M10X1.5X70-MM) | |
| 46. | 8T-4196M | [9] | BOLT(M10X1.5X35-MM) | |
| 47. | 8T-4205 | [5] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 48. | 8T-4971M | [3] | BOLT(M6X1X30-MM) | |
| 49. | 9X-8250 | [6] | CLIP | |
| 50. | 141-3983 | [2] | SPACER(11X19X48-MM THK) | |
| 51. | 249-4738 | [3] | SPACER(11X20X32-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 204-0275J | [1] | KIT-REPAIR(BRAKE PEDAL) | |
| | | | (ALSO INCLUDES BUSHING, BEARING & SPRING CLIP) |
| | 4E-5550L | [1] | KIT-SEAL(BRAKE) | |
| | | | (ALSO INCLUDES SEALS) |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
