| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

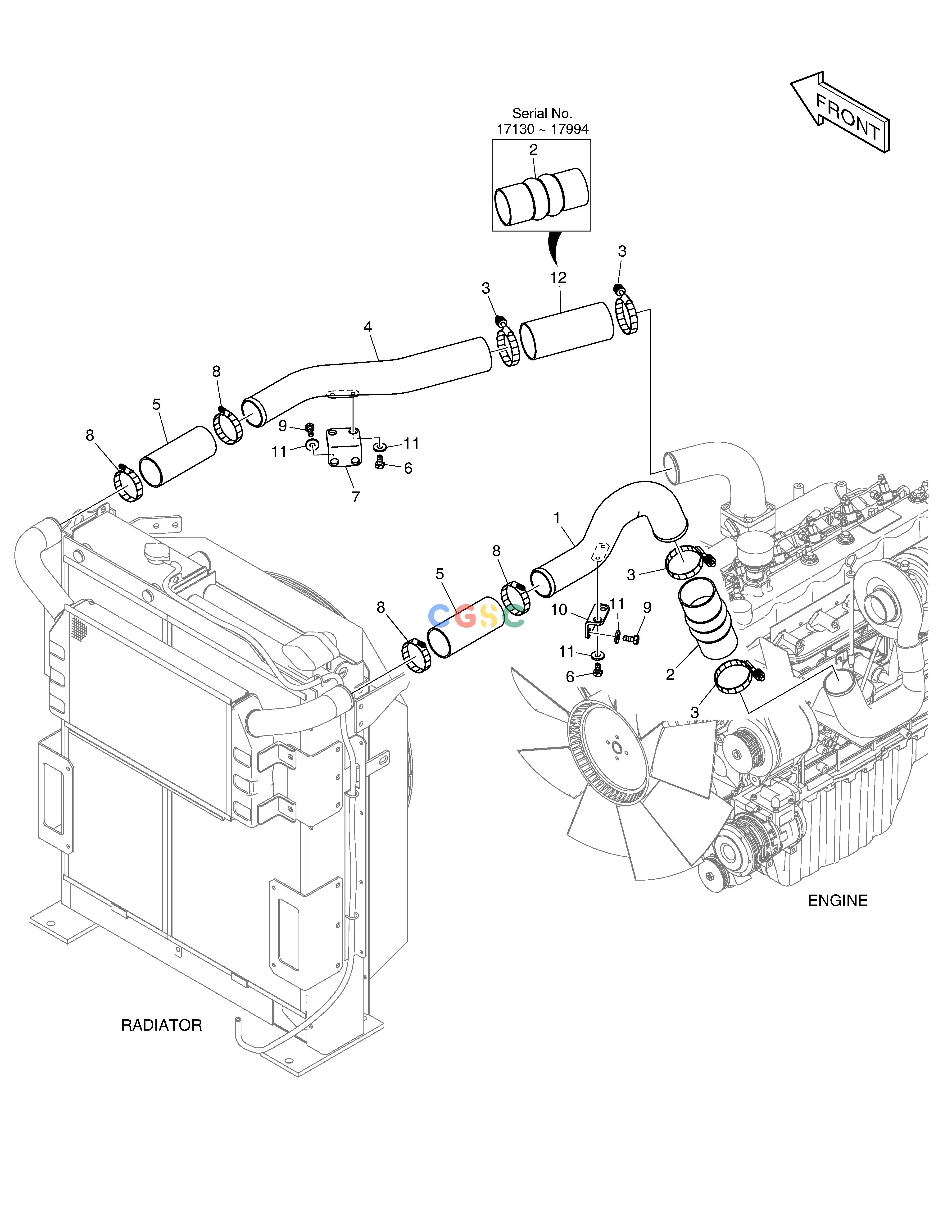

| -. | K1046072 | [-] | CAC PIPING | |
| 1. | K1012144 | [1] | PIPE | |
| 10. | K1012143 | [1] | BRACKET | |
| 11. | 120804-00078 | [1] | WASHER | |
| 12. | 420101-01450 | [1] | ||
| 2. | K1038559 | [1] | HOSE;CAC | |
| 2. | K1038559 | [2] | HOSE;CAC | |
| 3. | S8500092 | [4] | CLAMP;HOSE | |
| 4. | K1006778B | [1] | PIPE | |
| 5. | K1045910 | [2] | HOSE;CAC | |
| 6. | S0511866 | [4] | BOLT | |
| 7. | K1000663 | [1] | BRACKET | |
| 8. | S8500079 | [4] | CLAMP | |
| 9. | S0512066 | [4] | . BOLT |
