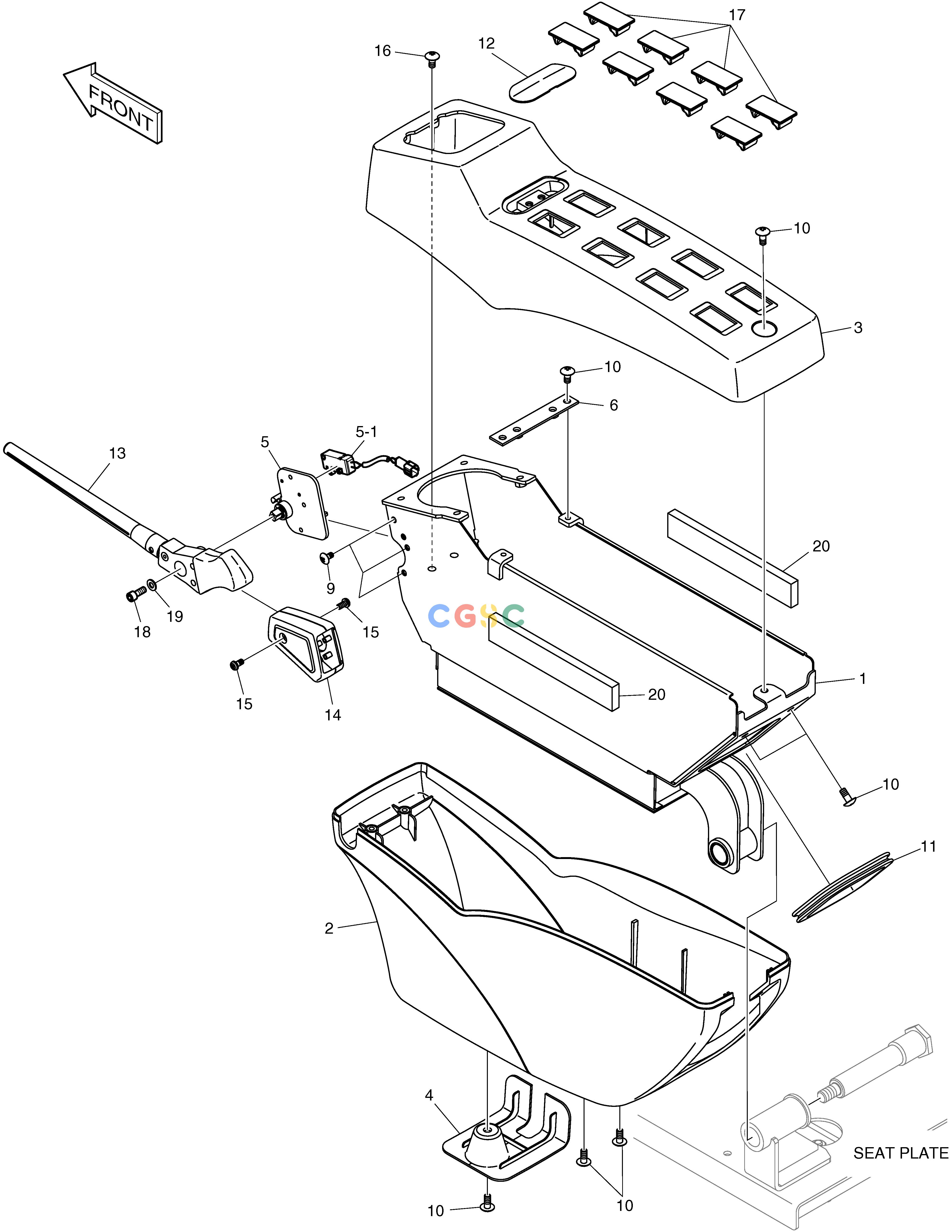

斗山零件查询CONTROL STAND - L.H. DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
620 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220111-00022B
|
[-] |
|
|
| 1. |
110431-00132
|
[1] |
BRACKET,STAND
|
|
| 10. |
2120-2166D10
|
[10] |
SCREW
|
|
| 11. |
K1001023
|
[1] |
STRIP,WEATHER
|
|
| 12. |
220204-00283
|
[1] |
COVER,STAND
|
|
| 13. |
101101-00289
|
[1] |
LEVER
|
|
| 14. |
110508-15900
|
[1] |
COVER
|
|
| 15. |
S3450823
|
[2] |
SCREW
|
|
| 16. |
2120-2166D52
|
[2] |
. BOLT
|
|
| 17. |
621-02801
|
[8] |
COVER,SWITCH
|
|
| 18. |
S2202966
|
[1] |
BOLT;SOCKET
|
|
| 19. |
2114-1898D4
|
[1] |
WASHER
|
|
| 2. |
220204-00282
|
[1] |
COVER,STAND
|
|
| 20. |
180102-00908
|
[2] |
FOAM
|
|
| 3. |
220204-00099A
|
[1] |
COVER,STAND
|
|
| 4. |
220204-00281
|
[1] |
COVER,STAND
|
|
| 5. |
195-02868C
|
[1] |
BRACKET,SAFETY
|
|
| 5-1. |
549-00089
|
[1] |
. SWITCH,MICRO
|
|
| 6. |
621-02957B
|
[1] |
PLATE,STAND MOUNT
|
|
| 9. |
2120-2166D53
|
[3] |
. SCREW
|
|
