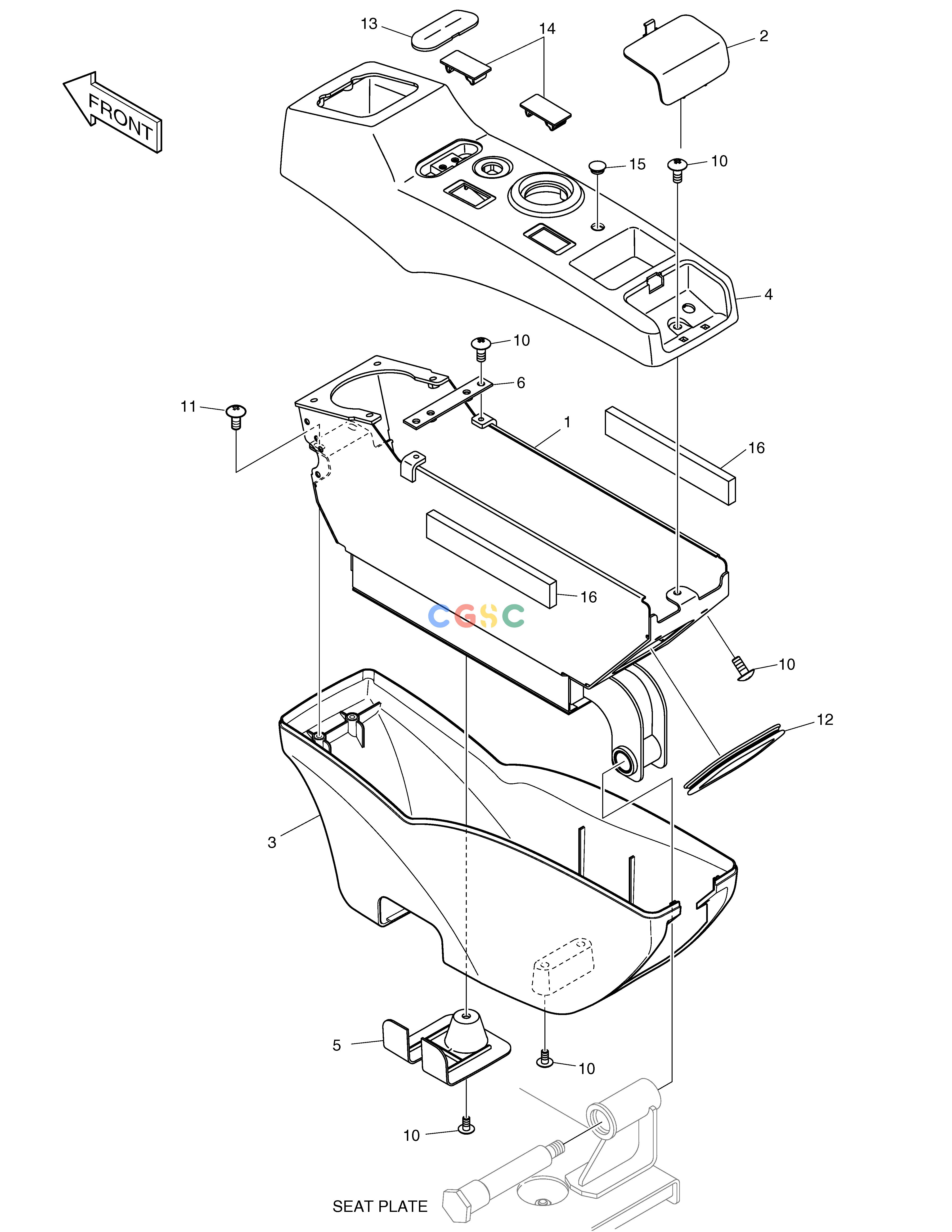

斗山零件查询CONTROL STAND - R.H. DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
204 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220111-00077
|
[-] |
STAND ASSY,CONTROL;RH
|
|
| 1. |
110431-00130
|
[1] |
BRACKET,STAND(R.H)
|
|
| 10. |
2120-2166D10
|
[10] |
SCREW
|
|
| 11. |
2120-2166D52
|
[2] |
. BOLT
|
|
| 12. |
K1001023
|
[1] |
STRIP,WEATHER
|
|
| 13. |
220204-00283
|
[1] |
COVER,STAND
|
|
| 14. |
621-02801
|
[2] |
COVER,SWITCH
|
|
| 15. |
K1006995
|
[1] |
CAP
|
|
| 16. |
180102-00908
|
[2] |
FOAM
|
|
| 2. |
110508-15901
|
[1] |
COVER,SWITCH(R.H)
|
|
| 3. |
220204-00280
|
[1] |
COVER,STAND
|
|
| 4. |
110508-00834A
|
[1] |
COVER
|
|
| 5. |
220204-00281
|
[1] |
COVER,STAND
|
|
| 6. |
621-02957B
|
[1] |
PLATE,STAND MOUNT
|
|
