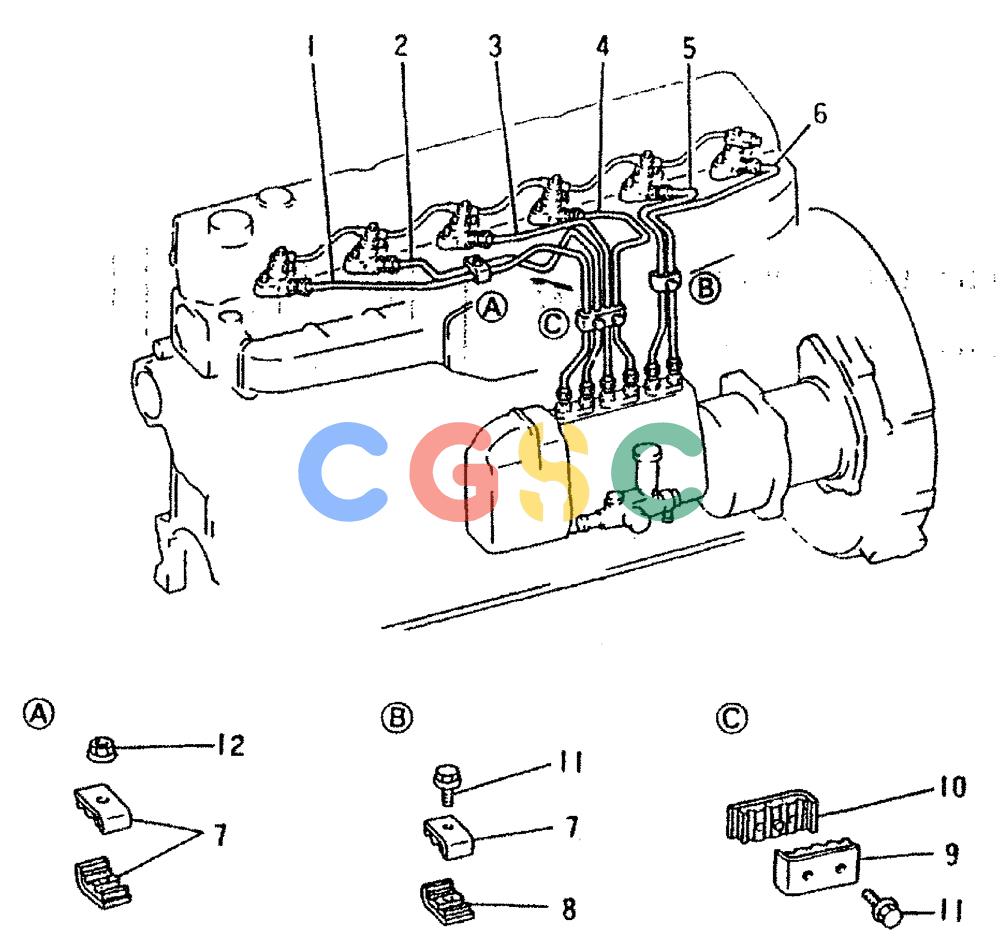

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (03-014) - FUEL INJECTION PIPE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
393 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME070831 | [1] | INJECTION PIPE | KOB |
| 2. | VAME070832 | [1] | INJECTION PIPE | KOB |
| 3. | VAME070833 | [1] | INJECTION PIPE | KOB |
| 4. | VAME070834 | [1] | INJECTION PIPE | KOB |
| 5. | VAME070835 | [1] | INJECTION PIPE | KOB |
| 6. | VAME070836 | [1] | INJECTION PIPE | KOB |
| 7. | VAMH020258 | [3] | CLAMP | KOBCLAMP Superseded by part number: 134717A1 |
| 8. | VAMH020259 | [1] | CLAMP | KOBCLAMP Superseded by part number: 134718A1 |
| 9. | VAMH020260 | [1] | CLAMP | KOBCLAMP |
| 10. | VAMH021252 | [1] | CLAMP | KOBCLAMP |
| 11. | VAMF240029 | [3] | SCREW | KOBBOLT, W/WSR, 6 X 25 |
| 12. | VAMF434103 | [1] | NUT | KOBNUT, FLANGE 6 |
