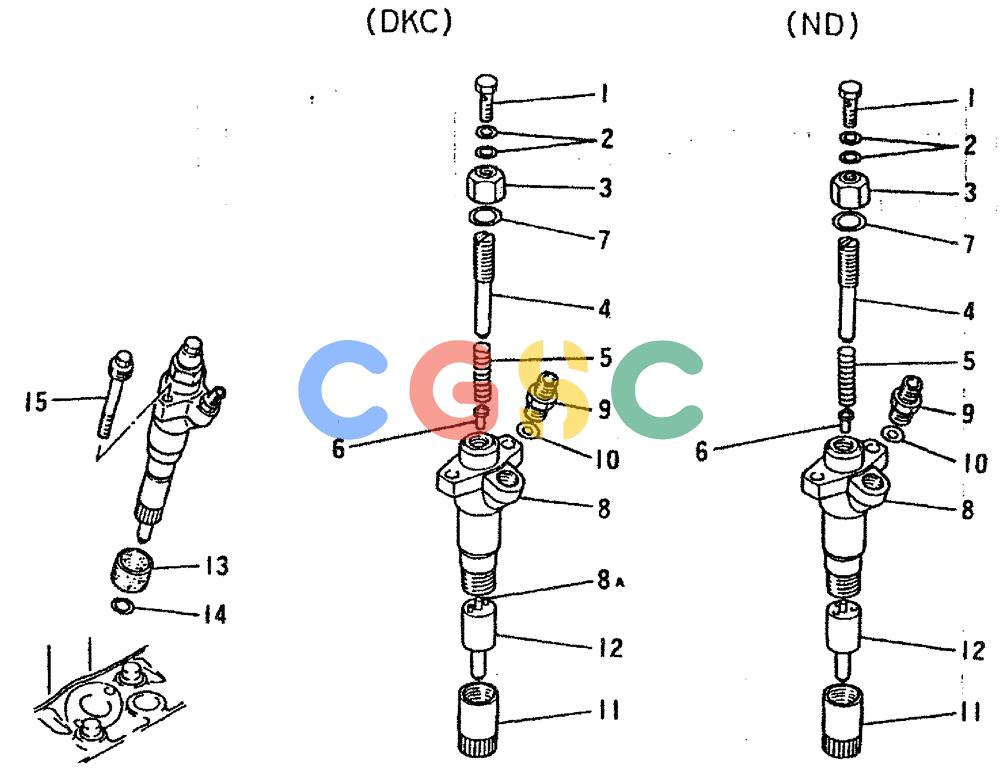

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (03-016) - FUEL INJECTION NOZZLE P/N ME036780 Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
677 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-12. | VAME036780 | [6] | NOZZLE | KOB220KG/CM2 |
| 1-11. | VAME036561 | [6] | NOZZLE HOLDER ASSY | |
| 1. | VAME705400 | [6] | SCREW | KOBEYE Superseded by part number: 77270082, 134650A1 |
| 2. | VAME705389 | [12] | PACKING | KOB Superseded by part number: 134686A1 |
| 3. | VAME705403 | [6] | NUT | KOBCAP |
| 4. | VAME705408 | [6] | SCREW | KOBSCREW, ADJUSTING |
| 5. | VAME705405 | [6] | SPRING NOZZLE | SPRING NOZZLE |
| 6. | VAME705406 | [6] | PUSH ROD | KOB Superseded by part number: 134708A1 |
| 7. | VAME705391 | [6] | GASKET | KOB Superseded by part number: 134652A1 |
| 6. | NSS | [6] | NOT SOLD SEPARAT | CONBODY, NOZZLE HOLDER |
| 8A. | VAME705407 | [12] | PIN | KOB Superseded by part number: 77270085, 134711A1 |
| 9. | VAME705401 | [6] | HYD CONNECTOR | KOBINLET |
| 10. | VAME705390 | [6] | GASKET | KOB Superseded by part number: VA0293005070 |
| 11. | VAME705402 | [6] | NUT | KOBNUT, RETAINING |
| 12. | VAME036781 | [6] | NOZZLE | KOBTIP, 0.29-5 |
| 1-12. | VAME036748 | [6] | NOZZLE | KOB220KG/CM2, ND |
| 1-11. | VAME036571 | [6] | NOZZLE HOLDER ASSY, ND | |
| 1. | VA9491800152 | [6] | SCREW, HOLLOW, ND | |
| 2. | VAME022309 | [6] | WASHER, NIPPLE, ND | |
| 3. | VAME703618 | [6] | NUT | KOBNUT, CAP, ND |
| 4. | VAME703617 | [6] | SCREW, ADJUSTING, ND | |
| 5. | VAME703616 | [6] | SPRING, PRESS, ND | |
| 6. | VAME703615 | [6] | PIN, PRESS, ND | |
| 7. | VAME022312 | [6] | WASHER, ND | |
| 8. | NSS | [6] | NOT SOLD SEPARAT | CONBODY, NOZZLE HOLDER, ND |
| 9. | VA0931510280 | [6] | CONNECTOR, INLET, ND | |
| 10. | VAMM500889 | [6] | GASKET | |
| 11. | VAME703619 | [6] | NUT, RETAINING | |
| 12. | VAME036749 | [6] | NOZZLE | KOB0.29-5 |
| 13. | VAME036562 | [6] | DUST CAP | KOB |
| 14. | VA3096102300 | [6] | O-RING | KOBGASKET, NOZZLE TIP |
| 15. | VAMH000656 | [12] | SET SCREW | KOBBOLT, NOZZLE HOLDER |
