神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (03-017) - FUEL INJECTION NOZZLE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
864 次

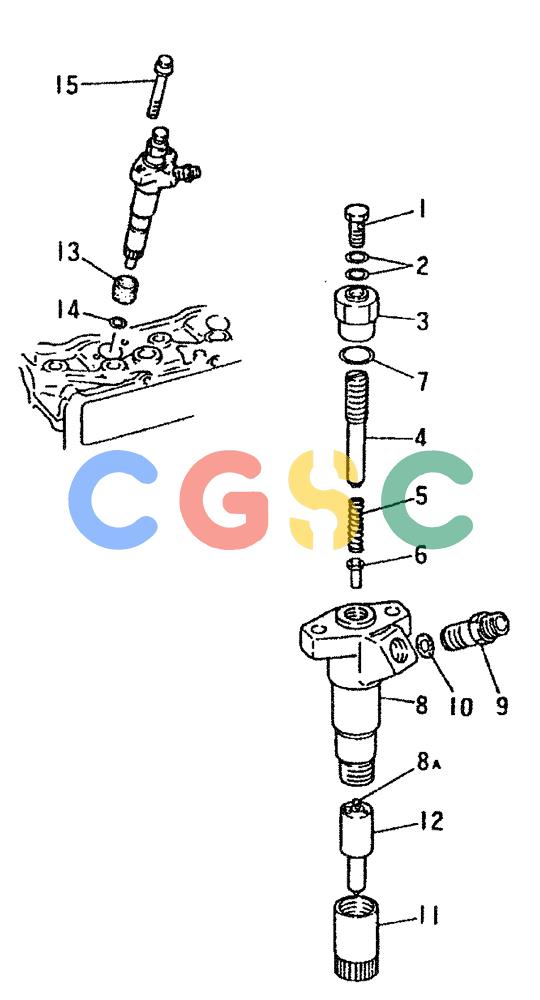

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-12. | VAME047437 | [6] | NOZZLE ASSY, 180KG/CM2, M7 ONLY | |
| . . | VAME070762 | [6] | NOZZLE | KOB180KG/CH2, M9 ONLY |
| 1-11. | VAME705437 | [6] | NOZZLE HOLDER ASSY | |
| 1. | VAME705400 | [6] | SCREW | KOBEYE Superseded by part number: 77270082, 134650A1 |
| 2. | VAME705389 | [12] | PACKING | KOB Superseded by part number: 134686A1 |
| 3. | VAME705403 | [6] | NUT | KOBCAP |
| 4. | VAME705404 | [6] | SCREW ADJUS | SCREW ADJUS |
| 5. | VAME705409 | [6] | SPRING | KOB Superseded by part number: 133275A1 |
| 6. | VAME705406 | [6] | PUSH ROD | KOB Superseded by part number: 134708A1 |
| 7. | VAME705391 | [6] | GASKET | KOB Superseded by part number: 134652A1 |
| 8. | NSS | [6] | NOT SOLD SEPARAT | CONBODY, NOZZLE HOLDER |
| 8A. | VAME705407 | [6] | PIN | KOB Superseded by part number: 77270085, 134711A1 |
| 9. | VAME705426 | [12] | HYD CONNECTOR | KOBINLET |
| 10. | VAME705425 | [6] | GASKET | KOB Superseded by part number: VA1506022700 |
| 11. | VAME705402 | [6] | NUT | KOBNUT, RETAINING |
| 12. | VAME047129 | [6] | TIP | KOB0.31-5, M7 ONLY |
| . . | VAME723943 | [6] | NOZZLE | KOB0.31-5, M9 ONLY |
| 13. | VAME036562 | [6] | DUST CAP | KOB |
| 14. | VA3096102300 | [6] | O-RING | KOBGASKET, NOZZLE TIP |
| 15. | VAMH000656 | [12] | SET SCREW | KOBBOLT, NOZZLE HOLDER |
