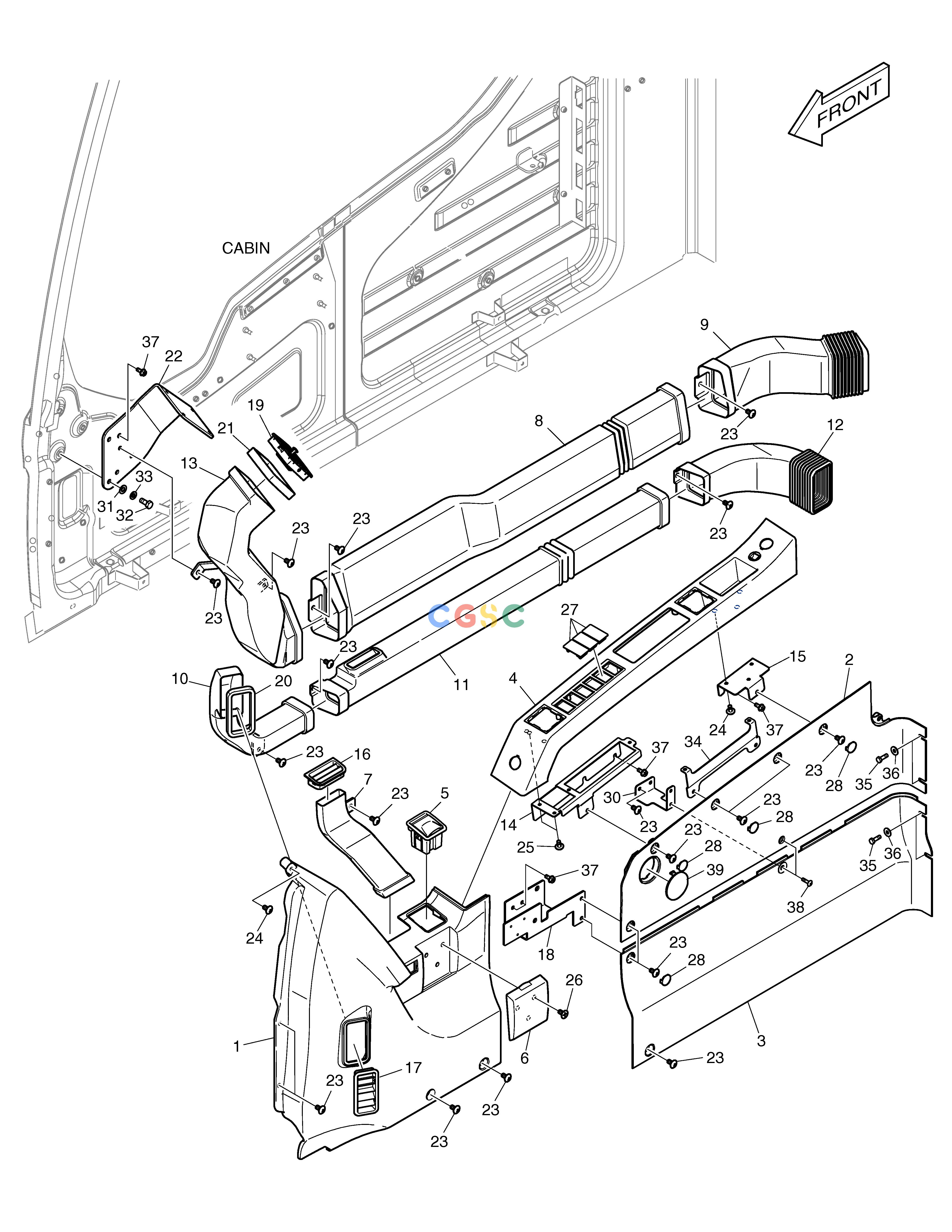

斗山零件查询DUCT COVER DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
752 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110517-00368B
|
[-] |
|
|
| 1. |
110517-00797
|
[1] |
COVER,SIDE;FRONT
|
|
| 10. |
460103-00810
|
[1] |
DUCT,DEFROST;FRONT
|
|
| 11. |
460103-00826
|
[1] |
DUCT,DEFROST
|
|
| 12. |
460103-00827
|
[1] |
DUCT,DEFROST
|
|
| 13. |
460103-00815
|
[1] |
DUCT,FRONT
|
|
| 14. |
195-02768E
|
[1] |
BRACKET,SWITCH
|
|
| 15. |
195-02769E
|
[1] |
BRACKET,SWITCH
|
|
| 16. |
101546-00012
|
[1] |
LOUVER
|
|
| 17. |
101546-00013
|
[1] |
LOUVER
|
|
| 18. |
195-02770E
|
[1] |
BRACKET;CUP
|
|
| 19. |
101546-00014
|
[1] |
LOUVER
|
|
| 2. |
110517-00364A
|
[1] |
COVER,SIDE
|
|
| 20. |
180102-00913
|
[1] |
FOAM
|
|
| 21. |
180102-00914
|
[1] |
|
|
| 22. |
K1039212C
|
[1] |
BRACKET;MONITOR
|
|
| 23. |
2120-2166D52
|
[22] |
. BOLT
|
|
| 24. |
2120-2166D53
|
[4] |
. SCREW
|
|
| 25. |
S3654523
|
[4] |
SCREW
|
|
| 26. |
2120-2166D23
|
[3] |
SCREW
|
|
| 27. |
621-02801
|
[3] |
COVER,SWITCH
|
|
| 28. |
110508-19911
|
[6] |
|
|
| 3. |
110517-00801
|
[1] |
COVER,SIDE
|
|
| 30. |
K1005007A
|
[1] |
PLATE
|
|
| 31. |
2114-1898D14
|
[3] |
WASHER
|
|
| 32. |
2120-2166D5
|
[3] |
BOLT
|
|
| 33. |
2114-2031D4
|
[3] |
WASHER
|
|
| 34. |
K1009627
|
[1] |
PLATE
|
|
| 35. |
2120-2166D36
|
[4] |
BOLT
|
|
| 36. |
2114-1898D5
|
[4] |
WASHER
|
|
| 37. |
K1010304
|
[8] |
BOLT
|
|
| 38. |
2120-2166D57
|
[2] |
BOLT
|
|
| 39. |
110910-00265A
|
[1] |
|
|
| 4. |
110508-15869
|
[1] |
COVER,SWITCH
|
|
| 5. |
220201-00002
|
[1] |
ASHTRAY;ASM
|
|
| 6. |
110929-00007
|
[1] |
HOLDER,CUP
|
|
| 7. |
460103-00803
|
[1] |
DUCT,DEFROST
|
|
| 8. |
460103-00824
|
[1] |
DUCT,MID
|
|
| 9. |
460103-00825
|
[1] |
DUCT,FACE
|
|
