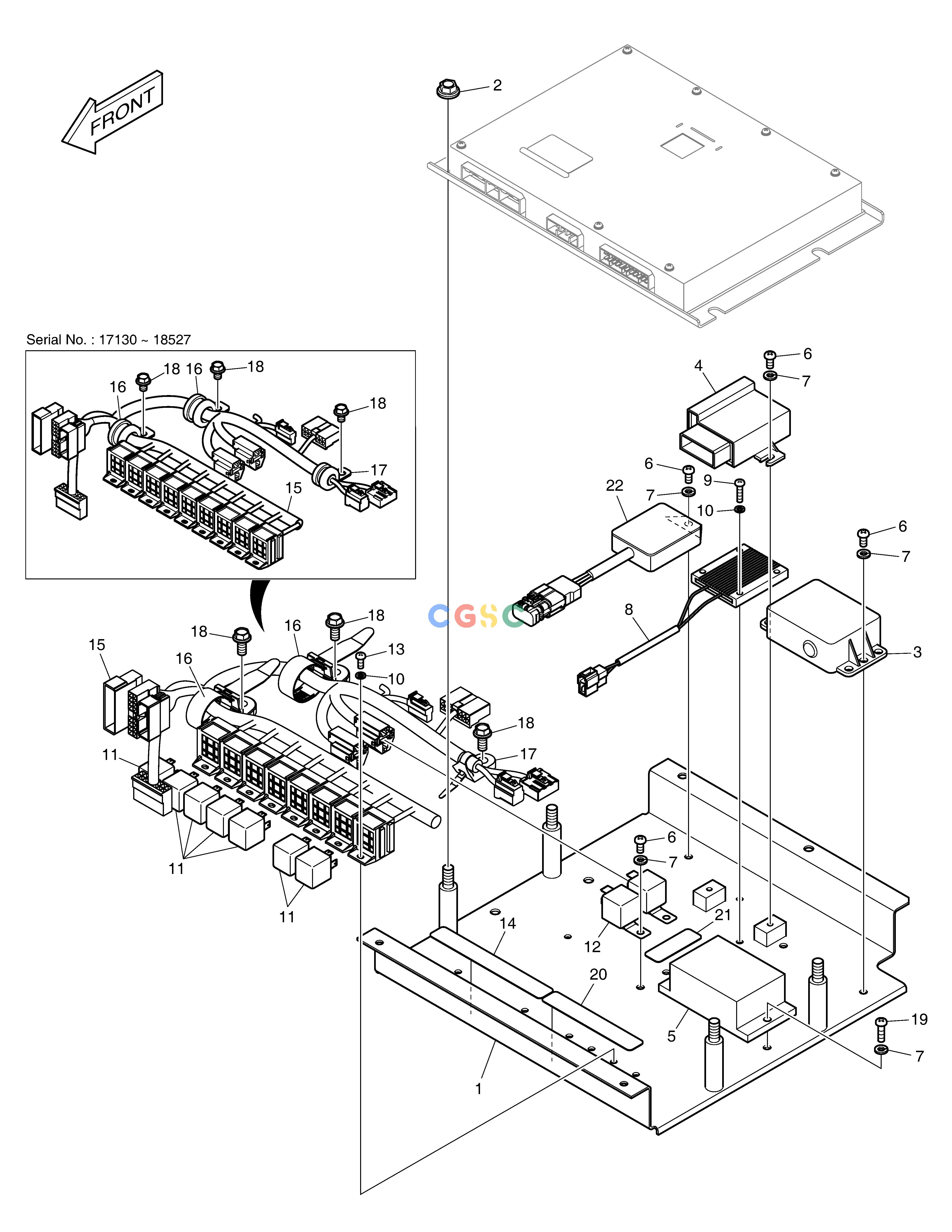

斗山零件查询ELECTRIC BOX ASS'Y DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
185 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02577B
|
[-] |
|
|
| -. |
300619-02577C
|
[-] |
|
|
| 1. |
250201-02886
|
[1] |
|
|
| 10. |
S5100203
|
[6] |
WASHER
|
|
| 11. |
2544-9033
|
[7] |
RELAY
|
|
| 12. |
301202-00042
|
[2] |
RELAY
|
|
| 13. |
S3450833
|
[4] |
BOLT
|
|
| 14. |
190-01192D24
|
[1] |
|
|
| 15. |
310207-03171B
|
[1] |
|
310207-03171C
|
| 15. |
310207-03171C
|
[1] |
|
|
| 16. |
124-00208D3
|
[2] |
CLIP
|
|
| 16. |
120402-00439
|
[2] |
CLIP
|
|
| 17. |
124-00208D2
|
[1] |
CLAMP
|
|
| 17. |
120402-00440
|
[1] |
CLIP
|
|
| 18. |
K1001029
|
[3] |
BOLT
|
|
| 18. |
120106-00596
|
[3] |
BOLT
|
|
| 19. |
S3450973
|
[2] |
SCREW M6X1.0X16
|
|
| 2. |
D913109
|
[4] |
|
|
| 20. |
950209-05929
|
[1] |
|
|
| 21. |
190-01192D26
|
[1] |
|
|
| 22. |
300619-02309A
|
[1] |
ELECTRIC UNIT,TIME DELAY
|
|
| 3. |
300611-00704
|
[1] |
CONTROLLER,STARTER
|
|
| 4. |
300611-00271A
|
[1] |
CONTROLLER,WIPER
|
|
| 5. |
300612-00001B
|
[1] |
|
|
| 6. |
S3450953
|
[7] |
SCREW
|
|
| 7. |
S5102303
|
[9] |
. WASHER
|
|
| 8. |
545-00011
|
[1] |
RESISTOR,AUXILIARY
|
|
| 9. |
S3450863
|
[2] |
SCREW
|
|
