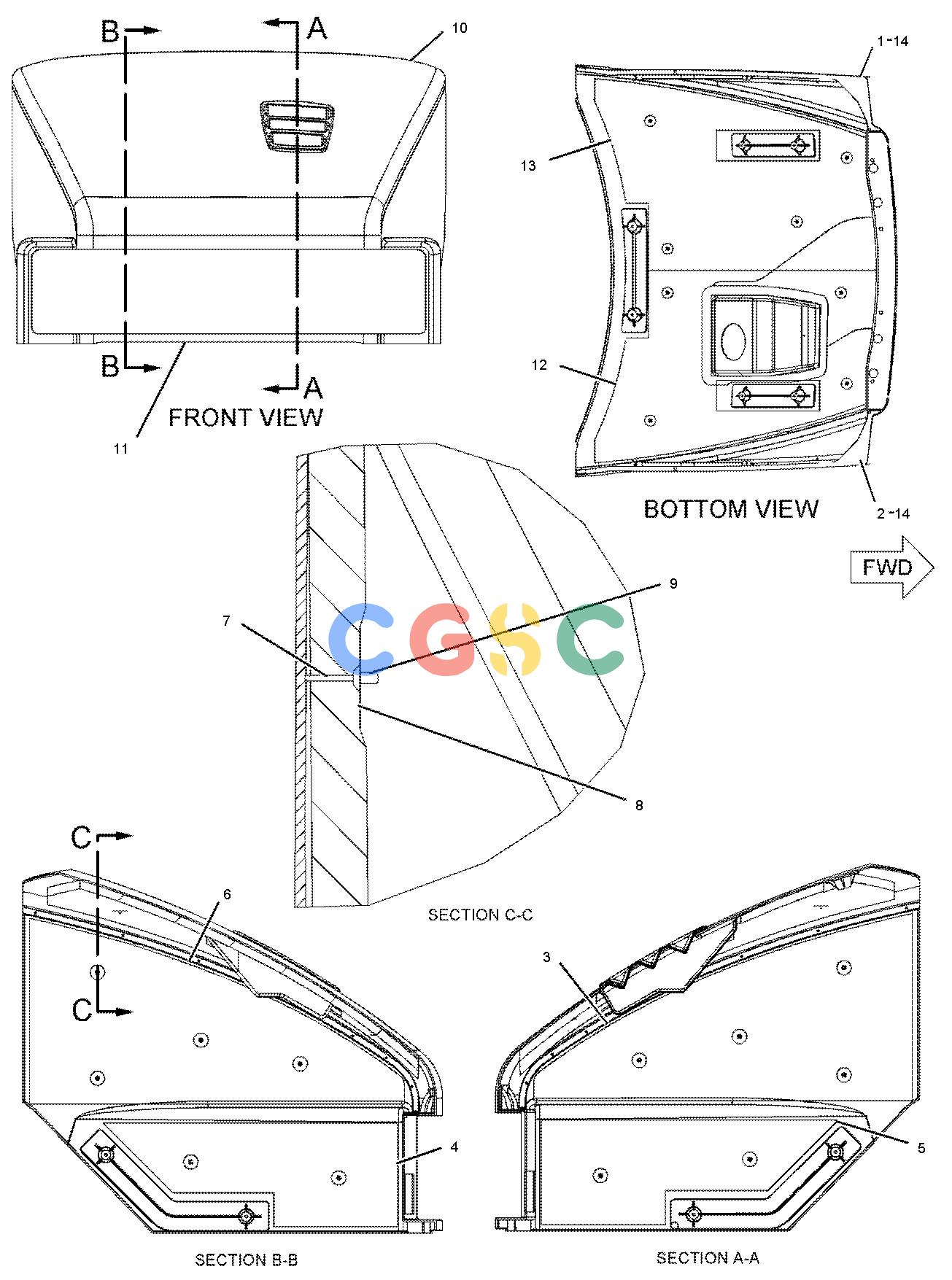

卡特零件查询（725） 234-5654: HOOD GP-ENGINE
广数供应链运营团队, 14 02月, 2025，浏览：
745 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 180-6971 | [1] | PANEL AS(RH) | |
| 2. | 180-6974 | [1] | PANEL AS(LH) | |
| 3. | 198-7203 | [1] | INSULATION(SOUND SUPPRESSION) | |
| 4. | 198-7204 | [1] | INSULATION(SOUND SUPPRESSION) | |
| 5. | 199-3024 | [1] | INSULATION(SOUND SUPPRESSION) | |
| 6. | 199-3025 | [1] | INSULATION(SOUND SUPPRESSION) | |
| 7. | 202-7837 | [20] | SUPPORT | |
| 8. | 202-7838 | [20] | RETAINER | |
| 9. | 202-7839 | [20] | FASTENER | |
| 10. | 234-5653 | [1] | PANEL AS(TOP) | |
| | 225-8730 | [1] | COVER AS | |
| | 234-5563 | [1] | DUCT | |
| | 2U-2453 | [6] | WASHER(5.6X12.6X1.22-MM THK) | |
| | 5C-2874M | [6] | NUT(M5X0.8-THD) | |
| 11. | 235-9702 | [1] | EDGE | |
| 12. | 236-5302 | [1] | INSULATION(SOUND SUPPRESSION) | |
| 13. | 236-5303 | [1] | INSULATION(SOUND SUPPRESSION) | |
| 14. | 7K-3434 | [14] | SCREW-TAPPING(6-20X0.75-IN) | |
| | M | | METRIC PART |
