斗山零件查询ELECTRIC PARTS - RELATED DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
124 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

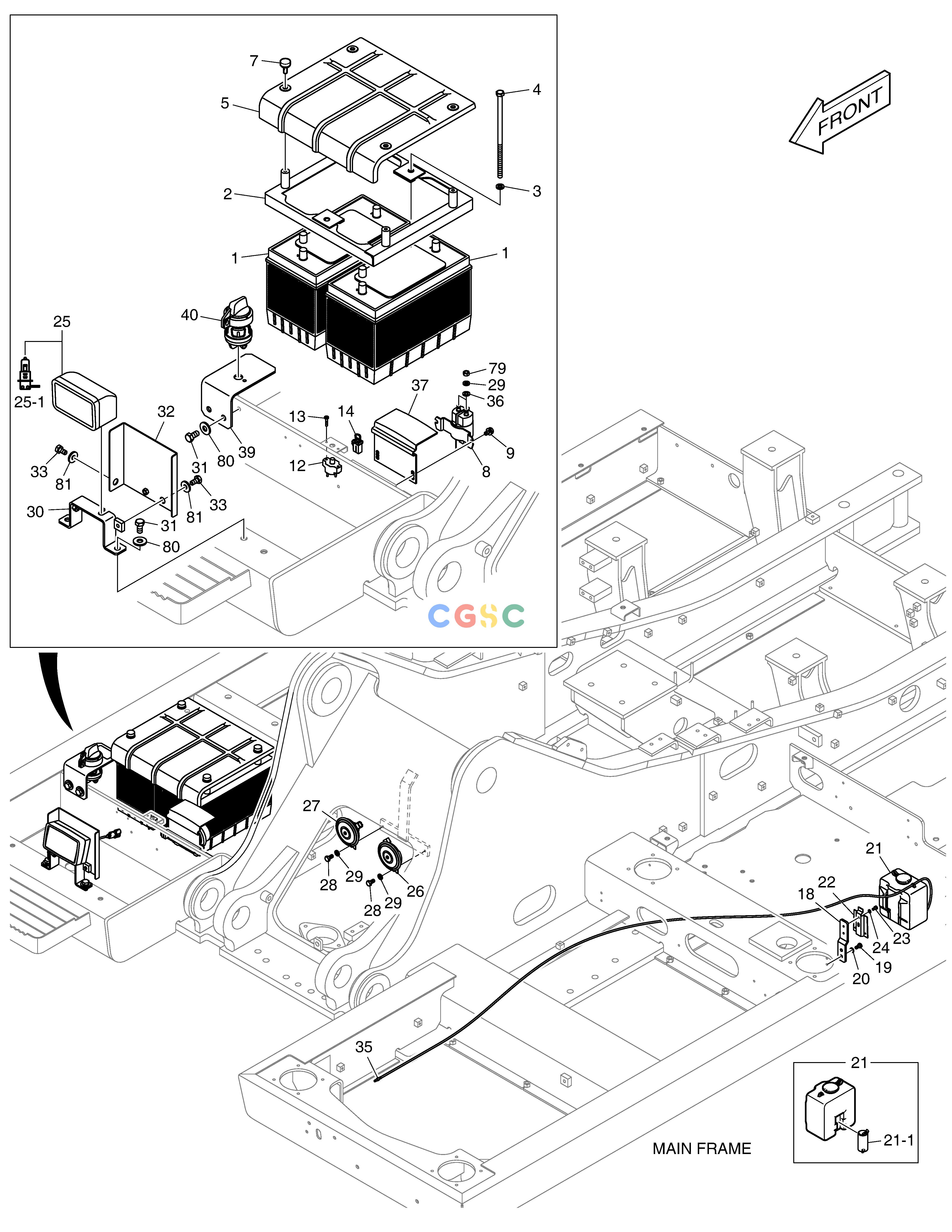

K1046733A
|
[-] |
ELECTRIC PARTS;CHASSIS
|
|
| 1. |
2506-1104
|
[2] |
BATTERY
|
|
| 12. |
2527-9004
|
[1] |
BREAKER;CIRCUIT
|
|
| 13. |
2120-1354
|
[2] |
SCREW
|
|
| 14. |
2527-1023A
|
[1] |
LINK,FUSIBLE
|
|
| 18. |
K1007668
|
[1] |
BRACKET
|
|
| 19. |
S0508666
|
[2] |
BOLT
|
|
| 2. |
K1039521A
|
[1] |
BRACKET
|
|
| 20. |
S5102503
|
[2] |
. WASHER
|
|
| 21. |
450108-00006
|
[1] |
TANK;RESERVE
|
|
| 21-1. |
K9009874
|
[1] |
. MOTOR,RESERVE TANK
|
|
| 22. |
2195-1534
|
[1] |
BRACKET
|
|
| 23. |
S0504453
|
[2] |
BOLT
|
|
| 24. |
S5102303
|
[2] |
. WASHER
|
|
| 25. |
K1055454
|
[2] |
|
|
| 25-1. |
2515-1016D4
|
[1] |
. BULB,HALOGEN
|
|
| 26. |
300726-00002
|
[1] |
HORN,HIGH
|
|
| 27. |
300726-00003
|
[1] |
HORN,LOW
|
|
| 28. |
S0508666
|
[2] |
BOLT
|
|
| 29. |
S5102503
|
[4] |
. WASHER
|
|
| 3. |
S5102603
|
[2] |
. WASHER
|
|
| 30. |
110406-01352
|
[1] |
|
|
| 31. |
S0515066
|
[4] |
BOLT
|
|
| 32. |
621-02643C
|
[1] |
PLATE
|
|
| 33. |
S0511866
|
[2] |
BOLT
|
|
| 35. |
2415-1018
|
[1] |
ADAPTER
|
|
| 36. |
S5010513
|
[2] |
WASHER
|
|
| 37. |
110508-04839
|
[1] |
COVER,RELAY
|
|
| 39. |
110406-00608
|
[1] |
|
|
| 4. |
DS0001079
|
[2] |
BOLT
|
|
| 40. |
K1057605
|
[1] |
|
|
| 5. |
K1039068
|
[1] |
COVER
|
|
| 7. |
K1003427
|
[4] |
BOLT
|
|
| 79. |
S4012533
|
[2] |
NUT
|
|
| 8. |
301202-00153
|
[1] |
RELAY,BATTERY
|
|
| 80. |
120804-00079
|
[4] |
WASHER
|
|
| 81. |
120804-00078
|
[2] |
WASHER
|
|
| 9. |
DS0025044
|
[2] |
BOLT
|
|
